Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

3rd Row Seat Back Cover and Pad (1) - Install
Courtesy of GENERAL MOTORS COMPANY

3rd Row Seat Head Restraint Guide (1) - Install
Courtesy of GENERAL MOTORS COMPANY

3rd Row Seat Head Restraint (2) - Install
Courtesy of GENERAL MOTORS COMPANY

Install the 3rd row seat head restraint cable (2).
Close the 3rd row seat head restraint cable cover (1).
Position the seat back cover and pad to the original location.
Engage the J-channel retainers.

NOTE:

Hold both sides of the cover together while pulling straight down on the zipper.

Zip the left and right seat back cover zippers.
Courtesy of GENERAL MOTORS COMPANY

{If equipped} Feed the 3rd row seat pull strap through the bezel (1) to install.
{If equipped} 3rd Row Seat Back Latch Release Handle Bezel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

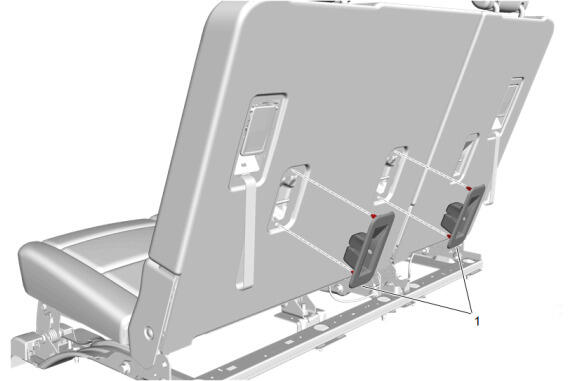

3rd Row Seat Anchor Plate Bezel (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

3rd Row Seat (2) - Install - 3rd Row Seat Removal and Installation
