Removal Procedure
Refer to SIR Warning .
If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.
Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.
- Disable the SIR system. SIR Disabling and Enabling
Reposition the weatherstrip as necessary.
- Pull the windshield garnish molding (1) rearwards to release the tether from the A pillar.
- Access the windshield garnish bolt (2) which is located on the backside of the windshield garnish molding (1) and secures the tether to the A pillar.
- Windshield Garnish Molding Bolt (2) - Remove
- Windshield Garnish Molding-Left Side (1) - Remove

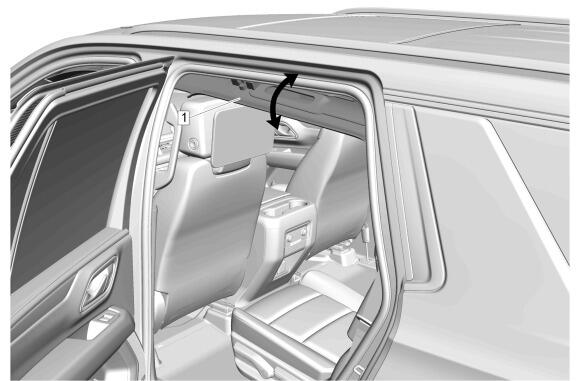

Fold the assist handle downward and hold. (2)
- Use a small flat-bladed tool to open the assist handle covers to access the bolts.
- Roof Rail Assist Handle Bolt (1) - Remove [2x]
- Roof Rail Assist Handle (2) - Remove
Sunshade Retainer Bolt Cover (1) - Remove
- Sunshade Bolt (2) - Remove [3x]
- Squeeze the tabs at the base of the sunshade (3) to detach it from the roof panel and allow the headliner with the sunshade attached to be lowered.
- Sunshade-Left Side (3) - Reposition
Move the front seat fully forward.
- Use a flat bladed plastic tool between the center pillar center trim panel (1) and the center pillar upper trim panel to disengage the upper retaining clips (2).
- Pull from both sides of the center pillar center trim panel (1) to release the middle and lower retaining clips (2).
- Center Pillar Center Trim Panel (1) - Remove
Center Pillar Upper Trim Panel Bolt Cap (1) - Remove
- Center Pillar Upper Garnish Molding Bolt (2) - Remove
- Pull the center pillar upper trim panel (3) toward the inside of the vehicle to disengage the retaining clips.
- Center Pillar Upper Trim Panel (3) - Reposition

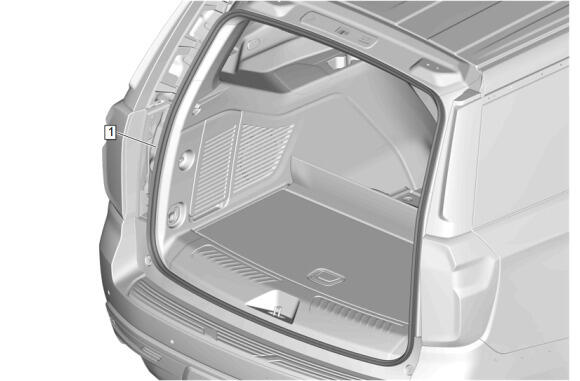

Liftgate Weatherstrip (1) - Reposition
Quarter Window Trim Finish Panel Bolt Cap (1) - Remove
- Quarter Window Trim Finish Panel Bolt (2) - Remove
Using a flat-bladed plastic trim tool, release the retaining clips.
- Body Lock Pillar Upper Trim Panel (1) - Reposition
Using a flat-bladed plastic trim tool, release the retaining clips.
- Pull the body side rear window garnish molding (1) outwards enough to access the tether fastener.
Body Side Rear Window Garnish Molding Bolt (1) - Remove
- Body Side Rear Window Garnish Molding Tether Retaining Clip (2) - Remove
Body Rear Corner Upper Garnish Molding Bolt (1) - Remove
Using a flat-bladed plastic trim tool, release the retaining clips.
- Body Rear Corner Upper Garnish Molding (1) - Reposition
Place the coat hook (2) in the open position.
- Coat Hook Bolt (1) - Remove [2x]
- Coat Hook (2) - Remove [2x]
Using a suitable plastic trim tool, release the retaining tabs on the rear seat position center reading and courtesy lamp (1).
Using a suitable plastic trim tool, release the retaining tabs on the cargo center courtesy lamp (1).
3rd Row Seat Belt Guide Cover (1) - Open
- Rear Seat Belt Guide Bolt (2) - Remove
3rd Row Seat Belt Guide (1) - Reposition
- Using a suitable trim tool, gently pry and pull downwards on the rear seat belt opening bezel (2) to release the retaining clip.
- Rear Seat Belt Opening Bezel (2) - Remove
Using a suitable plastic trim tool, release the retaining tabs.
- Rear Seat Center Belt Opening Bezel-3rd Row Seat (1) - Remove
- Feed the 3rd row seat center belt through the rear seat center belt opening bezel (1).
Lower the left rear section of the headlining trim panel (1).
- Lower the left rear section of the headlining rear trim panel, if equipped.
- NOTE:
- Quantity of fasteners may vary based on option content.
- Ensure the pucks are removed with the nuts.

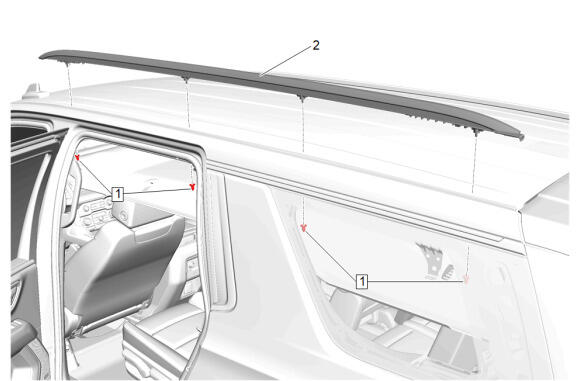

Luggage Carrier Nut (1) - Remove [4x]
- Luggage Carrier Side Rail (2) - Remove
