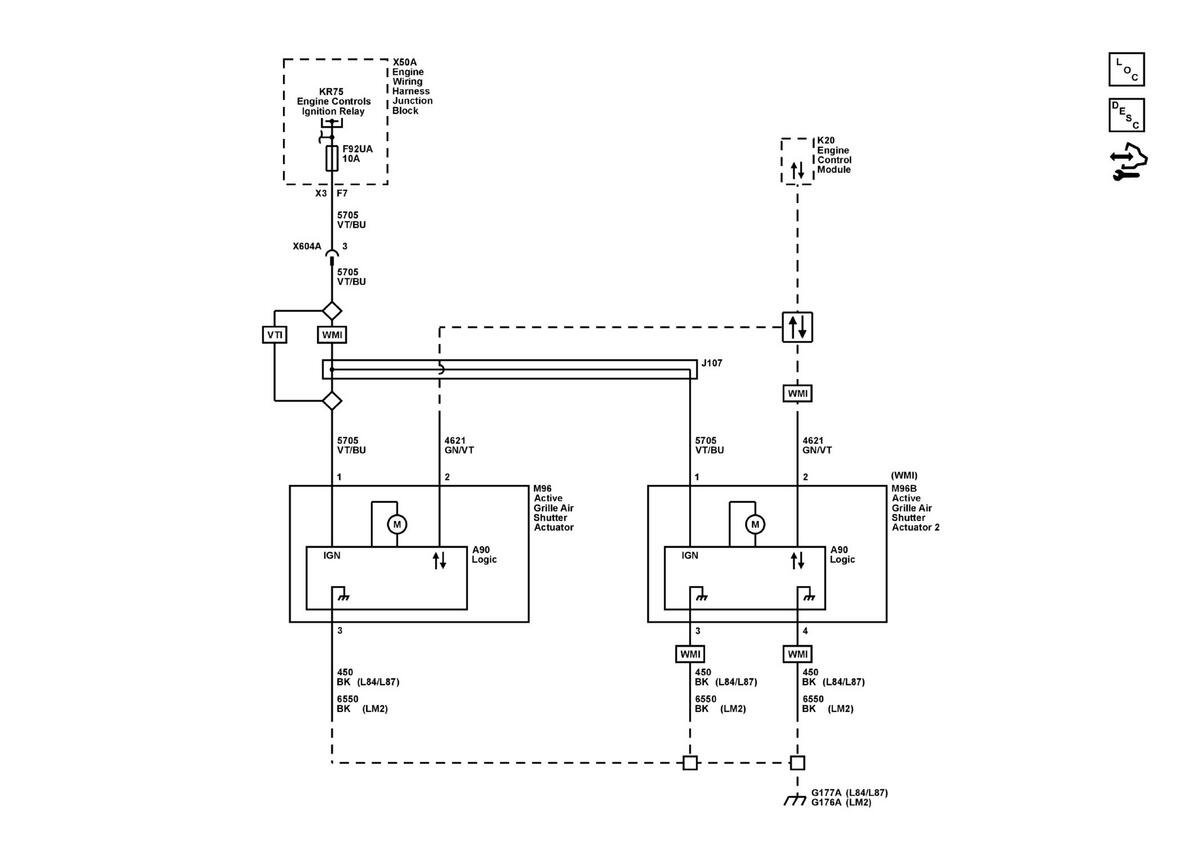

Home >> Chevrolet >> 2024 >> Tahoe Commercial, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Exterior Trim >> Bumpers And Fascias >> Schematic Wiring Diagrams >> Active Grille Air Shutter Wiring Schematics >> Active Grille Air Shutter
