Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia (2) - Remove - Front Bumper Fascia Removal and Installation (without Front Fascia Extension) , or Front Bumper Fascia Removal and Installation (with Front Fascia Extension)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown right side similar.

Remove the 6 right and left side headlamp bolts (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown right side similar.

Remove the 6 right and left side headlamp bolts (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown right side similar.

Release the front headlamp guide pin from the front bumper fascia guide (1).
Remove the right and left side headlamps (2).
Release the wiring harness retaining tabs.
Disconnect all electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

Loosen the left and right side front bumper fascia upper stiffener nut (1).
Remove the left and right side front bumper fascia upper stiffener bolt (2).
Courtesy of GENERAL MOTORS COMPANY

Pull the front bumper fascia upper stiffener (1) up and out over the stud.
Courtesy of GENERAL MOTORS COMPANY

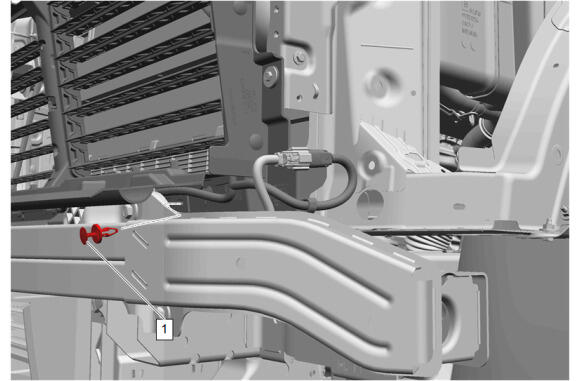

Remove the left and right side outer front bumper shutter retainer (1).
Disconnect the electrical connector and reposition wiring harness.
Courtesy of GENERAL MOTORS COMPANY

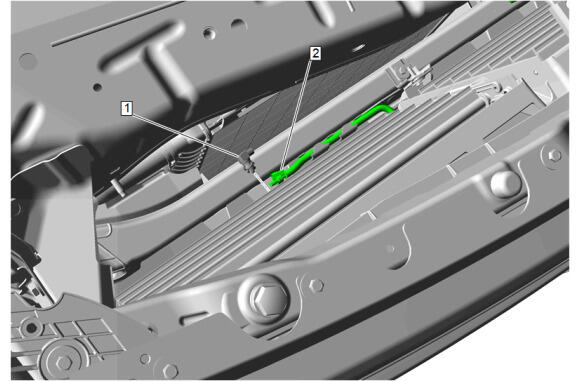

Ambient Air Temperature Sensor (1) - Remove
Disconnect the electrical connector. (2)
Courtesy of GENERAL MOTORS COMPANY

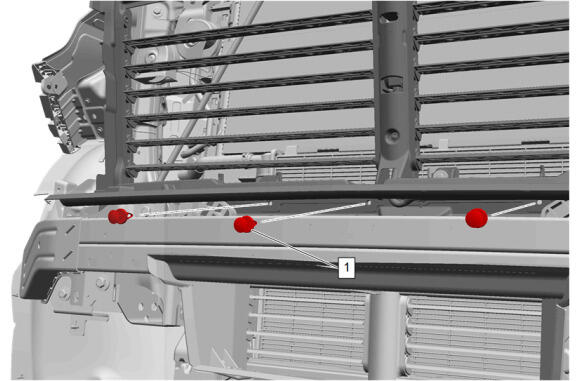

Front Bumper Shutter Retainer (1) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Shutter Bolt (1) - Remove [9x]
Front Bumper Shutter (2) - Remove
