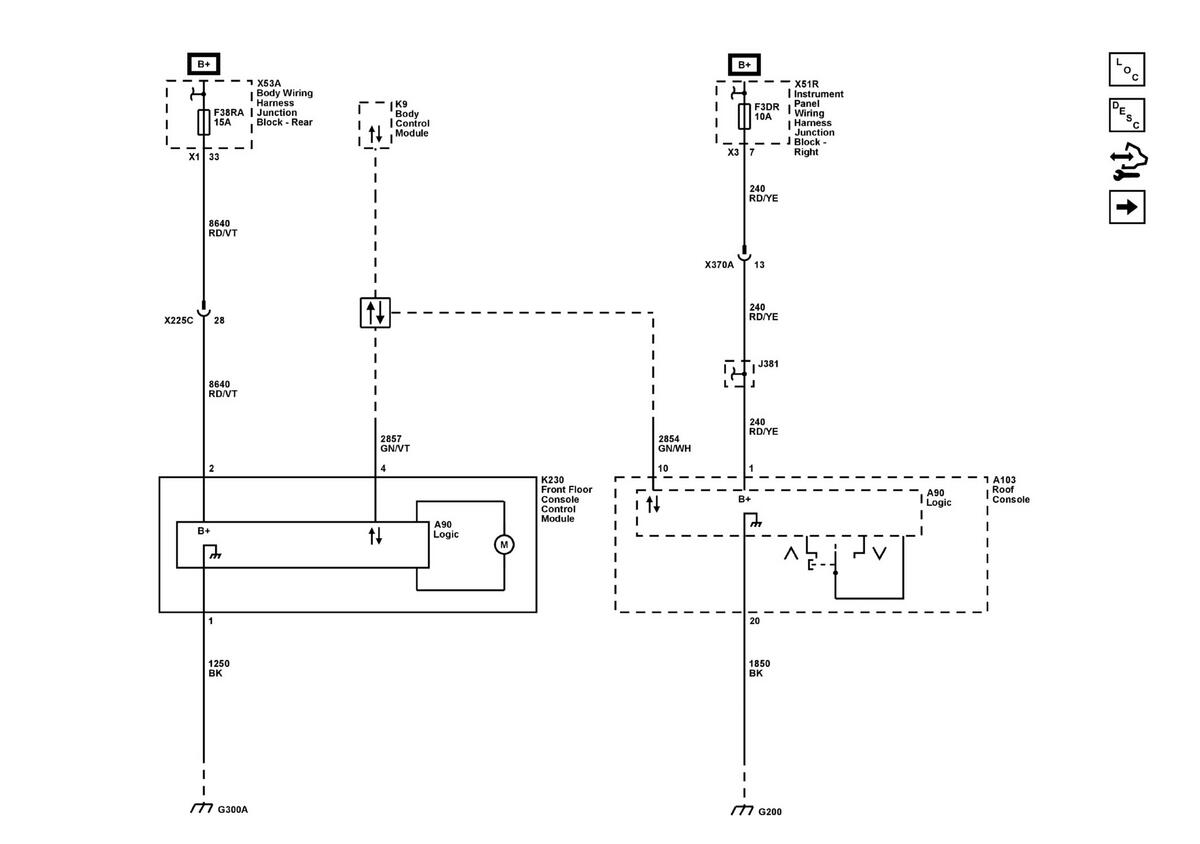

Home >> Chevrolet >> 2024 >> Tahoe Commercial, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel Trim And Console Trim >> Schematic Wiring Diagrams >> Instrument Panel and Console Wiring Schematics >> Sliding Floor Console (DCH)
