Installation Procedure

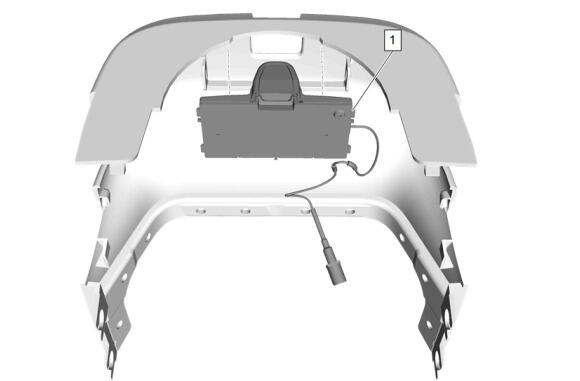

  1. GM5620283Courtesy of GENERAL MOTORS COMPANY

    Driver Monitoring System Camera (1) - Install

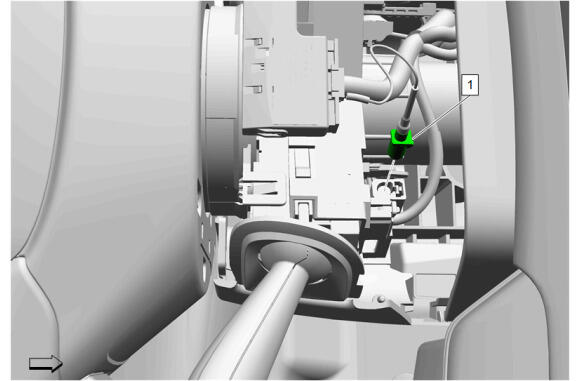

  2. GM5620282Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (1)

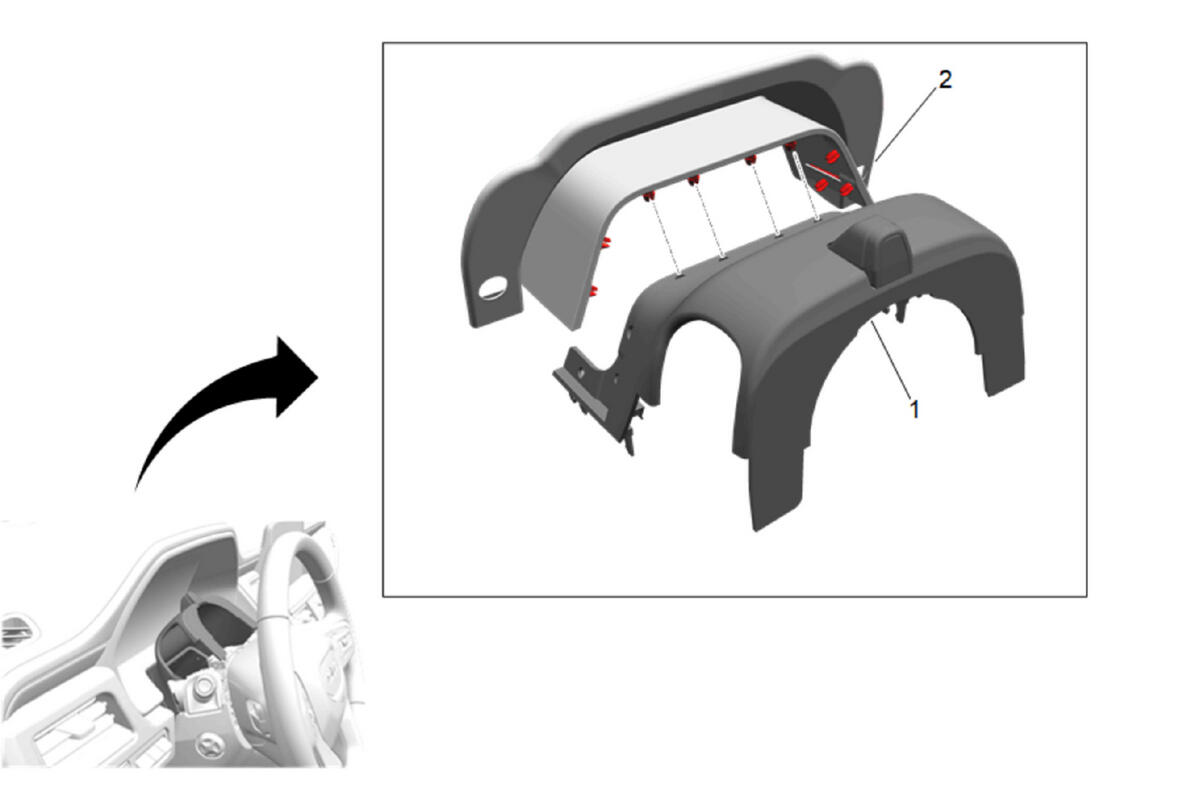

  3. GM6287038Courtesy of GENERAL MOTORS COMPANY

    Clip the instrument panel steering column opening closeout (2) to the instrument panel steering column upper trim cover (1).

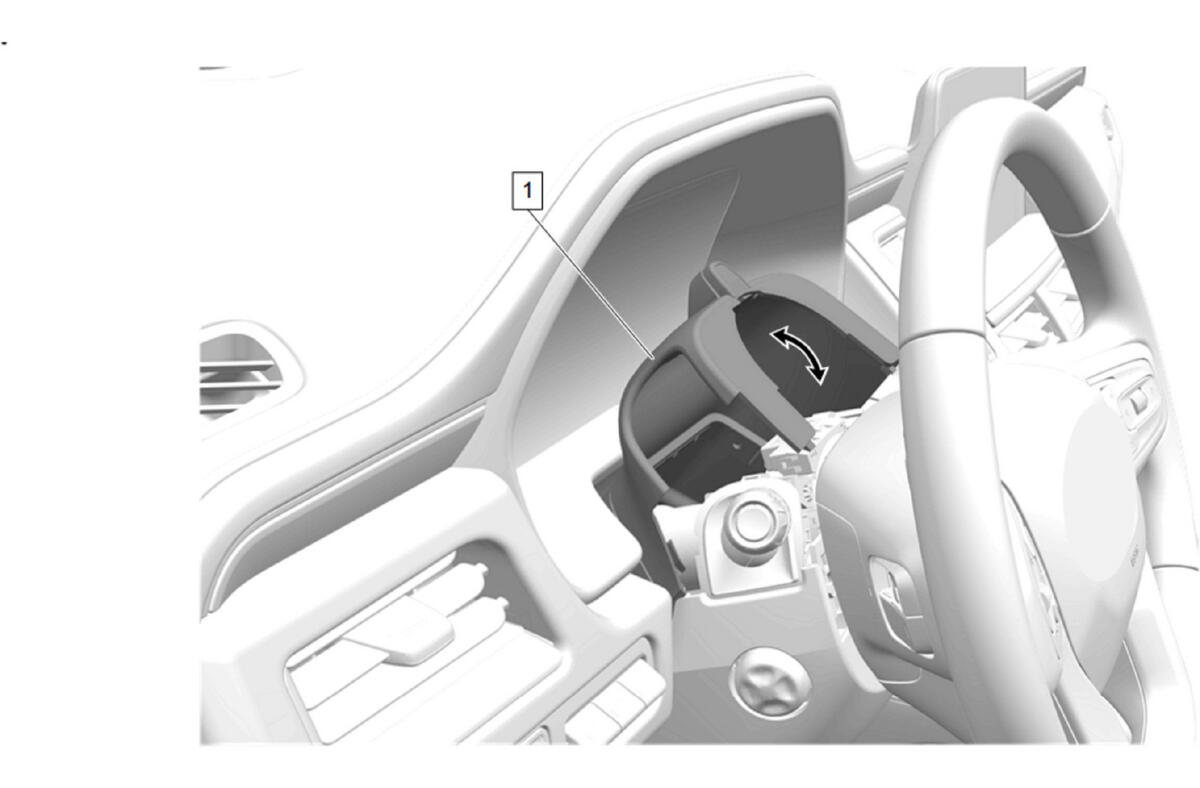

  4. GM6287034Courtesy of GENERAL MOTORS COMPANY

    Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
