Removal Procedure

  1. GM5573683Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Seat- Left Side and Right Side (2) - Remove [2x] - Front Seat Removal and Installation

  2. GM5525884Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  3. Front Floor Console Lower Applique- Left Side (1) - Remove
  4. GM5525886Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  5. Front Floor Console Applique- Left Side (1) - Remove
  6. GM5536178Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Use a flat bladed plastic trim tool.

    Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Remove

  7. Front Floor Console Extension Bolt (2) - Remove
  8. Front Floor Console Extension Panel- Left Side (3) - Remove
  9. GM5536230Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  10. Front Floor Console Bolt Access Hole Cover- Left Side (1) - Remove
  11. GM5537637Courtesy of GENERAL MOTORS COMPANY

    Slide the armrest back to better access the retainers.

  12. Using a flat-bladed plastic trim tool, release the retaining clips.
  13. Front Floor Console Rear Trim Lower Panel (1) - Remove
  14. GM5537709Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  15. Front Floor Rear Console Side Trim Panel- Left Side (1) - Remove
  16. GM5525885Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  17. Front Floor Console Lower Applique- Right Side (1) - Remove
  18. GM5525888Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  19. Front Floor Console Applique- Right Side (1) - Remove
  20. GM5536180Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Use a flat bladed plastic trim tool.

  21. Front Floor Console Extension Panel- Right Side (1) - Remove
  22. GM5536231Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  23. Front Floor Console Bolt Access Hole Cover- Right Side (1) - Remove
  24. GM5537710Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  25. Disconnect and reposition harness as necessary.
  26. Front Floor Rear Console Side Trim Panel- Right Side (1) - Remove
  27. GM5536447Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cup Holder Liner (1) - Remove

  28. Front Floor Console Cup Holder Bolt (2) - Remove
  29. Using a flat-bladed plastic trim tool, release the retaining clips.
  30. Front Floor Console Rear Cup Holder (3) - Remove
  31. GM5536449Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cover Bolt (1) - Remove

  32. Using a flat-bladed plastic trim tool, release the retaining clips.
  33. Front Floor Console Rear Trim Panel (2) - Remove
  34. Disconnect the electrical connectors.
  35. GM5696477Courtesy of GENERAL MOTORS COMPANY

    Disconnect the front floor console bin lamp connector (1).

  36. Going forward make sure the front floor console compartment is in the full rearward position.
  37. GM5549160Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Use a suitable tool.

    Front Floor Console Armrest Hinge Clip (1) - Remove

    38. WARNING:

    The armrest hinge springs are under pressure. Remove the pivot pin carefully in order to avoid bodily injury.

  38. Front Floor Console Armrest Pivot Pin (2) - Remove
  39. Front Floor Console Armrest (3) - Reposition
  40. GM5577794Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Compartment Liner (1) - Remove

  41. Front Floor Console Bracket Bolt (2) - Remove [4x]
  42. GM5696538Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment (1) - Remove

  43. GM5544153Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray Bolt (1) - Remove [2x]

    44. NOTE:

    Use a suitable tool.

  44. Front Floor Console Armrest Hinge Clip (2) - Remove
  45. GM5544156Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest Pivot Pin (1) - Remove

  46. Front Floor Console Stowage Tray Bolt (2) - Remove [2x]
  47. GM5696694Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray (1) - Remove

  48. GM5696695Courtesy of GENERAL MOTORS COMPANY

    Release the front floor console armrest cable (1) from the cable union and front floor console base.

  49. GM6019106Courtesy of GENERAL MOTORS COMPANY

    Pull up on the rear of the front floor console cup holder trim plate (1) to start to release the retainer clips and work your way forward.

  50. Disconnect the electrical connectors.
  51. Front Floor Console Cup Holder Trim Plate (1) - Remove
  52. GM5552326Courtesy of GENERAL MOTORS COMPANY

    Disconnect and reposition harness as necessary.

  53. Front Floor Console Retainer Bolt (1) - Remove [2x]
  54. Front Floor Console Intermediate Bracket Bolt (2) - Remove [4x]
  55. Front Floor Console Carrier (3) - Remove
  56. GM5577801Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Remove [4x]

  57. GM5577803Courtesy of GENERAL MOTORS COMPANY

    Disconnect and reposition harness as necessary.

  58. Front Floor Console Base (1) - Remove
  59. GM6054856Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bracket Bolt@ Front Floor Console Base (1) - Remove [2x]

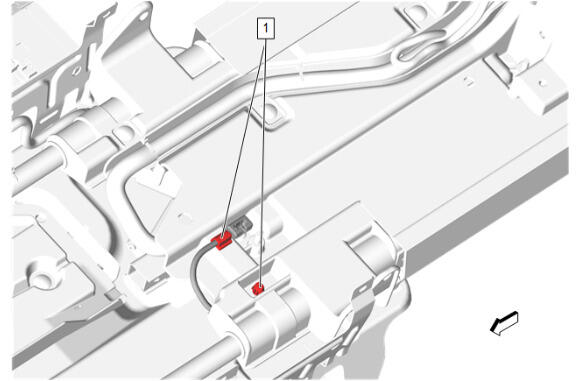

  60. GM6054853Courtesy of GENERAL MOTORS COMPANY

    Disconnect the front floor console armrest cable retainers (1).

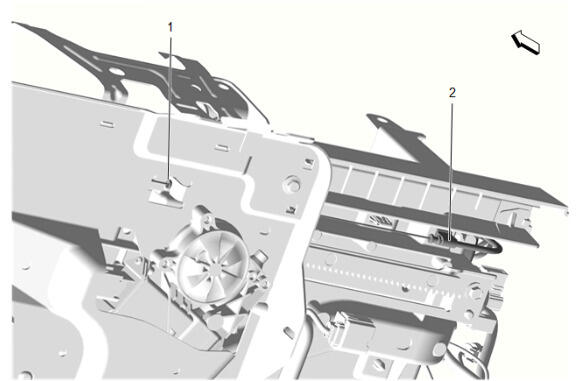

  61. GM6054857Courtesy of GENERAL MOTORS COMPANY

    Disconnect the front floor console armrest cable grommet (1) and retainers (2) with the front floor console base on its side.

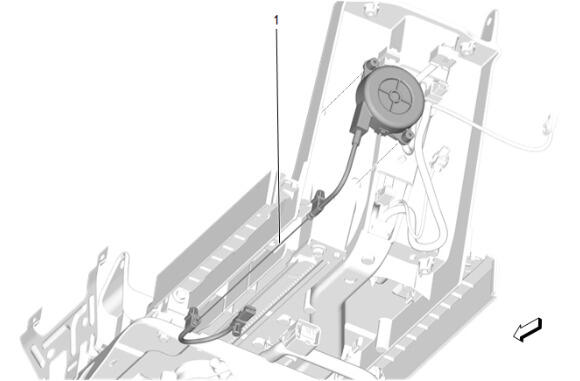

  62. GM6054858Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest Cable (1) - Remove
