Installation Procedure

  1. GM6054858Courtesy of GENERAL MOTORS COMPANY

    Route the front floor console armrest cable (1) into the front floor console base.

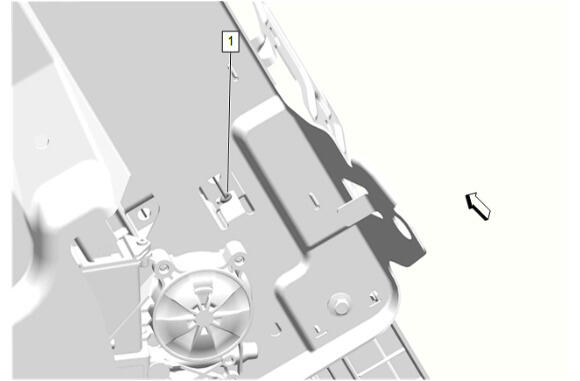

  2. GM6054860Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console armrest cable grommet (1) with the front floor console base on its side.

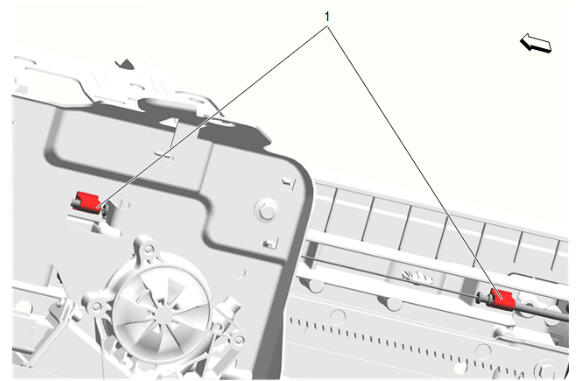

  3. GM6054861Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console armrest cable retainers (1).

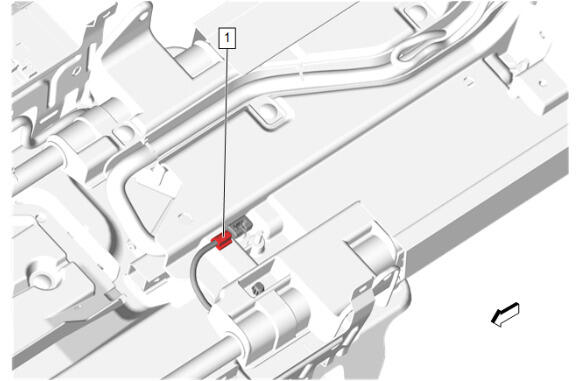

  4. GM6054855Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console armrest cable retainer (1).

  5. GM6054856Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Bracket Bolt@ Front Floor Console Base (1) - Install and tighten [2x] - Fastener Specifications

  6. GM5577803Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Base (1) - Install

  7. Connect and position the wiring harness.
  8. GM5577801Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Install and tighten [4x] - Fastener Specifications

  9. GM5552326Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  10. Front Floor Console Carrier (3) - Install
  11. Front Floor Console Intermediate Bracket Bolt (2) - Install and tighten [4x] - Fastener Specifications
  12. Front Floor Console Retainer Bolt (1) - Install and tighten [2x] - Fastener Specifications
  13. GM6019106Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  14. Front Floor Console Cup Holder Trim Plate (1) - Install
  15. GM5696695Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console armrest cable (1) to the cable union and front floor console base.

  16. GM5696694Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray (1) - Install

  17. GM5544156Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest Pivot Pin (1) - Install

  18. Front Floor Console Stowage Tray Bolt (2) - Install and tighten [2x] - Fastener Specifications
  19. GM5544153Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray Bolt (1) - Install and tighten [2x] - Fastener Specifications

  20. Front Floor Console Armrest Hinge Clip (2) - Install
  21. GM5696538Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Compartment (1) - Install

  22. GM5577794Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Front Floor Console Bracket Bolt (2) - Install and tighten [4x] - Fastener Specifications

  23. Front Floor Console Compartment Liner (1) - Install
  24. GM5549160Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Armrest (3) - Install

  25. Front Floor Console Armrest Pivot Pin (2) - Install
  26. Front Floor Console Armrest Hinge Clip (1) - Install
  27. GM5696477Courtesy of GENERAL MOTORS COMPANY

    Connect the front floor console bin lamp connector (1).

  28. GM5536449Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  29. Front Floor Console Rear Trim Panel (2) - Install
  30. Front Floor Console Rear Cover Bolt (1) - Install and tighten - Fastener Specifications
  31. GM5536447Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Cup Holder (3) - Install

  32. Front Floor Console Cup Holder Bolt (2) - Install and tighten - Fastener Specifications
    33. NOTE:

    Make sure the liner is properly seated under the front floor console compartment bezel.

  33. Front Floor Console Rear Cup Holder Liner (1) - Install
  34. GM5537710Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  35. Front Floor Rear Console Side Trim Panel- Right Side (1) - Install
  36. GM5536231Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover- Right Side (1) - Install

  37. GM5536180Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel- Right Side (1) - Install

  38. GM5525888Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique- Right Side (1) - Install

  39. GM5525885Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique- Right Side (1) - Install

  40. GM5537709Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Side Trim Panel- Left Side (1) - Install

  41. GM5537637Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Lower Panel (1) - Install

  42. GM5536230Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover- Left Side (1) - Install

  43. GM5536178Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel- Left Side (3) - Install

  44. Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
  45. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install
  46. GM5525886Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique- Left Side (1) - Install

  47. GM5525884Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Lower Applique- Left Side (1) - Install

  48. Return the front floor console compartment to the close position.
  49. GM5573683Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Seat- Left Side and Right Side (2) - Install [2x] - Front Seat Removal and Installation
