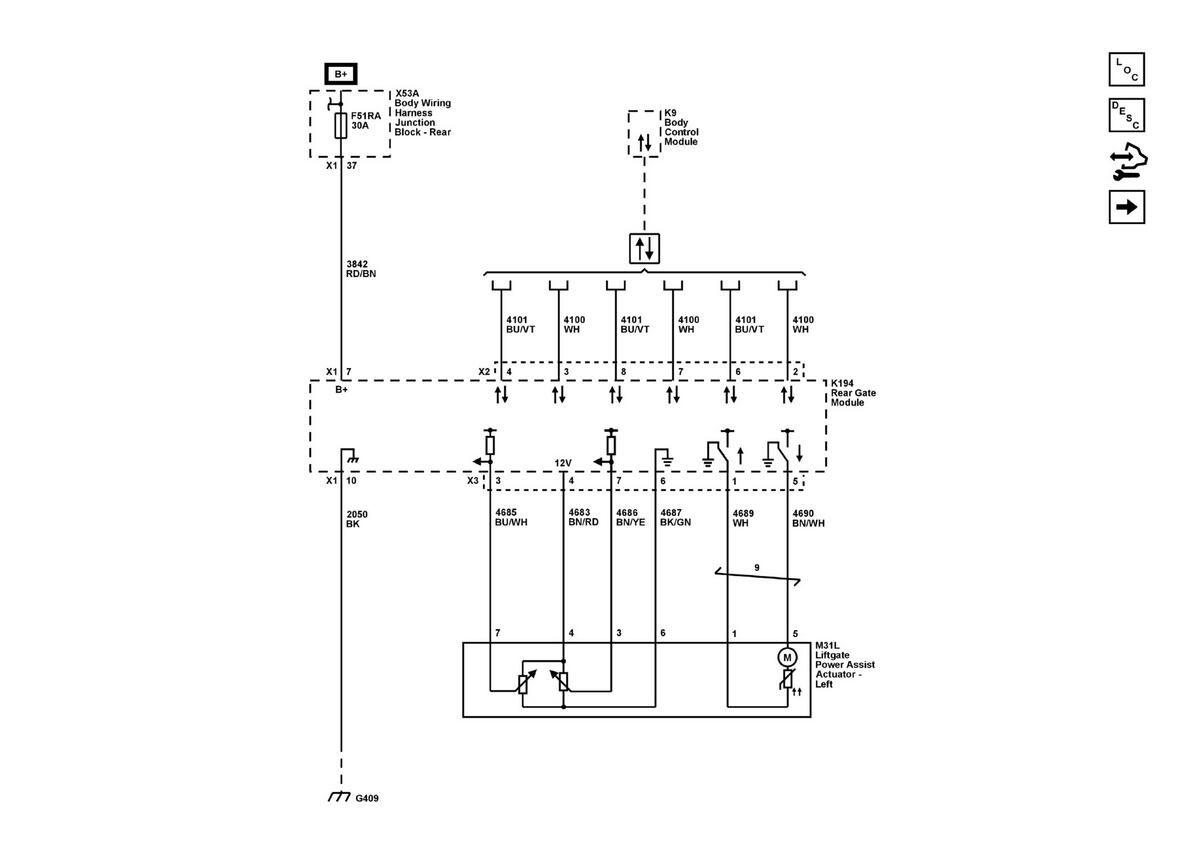

Rear Gate Module Power, Ground, Serial Data, and Liftgate Motor (TC2)

GM5998235

Courtesy of GENERAL MOTORS COMPANY
