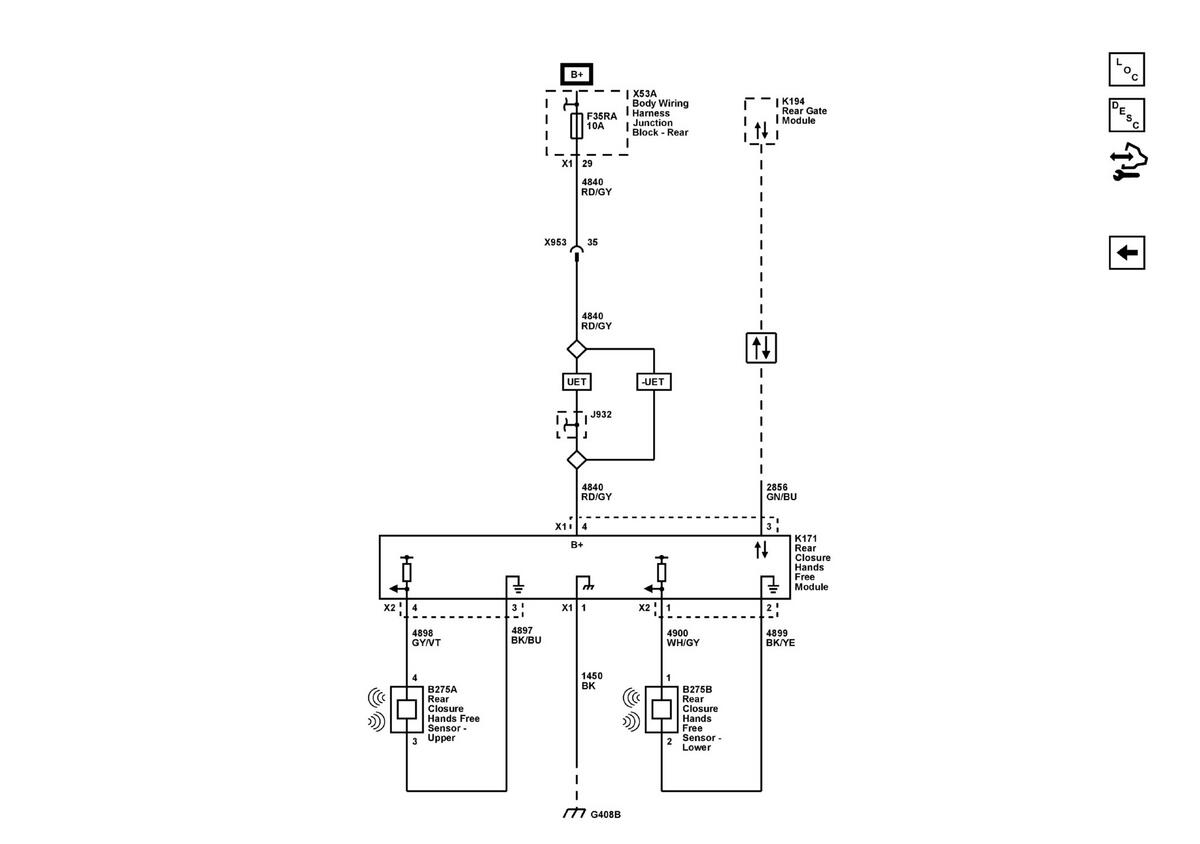

Home >> Chevrolet >> 2024 >> Tahoe Commercial, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Body Interior >> Power Door Locks And Vehicle Access - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Liftgate Wiring Schematics >> Rear Closure Hands Free Module (TC2)
