Draining Procedure
WARNING: This page is about a different variant/trim than selected.
- Raise and suitably support the vehicle. Lifting and Jacking the Vehicle
- Place a suitable drain pan under the transmission.

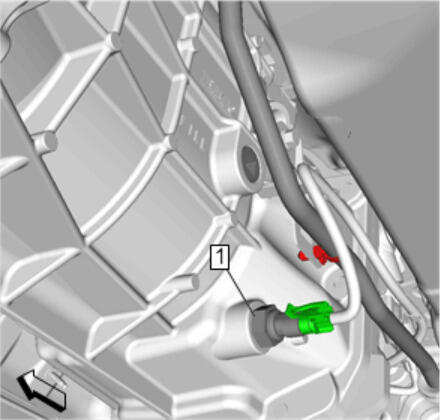

Disconnect the electrical connector from the transmission fluid temperature sensor/drain plug (1).
- Remove the transmission fluid temperature sensor/drain plug (1).
- Allow the system to drain.
- Apply sealant to the transmission fluid temperature sensor/drain plug (1). Adhesives, Fluids, Lubricants, and Sealers (MJK or MM6)
- Install the transmission fluid temperature sensor/drain plug (1) and tighten to 27 N.m (20 lb ft).
- Connect the electrical connector to the transmission fluid temperature sensor/drain plug.
CAUTION:
Refer to Component Fastener Tightening Caution .
