Shift Shaft Bearing Removal

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

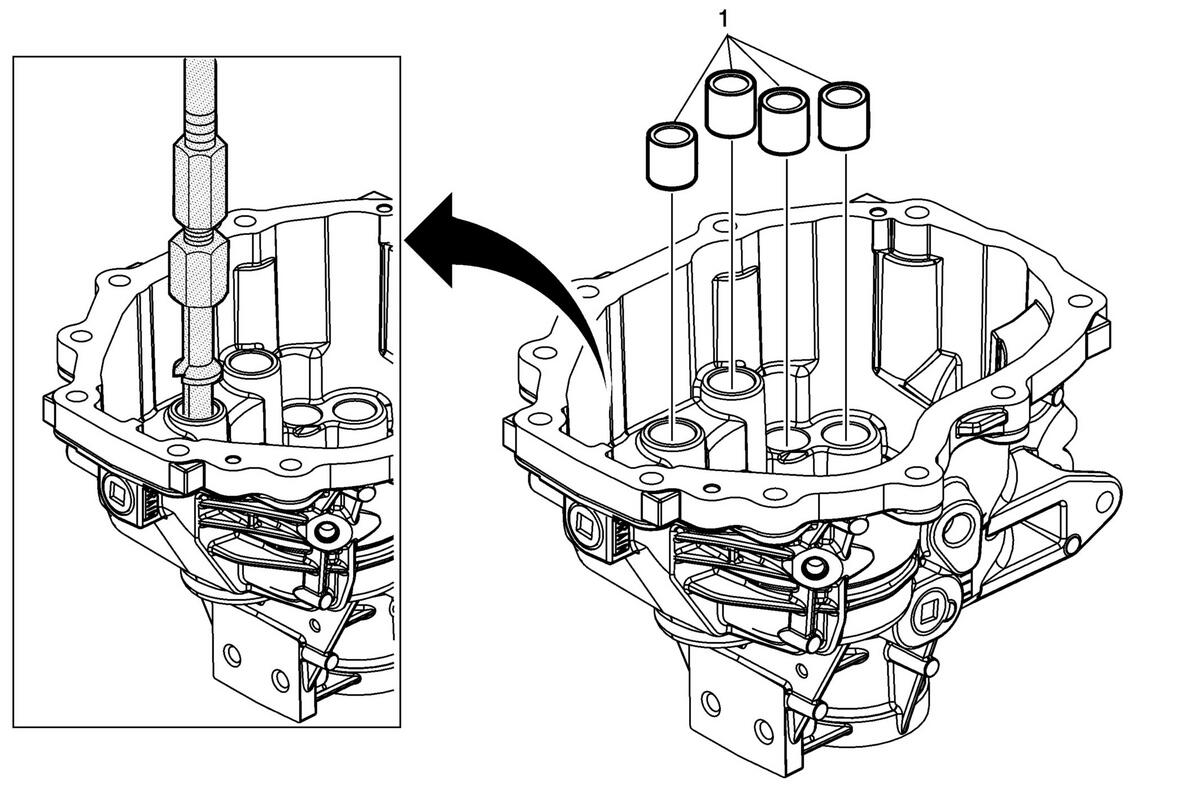

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
1	Shift Shaft Bearing Assembly Procedure Install the DT 49216 bushing remover (2) into the bearing. Install the J 23907-1 slide hammer (3) into the remover. Remove the bearing. Special Tools DT 49216 Bushing Remover J 23907-1 Slide Hammer For equivalent regional tools, refer to Special Tools (M13) .

Callout

Component Name

Shift Shaft Bearing Assembly

Procedure

Special Tools
DT 49216 Bushing Remover
J 23907-1 Slide Hammer
For equivalent regional tools, refer to Special Tools (M13) .
