Countershaft Gear Removal
WARNING: This page is about a different variant/trim than selected.
Remove the reverse counter shaft retainer ring.

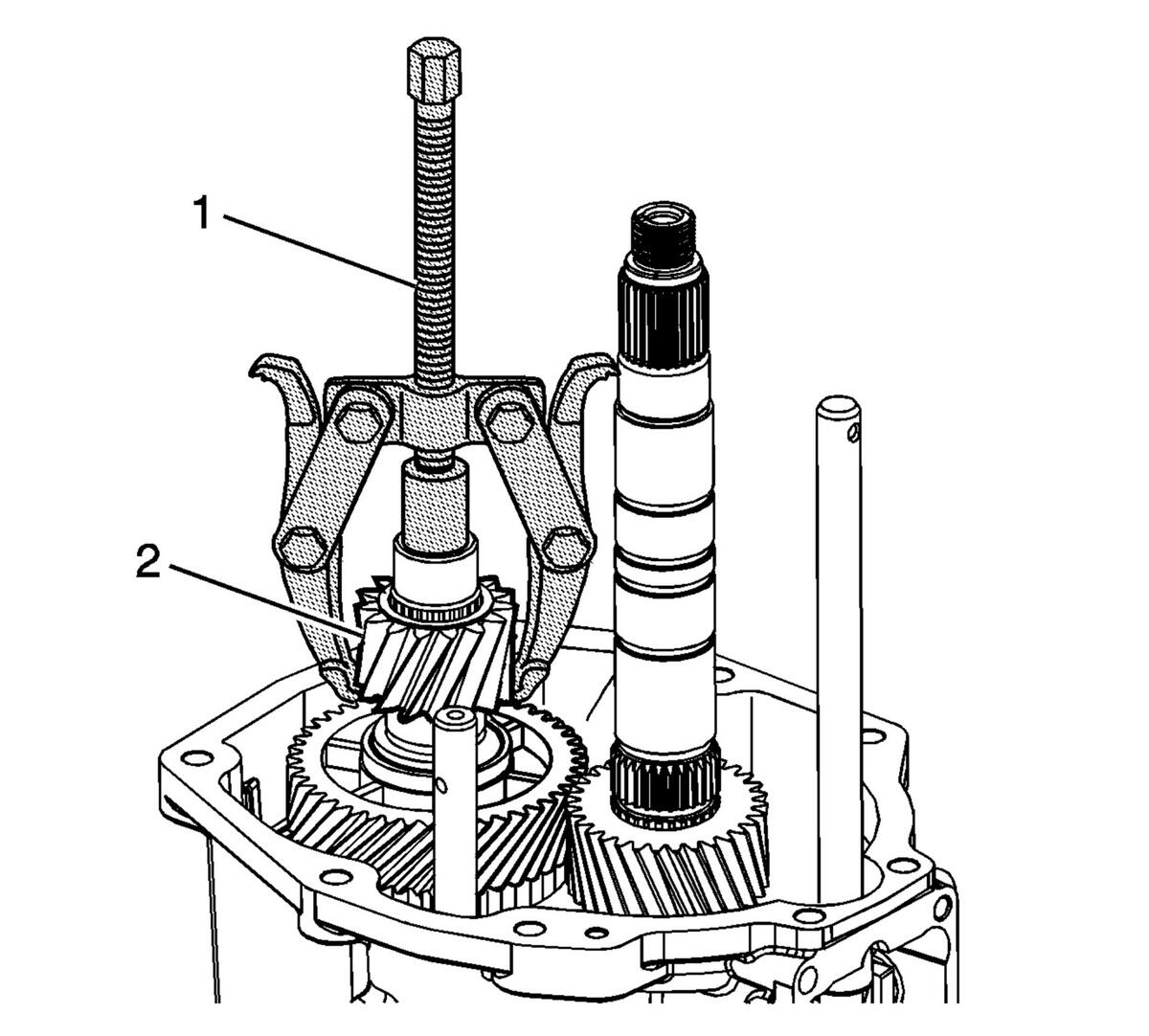

Remove the reverse countershaft gear (2) using J-22888-20A universal two jaw puller (1).
Remove the 5th gear countershaft retainer and spacer.
Remove the 5th gear from the countershaft.
Remove the 5th gear needle bearing from the countershaft.
Remove the 5th gear spacer from the countershaft.
Remove the 5th and 6th gear synchronizer hub retainer ring from the countershaft.
Remove the 5th/6th speed shift fork retainer ring.
