Inverter Lever Removal

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

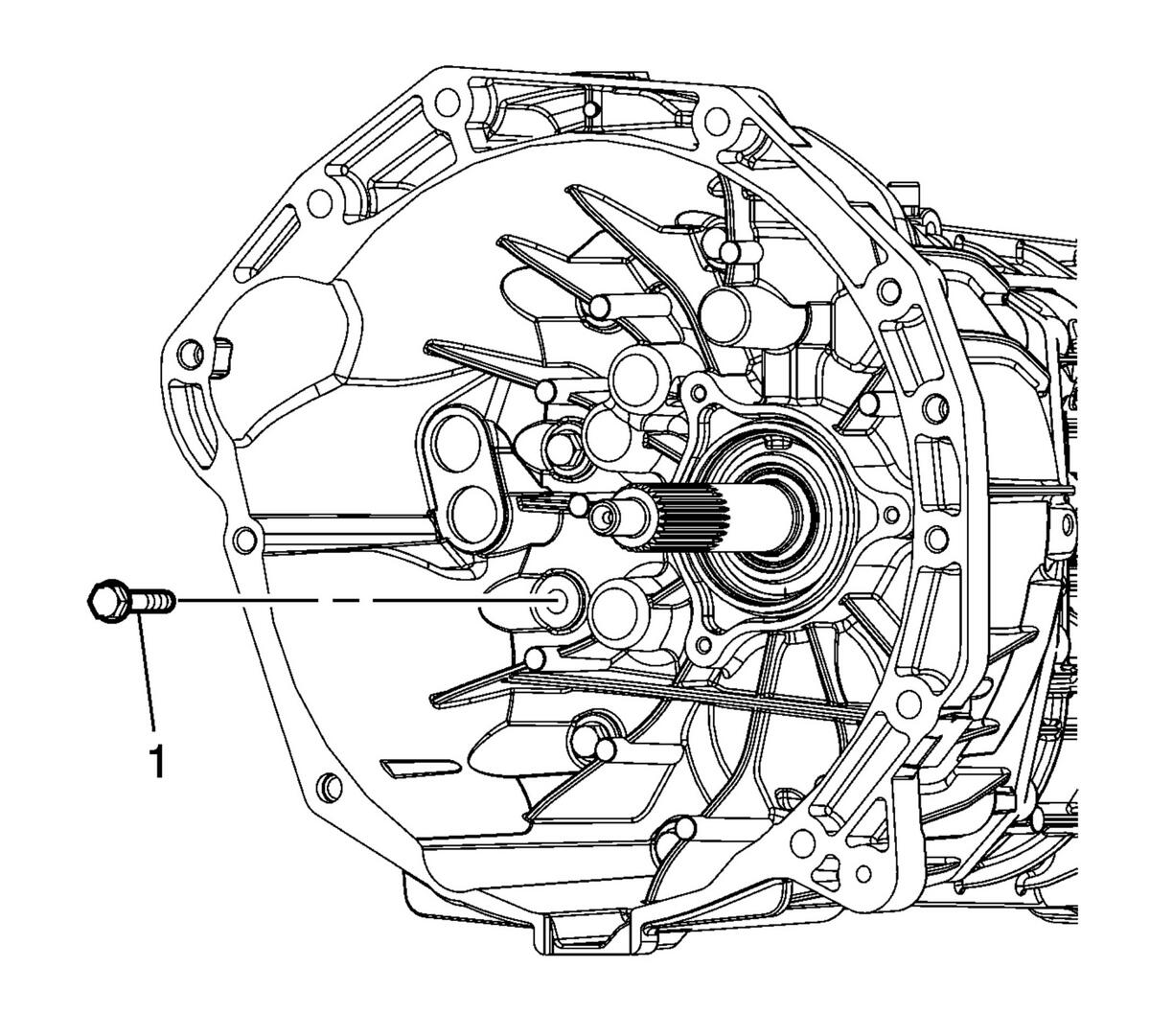

Remove the clutch housing bolts (1).
Courtesy of GENERAL MOTORS COMPANY

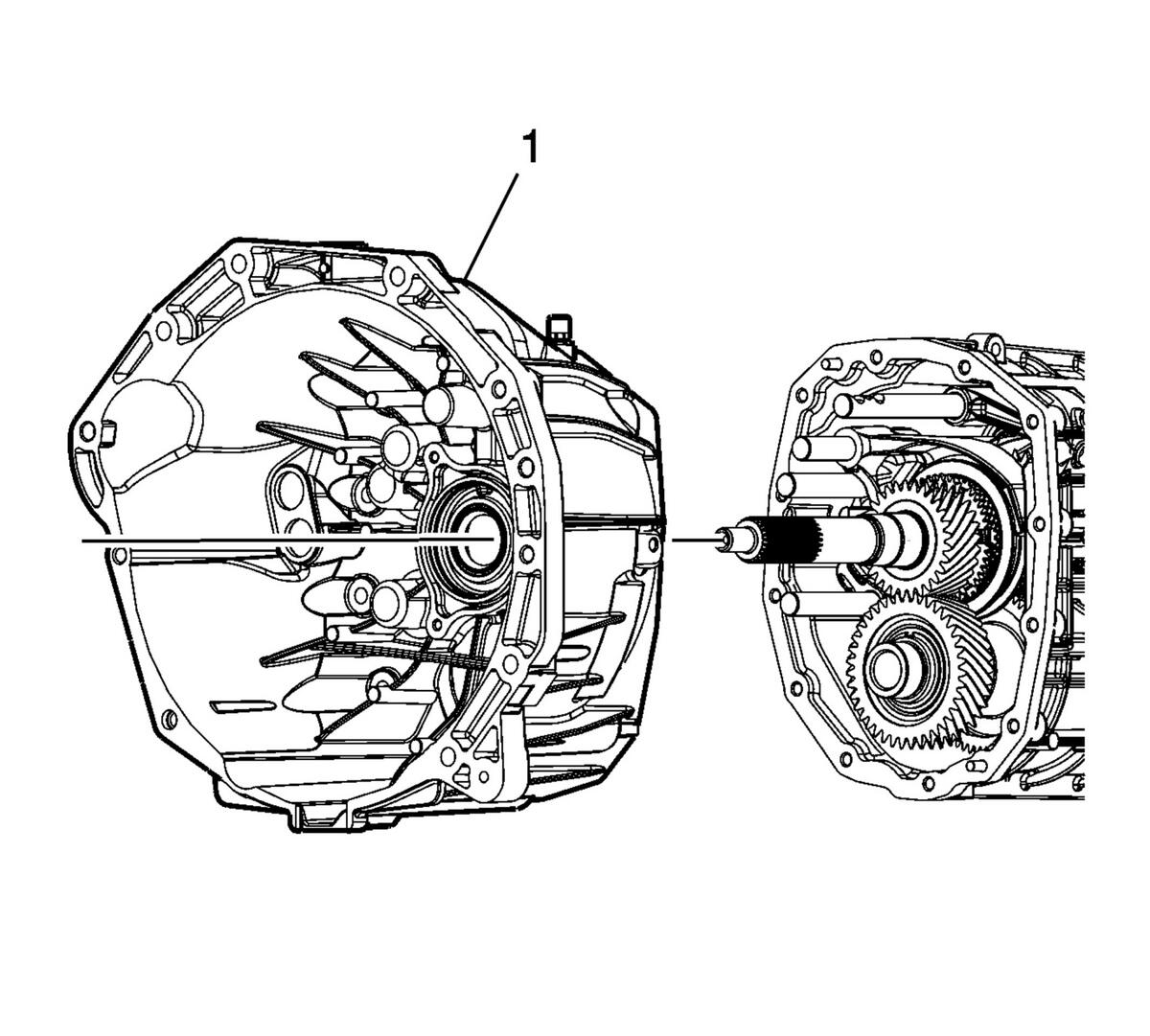

Remove the clutch housing assembly (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
DISCARD the retainer.

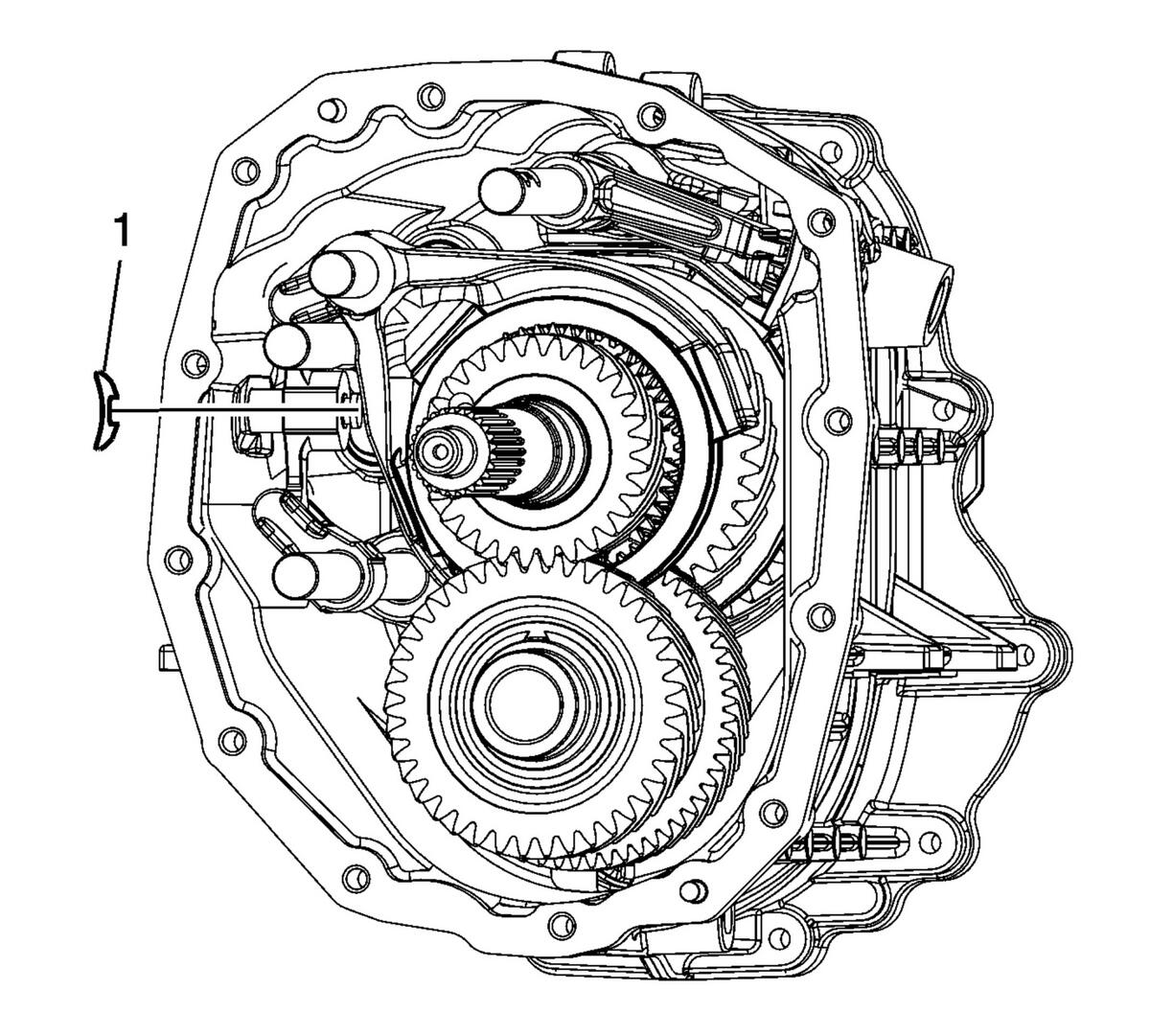

Remove the manual transmission shift lever retainer (1).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
May need to use heat, pin has sealant on it.

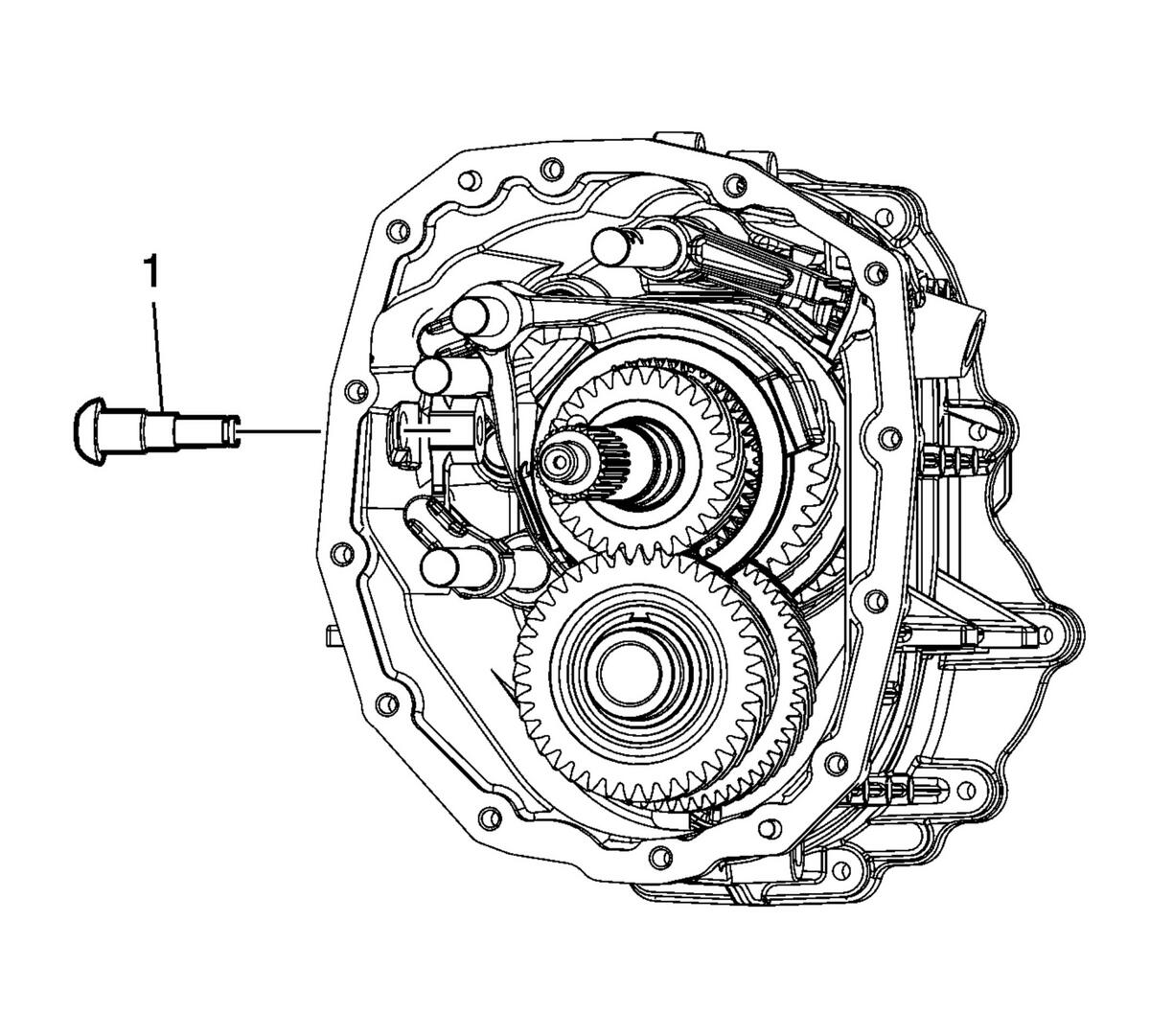

Remove the manual transmission selector lever pivot pin (1).
Courtesy of GENERAL MOTORS COMPANY

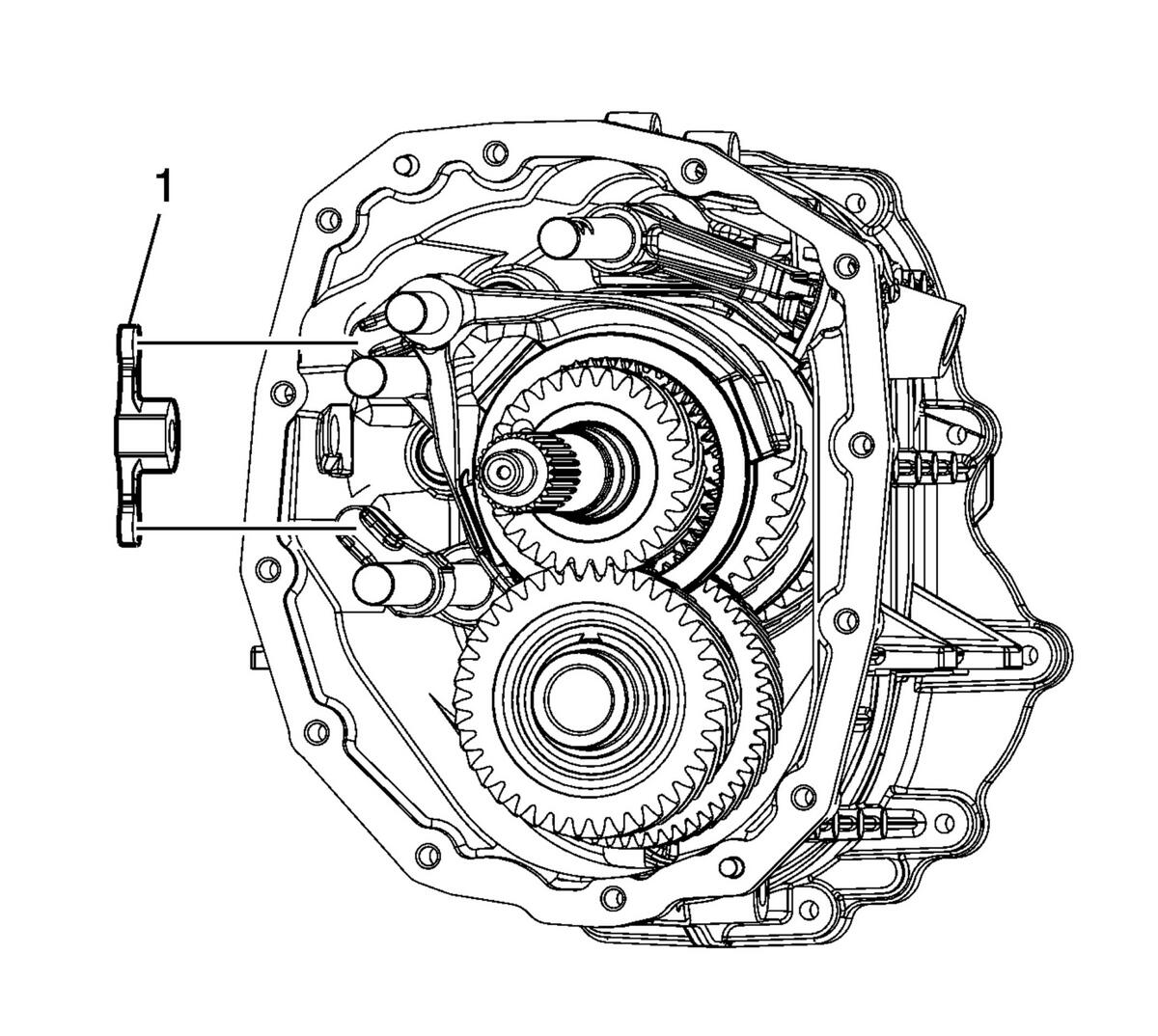

Remove the manual transmission selector lever (1).
Courtesy of GENERAL MOTORS COMPANY

Temporarily reinstall the clutch housing assembly (1).
Courtesy of GENERAL MOTORS COMPANY

Temporarily reinstall the clutch housing bolts (1).
