Transmission Case

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

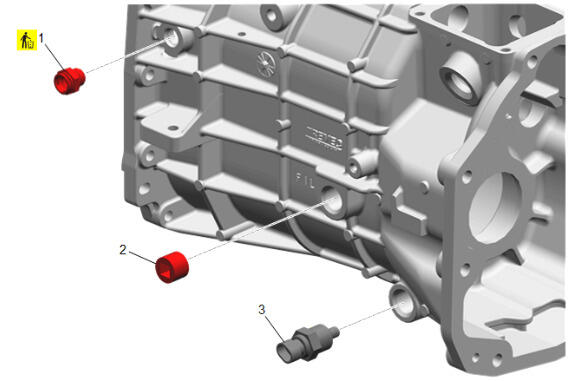

Remove the cooler line return fitting (1).
Remove the transmission case fill plug (2).
Remove the coolant temperature sensor (3).
Courtesy of GENERAL MOTORS COMPANY

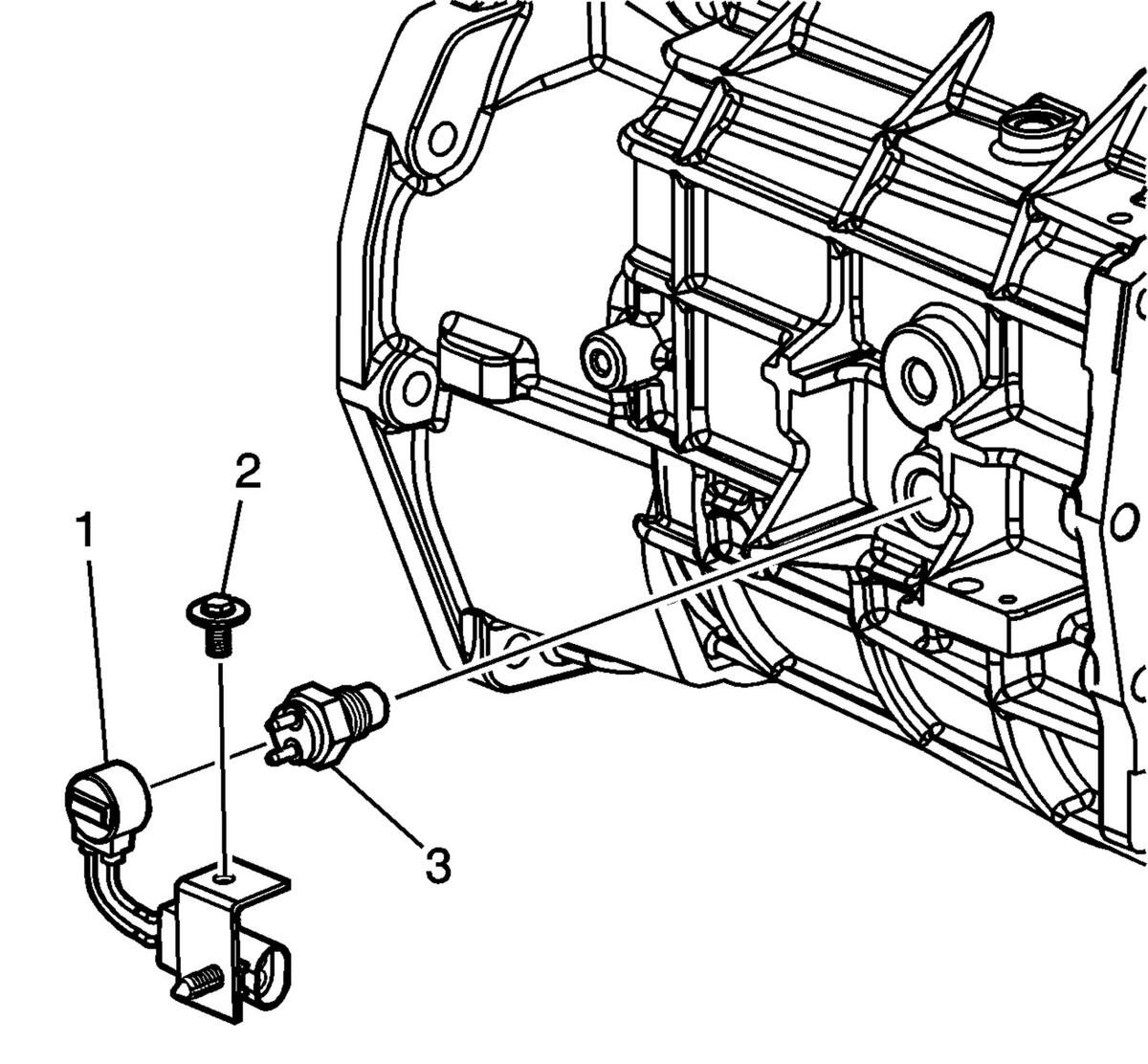

Remove the backup lamp switch connector harness bolt (2).
Remove the backup lamp switch connector harness (1).
Remove the backup lamp switch (3).
Courtesy of GENERAL MOTORS COMPANY

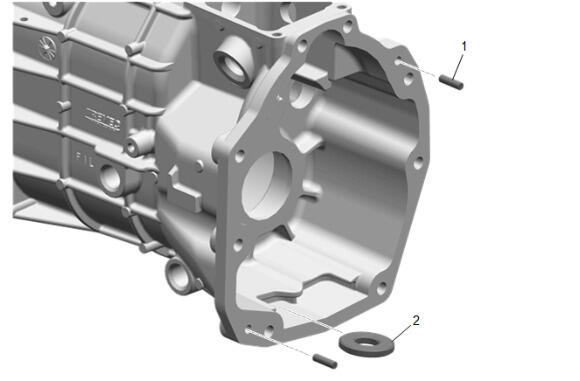

Remove the dowel pins (1) and magnets (2).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not replace the bearing race unless inspection shows bearing race damage.

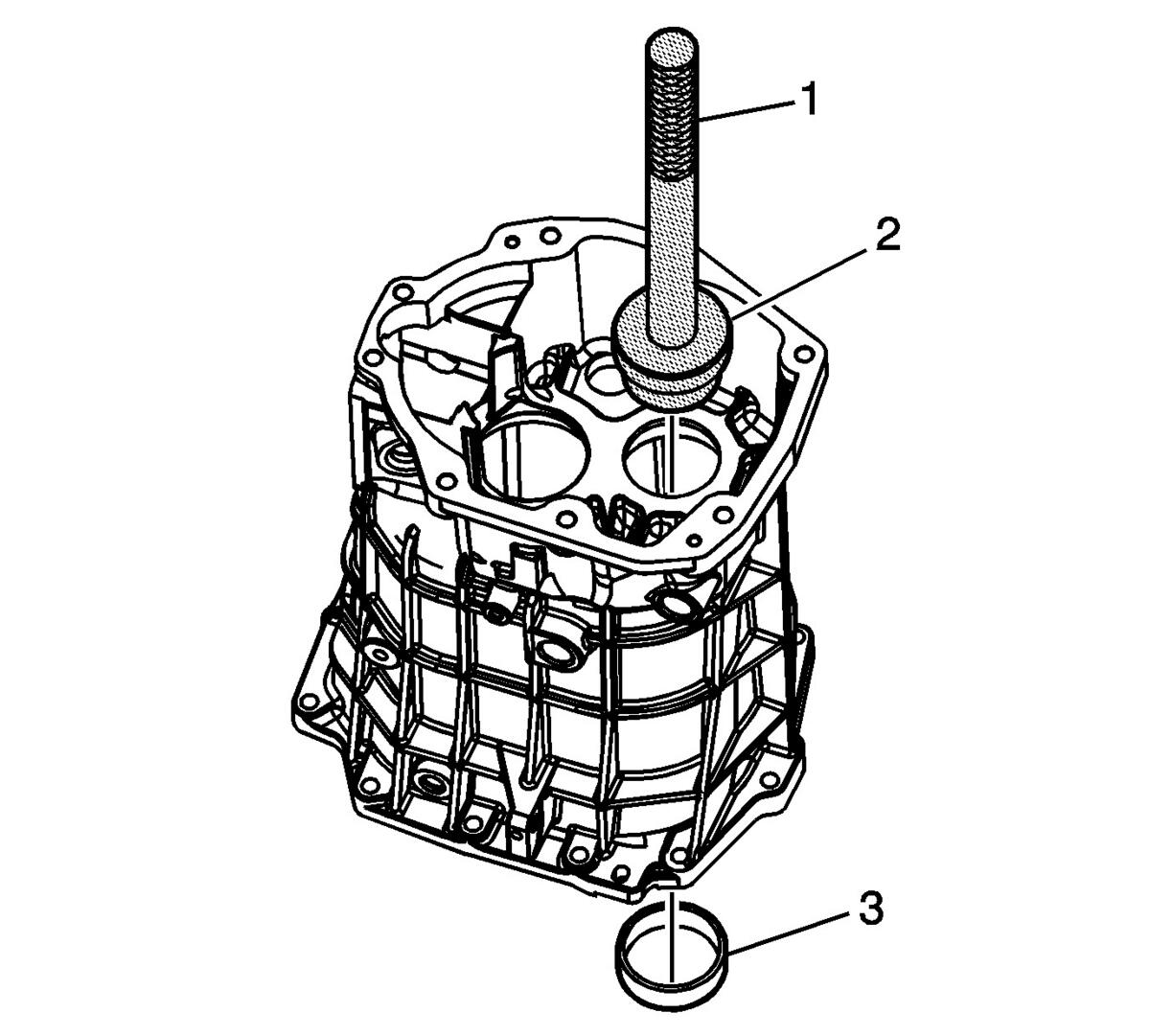

Remove the countershaft bearing race (3), using the J 8092 drive handle (1) and the J 39790-A race remover (2).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not replace the bearing race unless inspection shows bearing race damage.

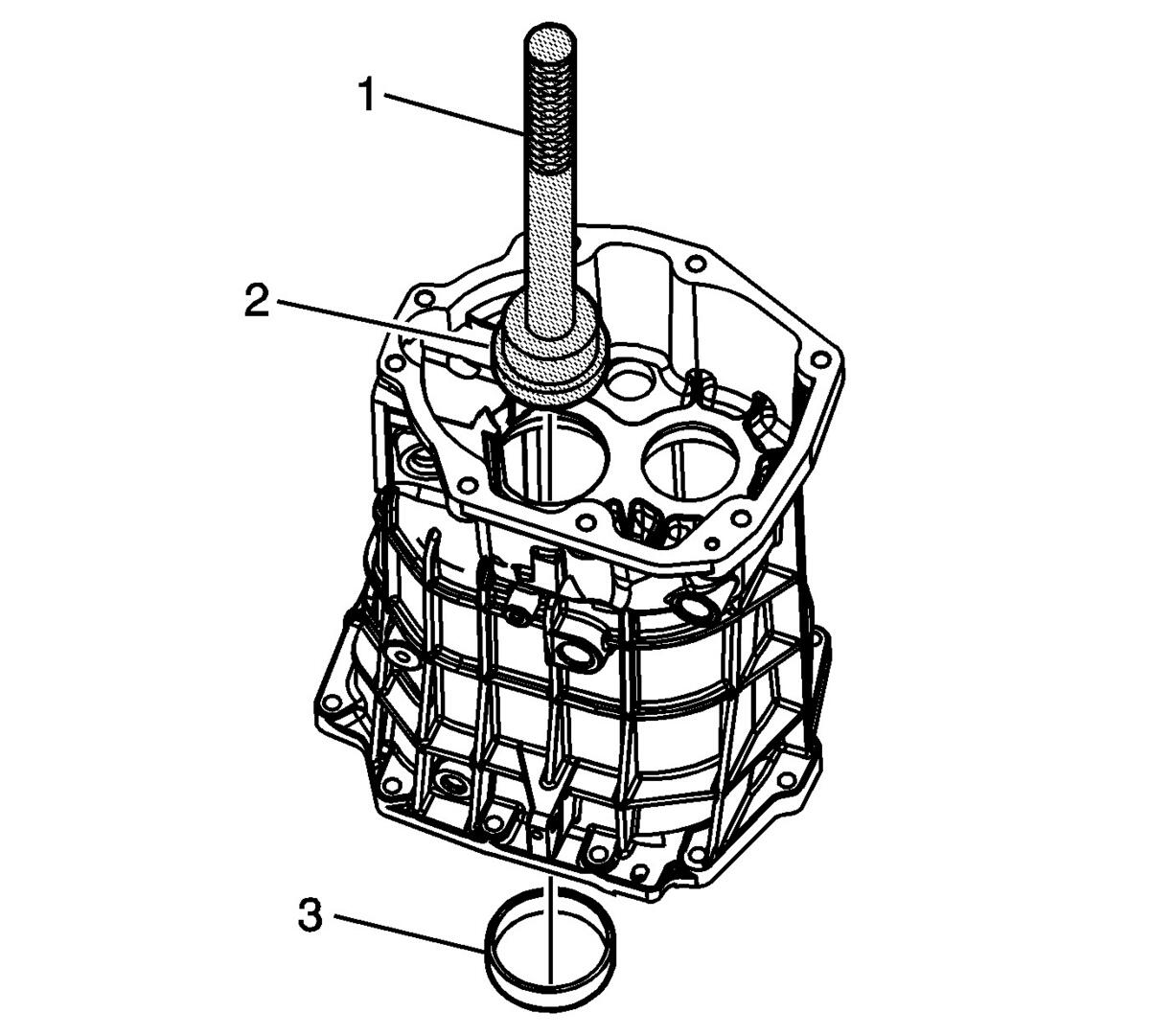

Remove the mainshaft bearing race (3), using the J 8092 drive handle (1) and the J 39790-A race remover (2).
Courtesy of GENERAL MOTORS COMPANY

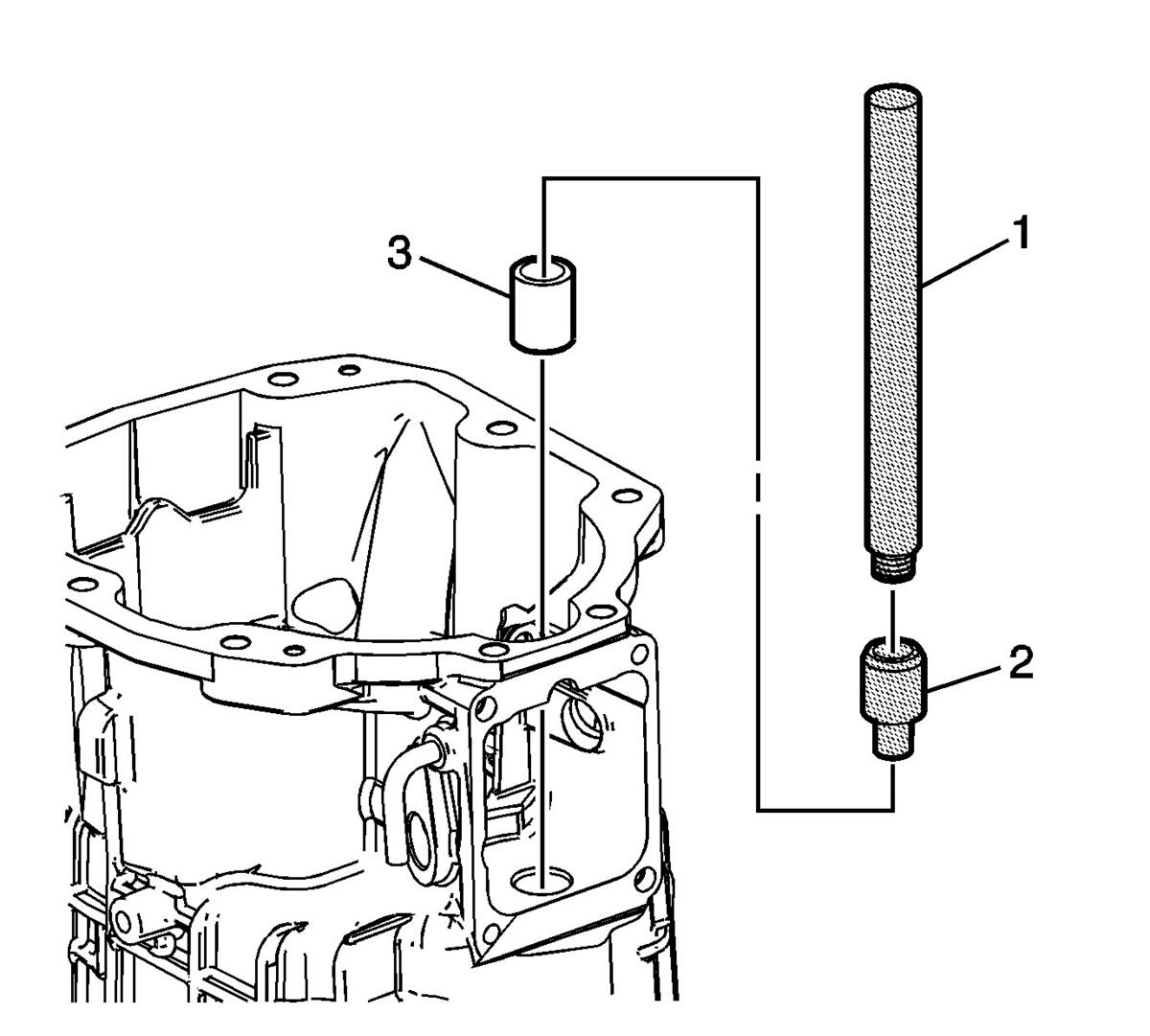

Remove the Ist/2nd and the 3rd/4th shift shaft bearing (3), using the J 36190 driver handle (1) and the J 44384 remover (2).
