Guide Plate Removal

WARNING: This page is about a different variant/trim than selected.

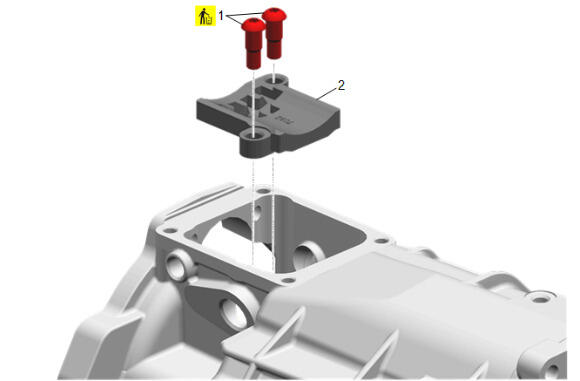

  1. GM2102249Courtesy of GENERAL MOTORS COMPANY

    Remove the detent guide plate attaching bolts (1).

  2. Remove the detent guide plate (2).
