Transmission Case Bearing Race and Shift Control Components Removal

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

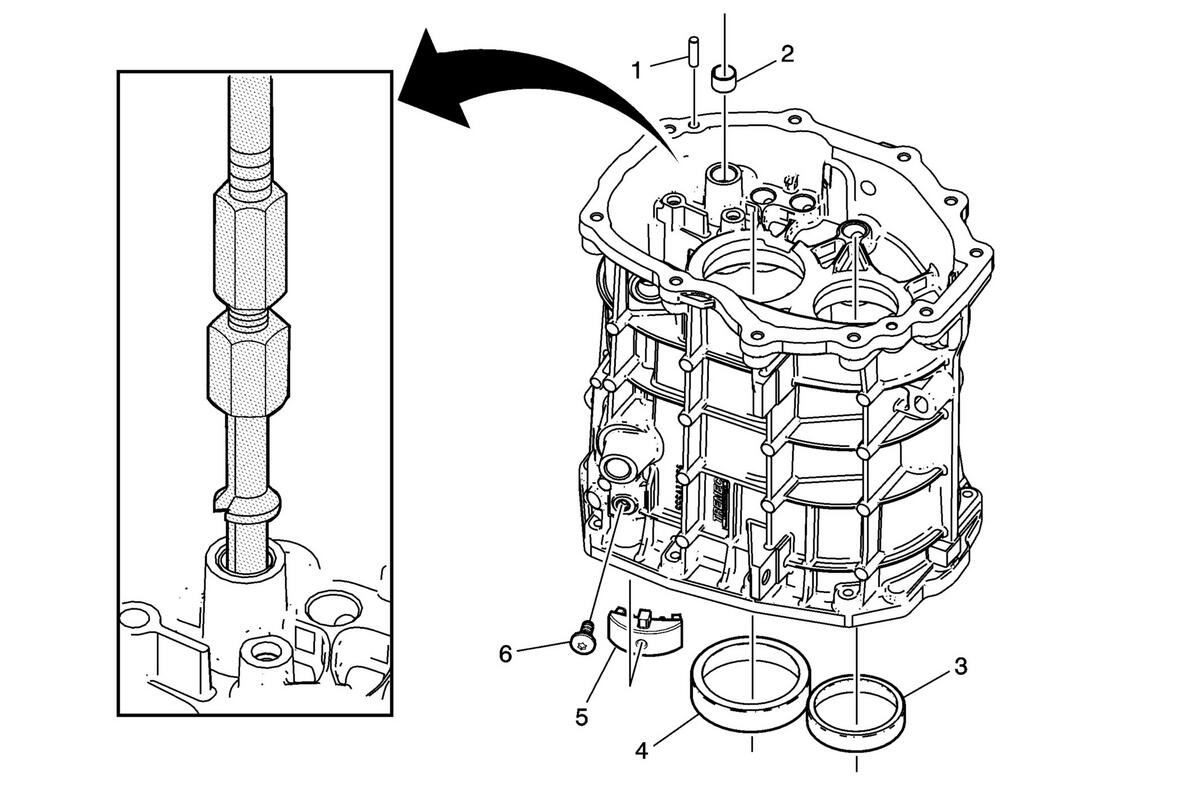

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
1	Transmission Intermediate Case Locating Pin
2	Manual Transmission Shift Lever Rod Bushing Procedure Install the DT 49216 bushing remover into the bushing. Install the J 23907-1 slide hammer into the remover. Remove the bushing. Special Tools DT 49216 Bushing Remover J 23907-1 Slide Hammer For equivalent regional tools, refer to Special Tools (M13) .
3	Counter Gear Bearing Race
4	Main Shaft Bearing Race
5	Shift Control Shaft Position Guide
6	Shift Control Shaft Position Guide Bolt/Screw
