Transmission Case Bearing Race and Shift Control Components Installation

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

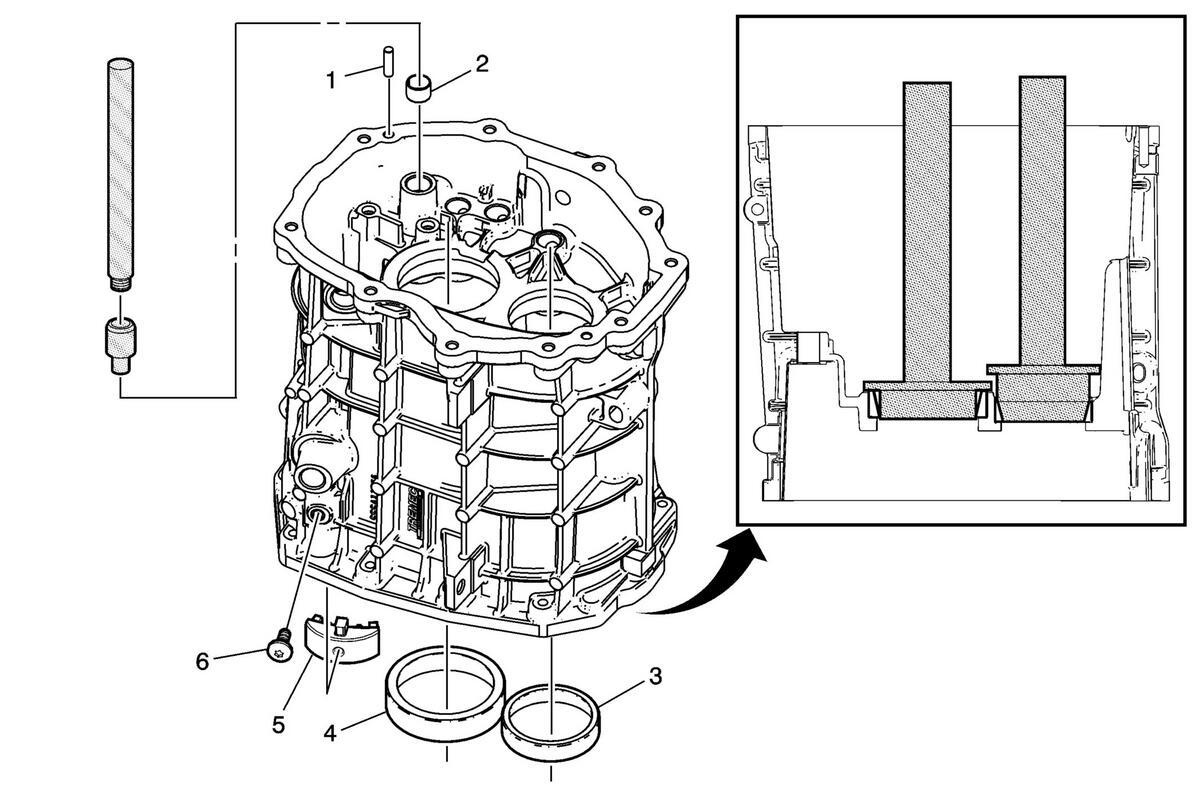

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
1	Transmission Intermediate Case Locating Pin
2	Manual Transmission Shift Lever Rod Bushing Procedure Install the J 44384 remover into the bushing. Install the J 36190 driver handle into the remover. Install the bushing. Special Tools J 36190 Driver Handle J 44384 Remover For equivalent regional tools, refer to Special Tools (M13) .
3	Counter Gear Bearing Race Procedure Install the GE 8092 driver handle into the DT 44908 bearing race installer. Install the main shaft bearing race. Special Tools GE 8092 Driver Handle DT 44908 Bearing Race Installer For equivalent regional tools, refer to Special Tools (M13) .
4	Main Shaft Bearing Race Procedure Install the GE 8092 driver handle into the DT 45870 pinion bearing cup installer. Install the main shaft bearing race. Special Tools GE 8092 Driver Handle DT 45870 Pinion Bearing Cup Installer For equivalent regional tools, refer to Special Tools (M13) .
5	Shift Control Shaft Position Guide
6	Shift Control Shaft Position Guide Bolt/Screw Tighten 12 N.m (106 lb in)
