Shift Shaft and Fork Assemblies Disassemble (MJK/MM6)

Special Tools

• J 23907  Slide Hammer
• J 39439-2  Bushing Remover

For equivalent regional tools, refer to Special Tools (MJK/MM6) .

1st/2nd, 3rd/4th Shift Rail Assembly

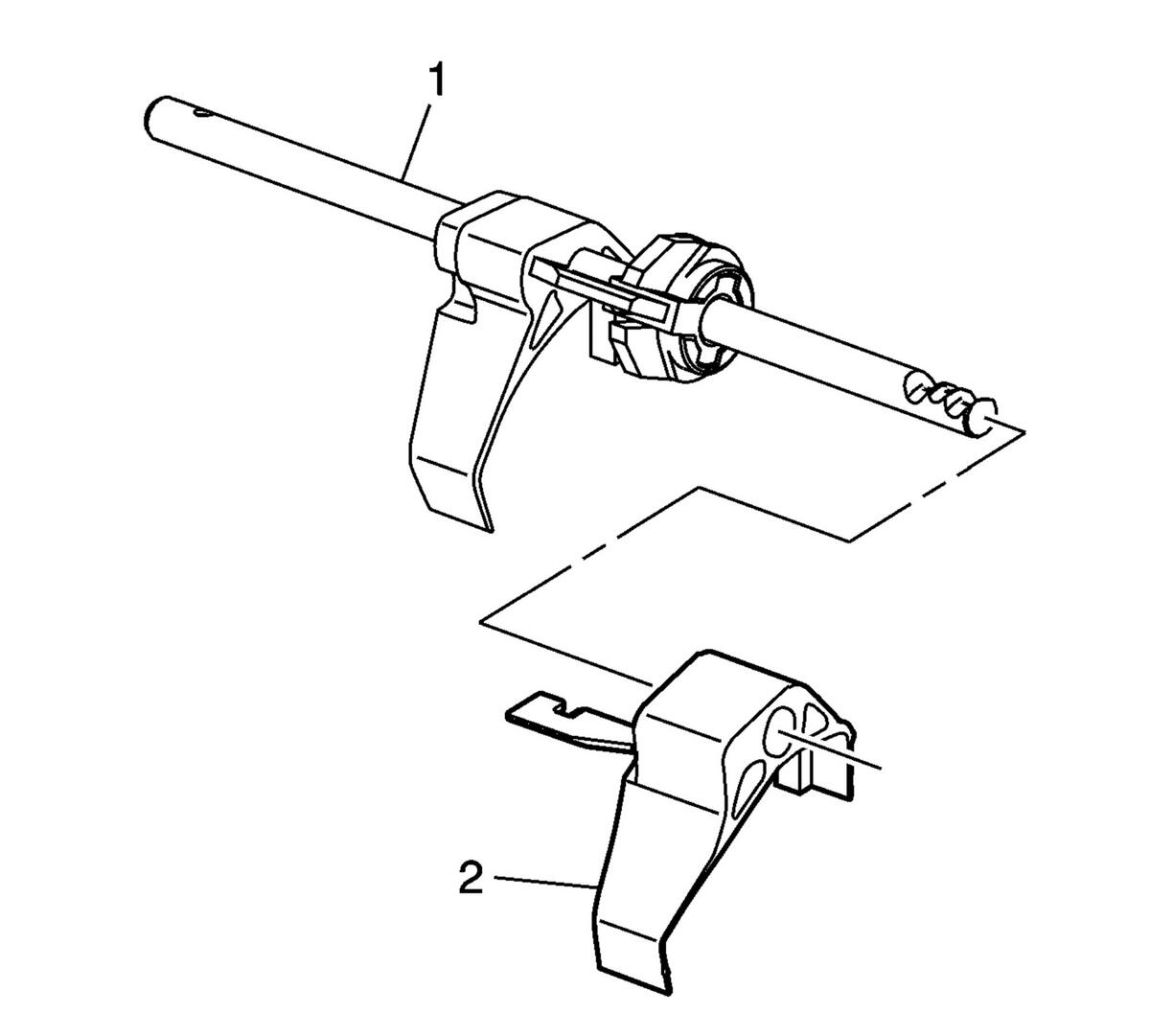

1. Courtesy of GENERAL MOTORS COMPANY

   Remove the 3rd/4th shift fork (2) from the shift shaft (1).

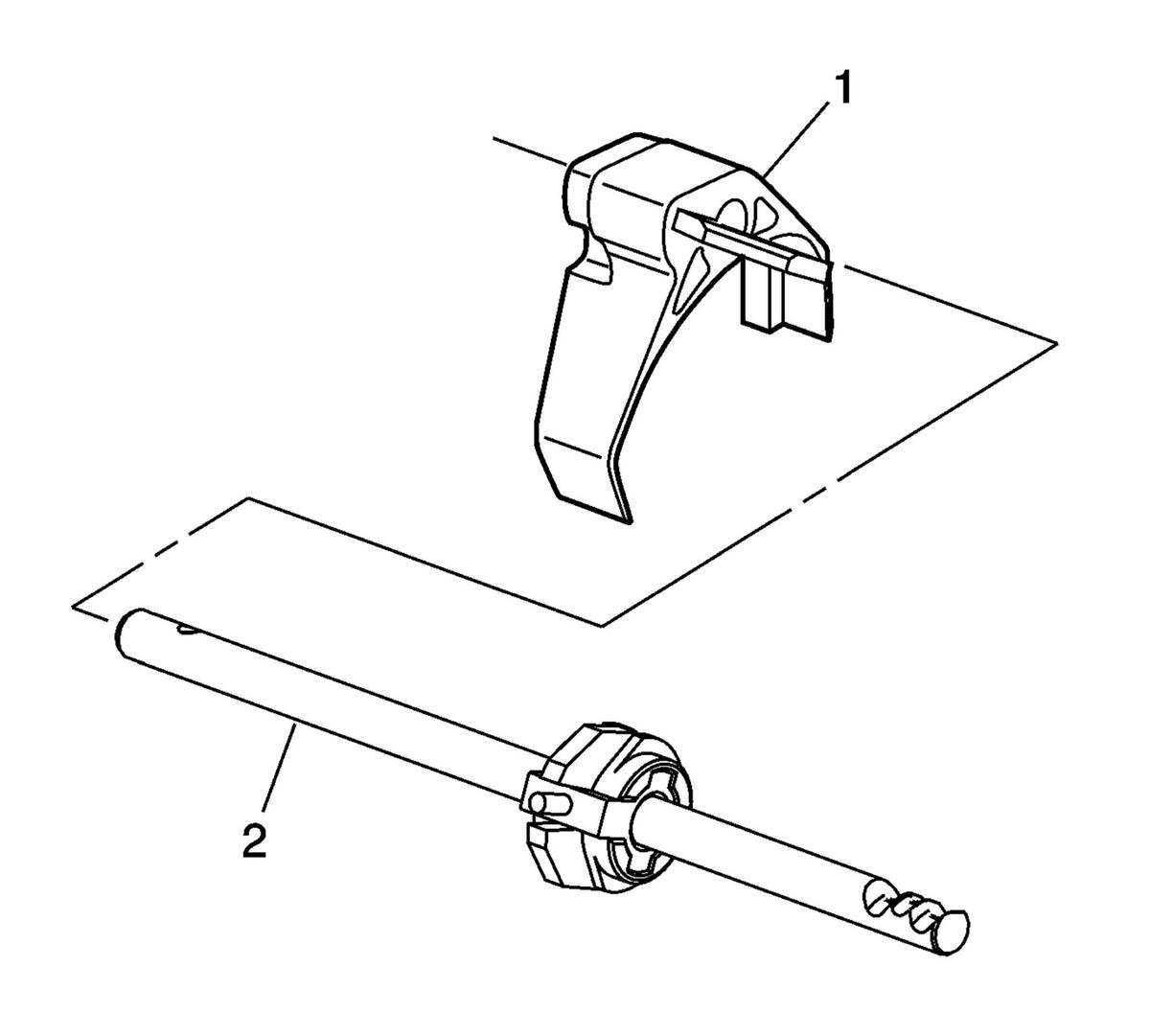

2. Courtesy of GENERAL MOTORS COMPANY

   Remove the 1st/2nd shift fork (1) from the shift shaft (2).

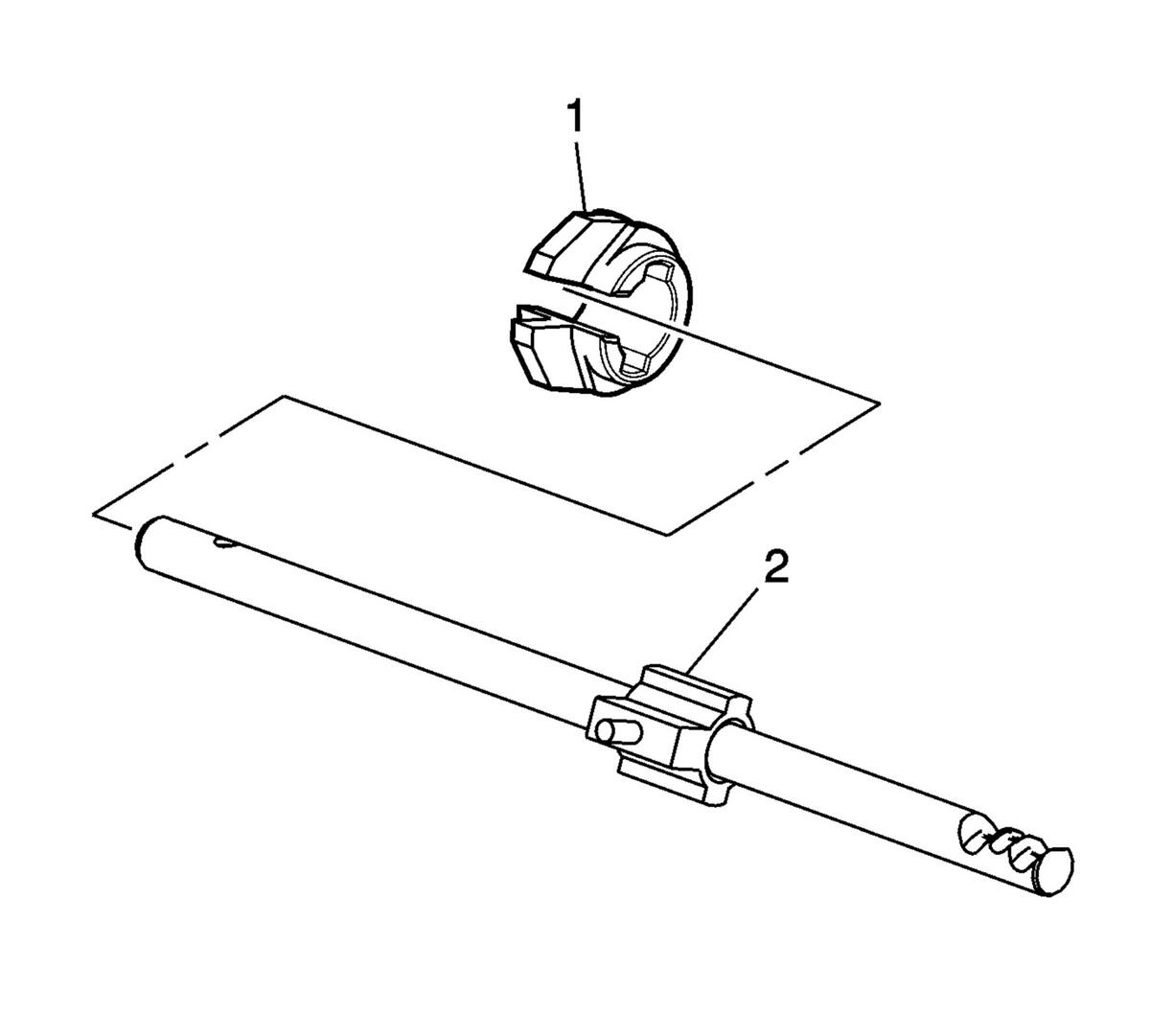

3. Courtesy of GENERAL MOTORS COMPANY

   Remove the interlock plate (1) from the selector pin (2).

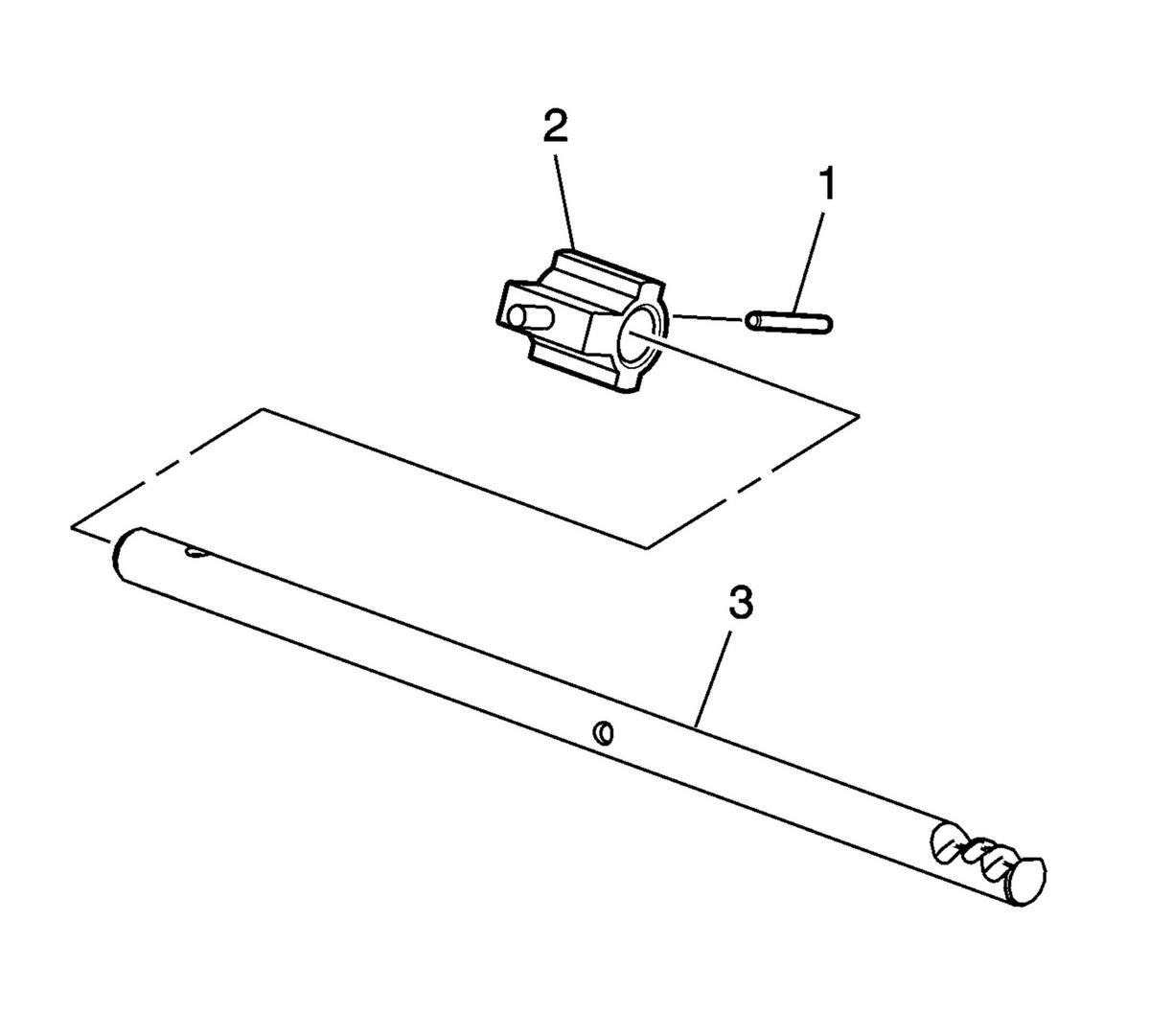

4. Courtesy of GENERAL MOTORS COMPANY

   Remove the selector roll pin (1).

5. Remove the selector pin (2) from the shift shaft (3).

5th/6th, Reverse Shift Rail Assembly

1. Courtesy of GENERAL MOTORS COMPANY

   Remove the reverse shift collar pin (1).

2. Remove the reverse shift lever collar (2).
3. Remove the reverse shift lever pin (3).

4. Courtesy of GENERAL MOTORS COMPANY

   Remove the reverse shift lever (2) from the shift shaft (1).

5. Courtesy of GENERAL MOTORS COMPANY

   Remove the 5th/6th shift lever (2) from the shift shaft (1).

6. Courtesy of GENERAL MOTORS COMPANY

   Remove the snap ring (2) from the 5th/6th shift lever (1).

7. Courtesy of GENERAL MOTORS COMPANY

   NOTE:

   Do not replace the bushings unless inspection shows bushing damage.

   Remove the shift shaft bushings (1, 3) from the 5th/6th and reverse shift lever (2) using the J 23907  slide hammer (5) and the J 39439-2  remover (4).
