3rd Speed Drive Gear Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:

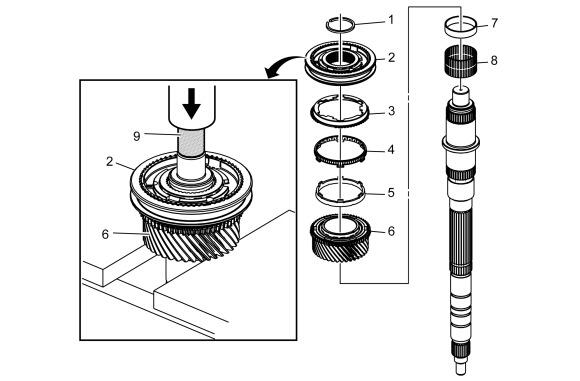

Callouts items in the following chart represent components shown in graphic above.
3rd Speed Drive Gear Removal
| Callout | Component Name |
|---|---|
| 1 | 3rd/4th Synchronizer Retaining Ring |
| 2 | 3rd/4th Synchronizer Assembly |
| 3 | 3rd Speed Drive Gear Synchronizer Blocking Ring |
| 4 | 3rd Speed Drive Gear Friction Cone |
| 5 | 3rd Speed Drive Gear Inner Cone |
| 6 | 3rd Speed Drive Gear Special Tools J-39473 Main Shaft Bearing Installer For equivalent regional tools, refer to Special Tools (MJK/MM6) . |
| 7 | 3rd Speed Drive Gear Bearing Spacer |
| 8 | 3rd Speed Drive Gear Needle Bearing |
