1st Speed Drive Gear Blocking Ring Assembly Removal
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:

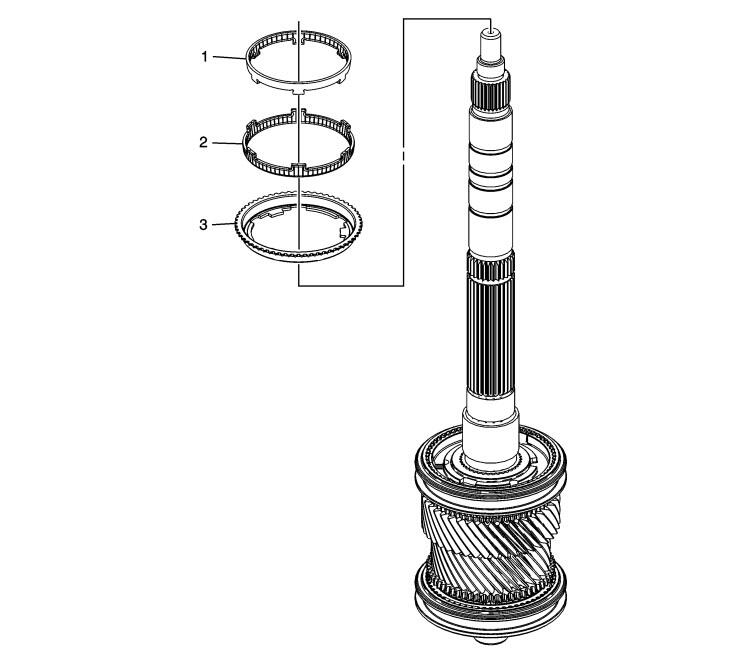

Callouts items in the following chart represent components shown in graphic above.
1st Speed Drive Gear Blocking Ring Assembly Removal
| Callout |
Component Name |
| 1 |
1st Speed Drive Gear Inner Cone |
| 2 |
1st Speed Drive Gear Friction Cone |
| 3 |
1st Speed Drive Gear Synchronizer Blocking Ring |
