1st Gear Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:

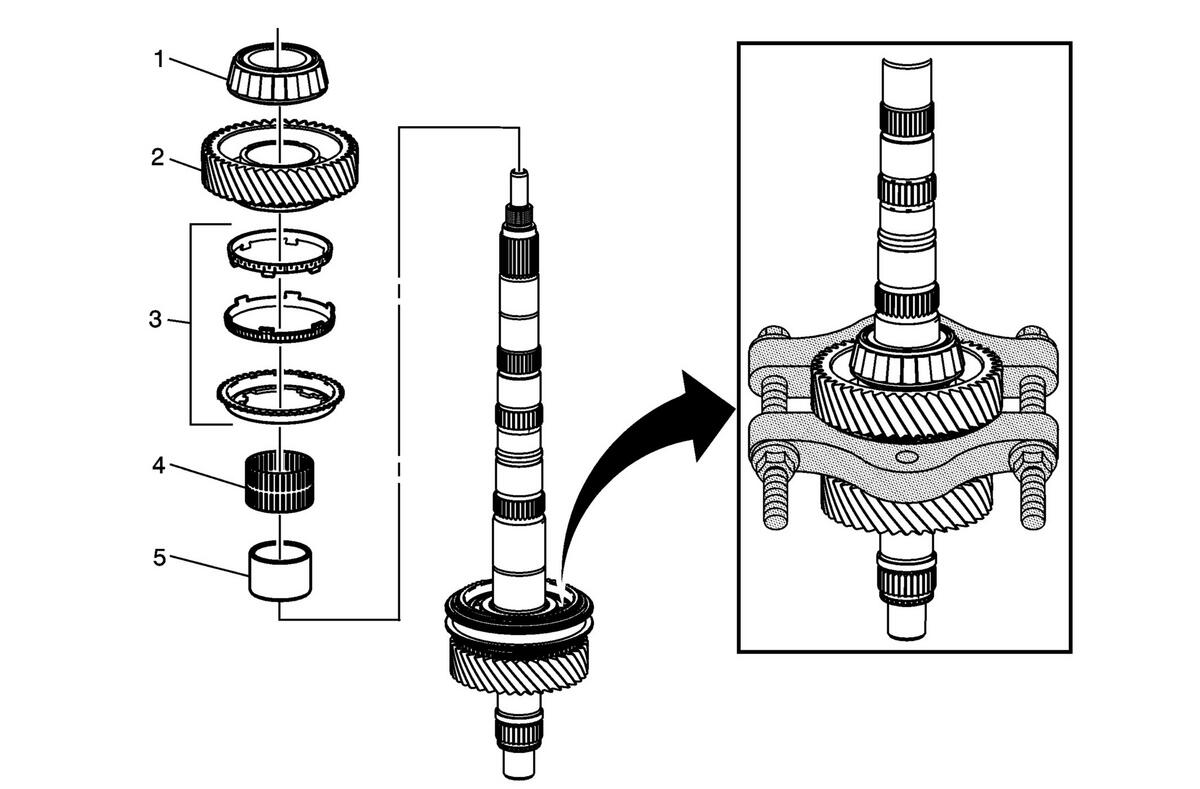

Callouts items in the following chart represent components shown in graphic above.
1st Gear Removal
| Callout | Component Name |
|---|---|
| 1 | Main Shaft Rear Bearing Assembly |
| 2 | 1st Gear Assembly (Driven) Procedure
Special Tools DT 36513 Gear and Bearing Separator Plate For equivalent regional tools, refer to Special Tools (M13) . |
| 3 | 1st Gear Blocking Ring Assembly |
| 4 | 1st Gear Bearing Assembly (Driven) |
| 5 | 1st Gear Bushing |
