Input Shaft Bearing Installation

WARNING: This page is about a different variant/trim than selected.

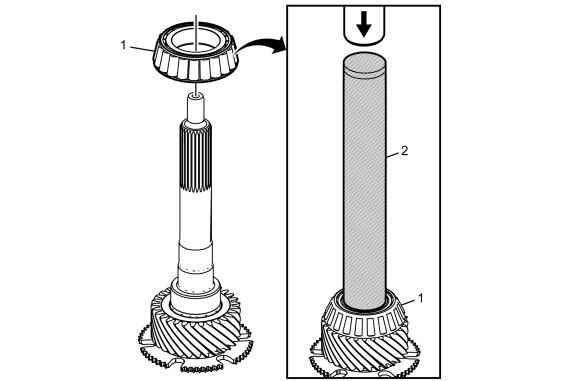

GM3212460Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Input Shaft Bearing Installation

Callout Component Name
1 Input Shaft Bearing
Special Tools
J-44735  Installation Tube
For equivalent regional tools, refer to Special Tools (MJK/MM6) .
