2nd Speed Drive Gear Installation

WARNING: This page is about a different variant/trim than selected.

GM3212468

Courtesy of GENERAL MOTORS COMPANY

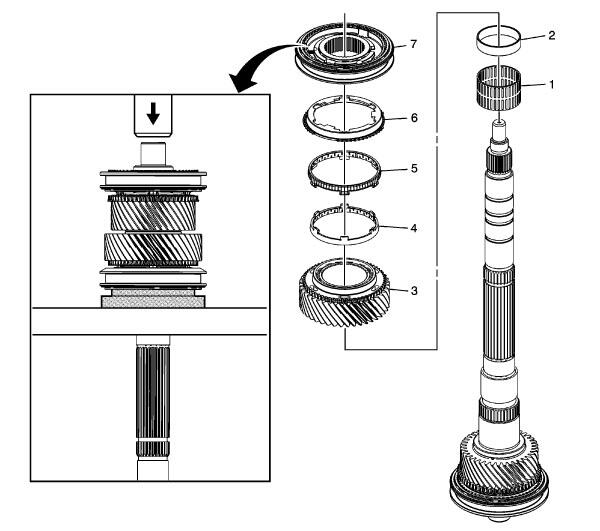

NOTE: Callouts items in the following chart represent components shown in graphic above.

2nd Speed Drive Gear Installation

Callout	Component Name
1	2nd Speed Drive Gear Needle Bearing
2	2nd Speed Drive Gear Bearing Spacer
3	2nd Speed Drive Gear
4	2nd Speed Drive Gear Inner Cone
5	2nd Speed Drive Gear Friction Cone
6	2nd Speed Drive Gear Synchronizer Blocking Ring NOTE: Ensure the tabs on the blocking ring align with the corresponding pockets in the synchronizer hub. Click video link above for reference.
