1st Speed Drive Gear Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:

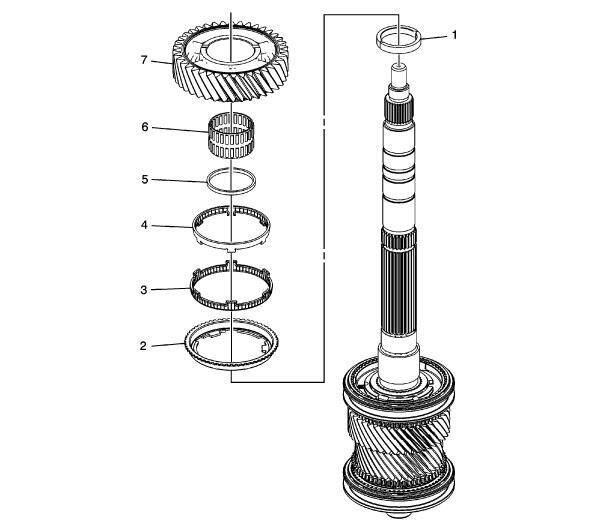

Callouts items in the following chart represent components shown in graphic above.
1st Speed Drive Gear Installation
| Callout | Component Name |
|---|---|
| 1 | 1st Speed Drive Gear Two Piece Washer |
| 2 | 1st Speed Drive Gear Synchronizer Blocking Ring
NOTE:
Ensure the tabs on the blocking ring align with the corresponding pockets in the synchronizer hub. Click video link above for reference. |
| 3 | 1st Speed Drive Gear Friction Cone |
| 4 | 1st Speed Drive Gear Inner Cone |
| 5 | 1st Speed Drive Gear Locking Ring |
| 6 | 1st Speed Drive Gear Needle Bearing |
| 7 | 1st Speed Drive Gear |
