1st Gear Installation

WARNING: This page is about a different variant/trim than selected.

GM2828228

Courtesy of GENERAL MOTORS COMPANY

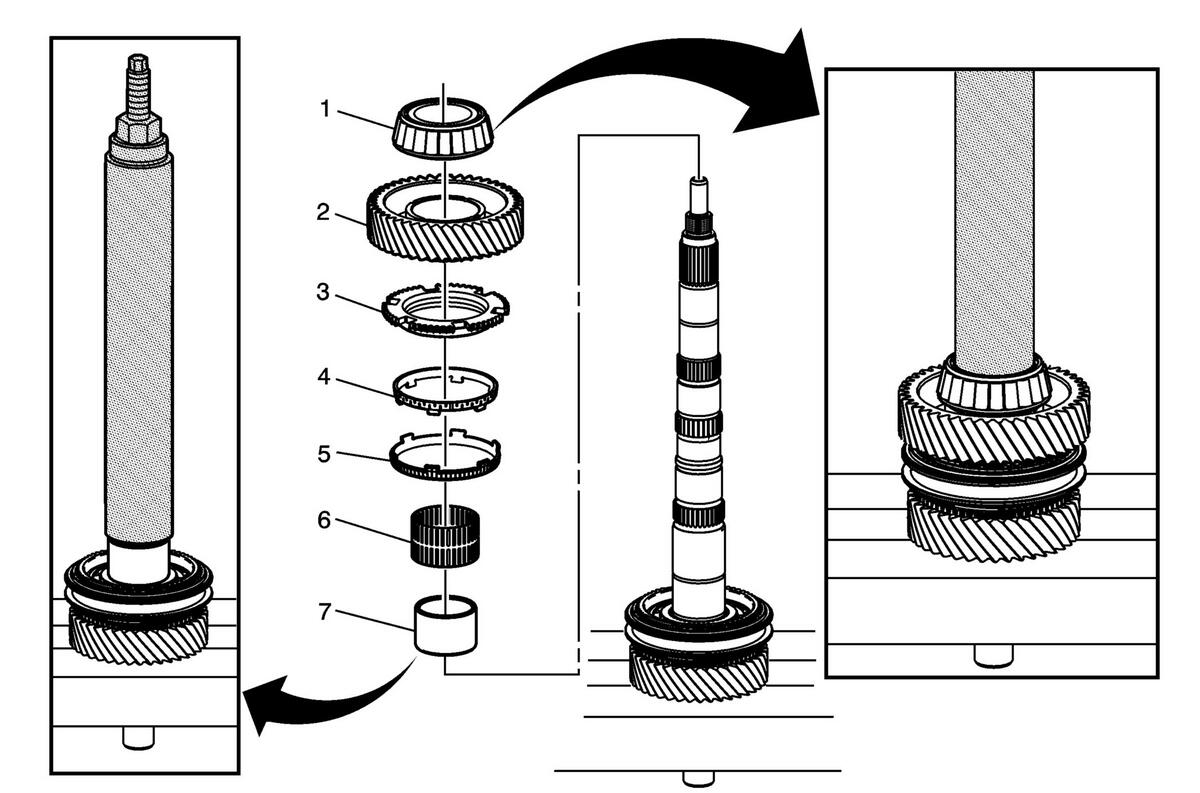

NOTE: Callouts items in the following chart represent components shown in graphic above.

1st Gear Installation

Callout	Component Name
1	Main Shaft Rear Bearing Assembly Procedure Using the DT-51076 bearing and gear installer install the bearing onto the main shaft. Special Tools DT-51076 Bearing And Gear Installer For equivalent regional tools, refer to Special Tools (M13) .
2	1st Gear Assembly
3	1st Gear Blocking Ring Assembly NOTE: Ensure the tabs on the blocking ring align with the corresponding pockets in the synchronizer hub. Click video link above for reference.
4	1st Gear Blocking Ring Assembly
5	1st Gear Blocking Ring Assembly
6	1st Gear Bearing Assembly
7	1st Gear Bearing Race Procedure Using the DT-51076 bearing and gear installer install the race onto the main shaft. Special Tools DT-51076 Bearing And Gear Installer For equivalent regional tools, refer to Special Tools (M13) .
