Front Bearing Removal

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

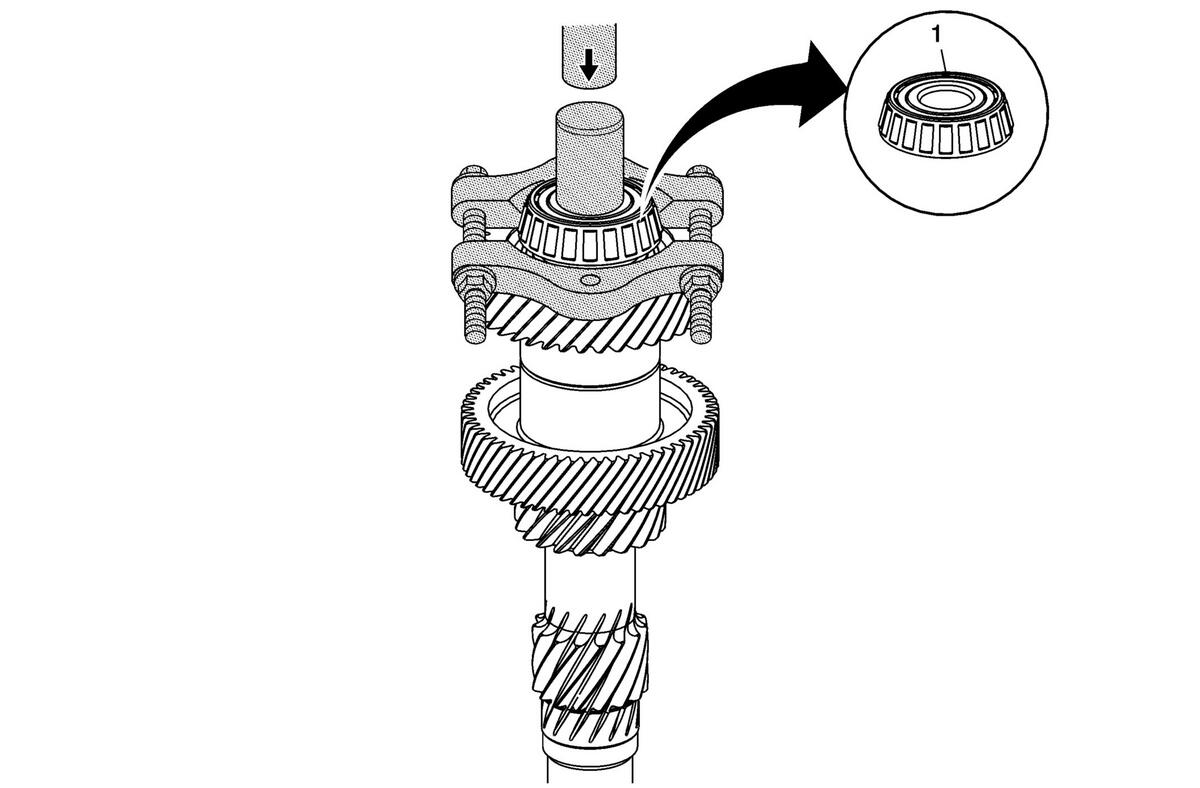

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
1	Counters Gear Front Bearing Assembly Procedure Remove the counter gear front bearing, using the DT 22912-B split plate bearing puller with the DT 46627 pump seal installer, and a hydraulic press Special Tools DT 22919-B Split Plate Bearing Puller DT 46627 Pump Seal Installer For equivalent regional tools, refer to Special Tools (M13) .

Callout

Component Name

Counters Gear Front Bearing Assembly

Procedure

Remove the counter gear front bearing, using the DT 22912-B split plate bearing puller with the DT 46627 pump seal installer, and a hydraulic press

Special Tools
DT 22919-B Split Plate Bearing Puller
DT 46627 Pump Seal Installer
For equivalent regional tools, refer to Special Tools (M13) .
