Counter Gear Shaft Assemble (MJK/MM6)

WARNING: This page is about a different variant/trim than selected.

Special Tools

J 38205-1 Press Tube

For equivalent regional tools, refer to Special Tools (MJK/MM6) .

Courtesy of GENERAL MOTORS COMPANY

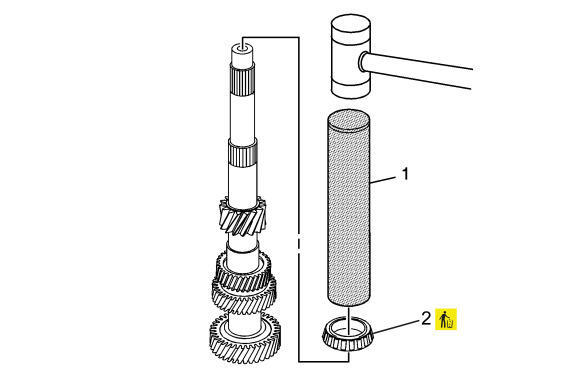

Install a NEW countershaft rear bearing, using the J 38205-1 press tube (1) and a rubber mallet.
Courtesy of GENERAL MOTORS COMPANY

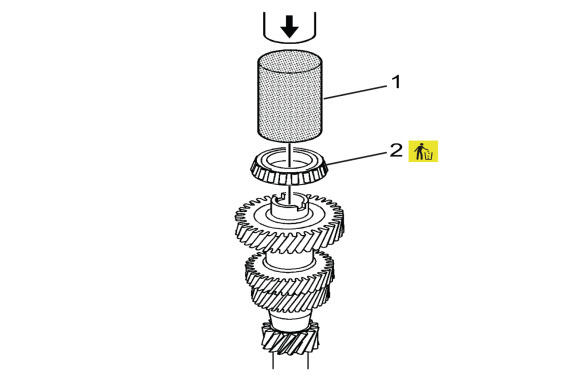

Install a NEW countershaft front bearing, using the J 38205-1 press tube and a hydraulic press.
