Bearing Installation

WARNING: This page is about a different variant/trim than selected.

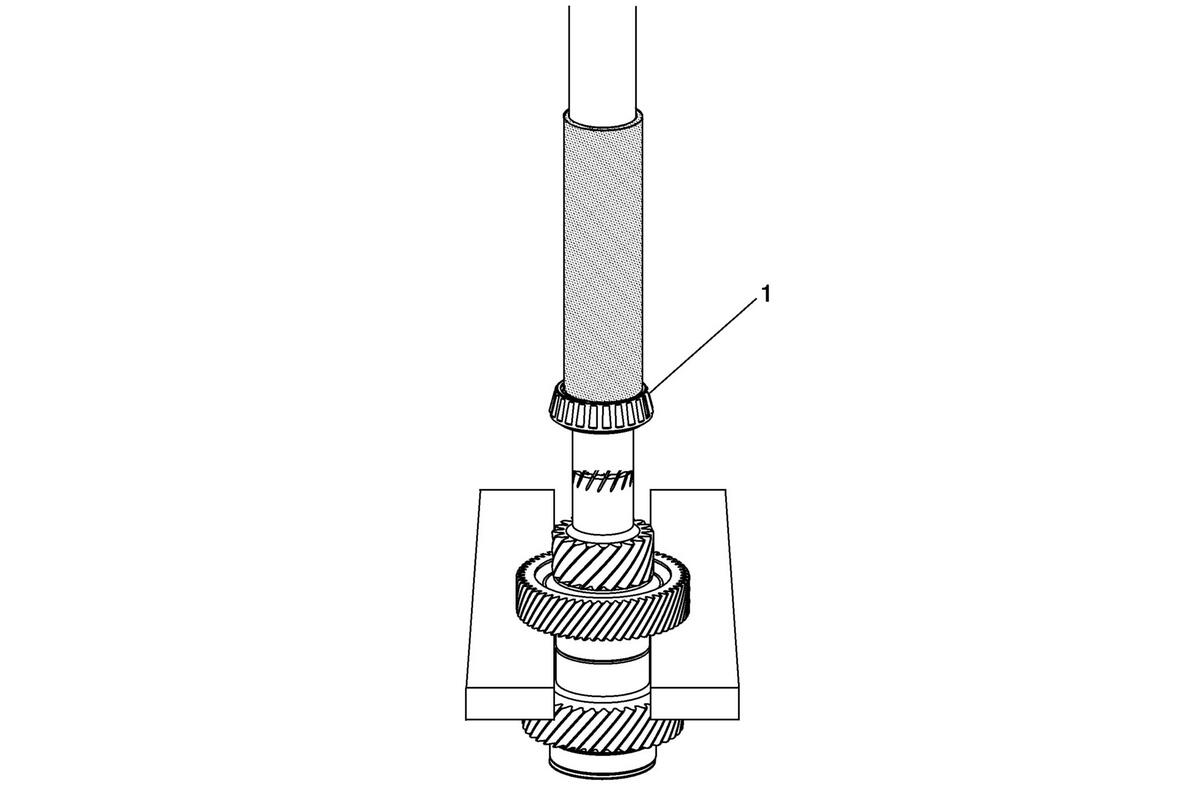

GM2828299Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Bearing Installation

Callout Component Name
1 Counter Gear Bearing Assembly

Procedure

  1. Install the counter gear bearing, using the DT 25234  gear and bearing installer with a hydraulic press.

Special Tools
DT 25234  Gear and Bearing Installer
For equivalent regional tools, refer to Special Tools (M13) .
