Section 10 (Engine Controls And Fuel - 3.6L - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>

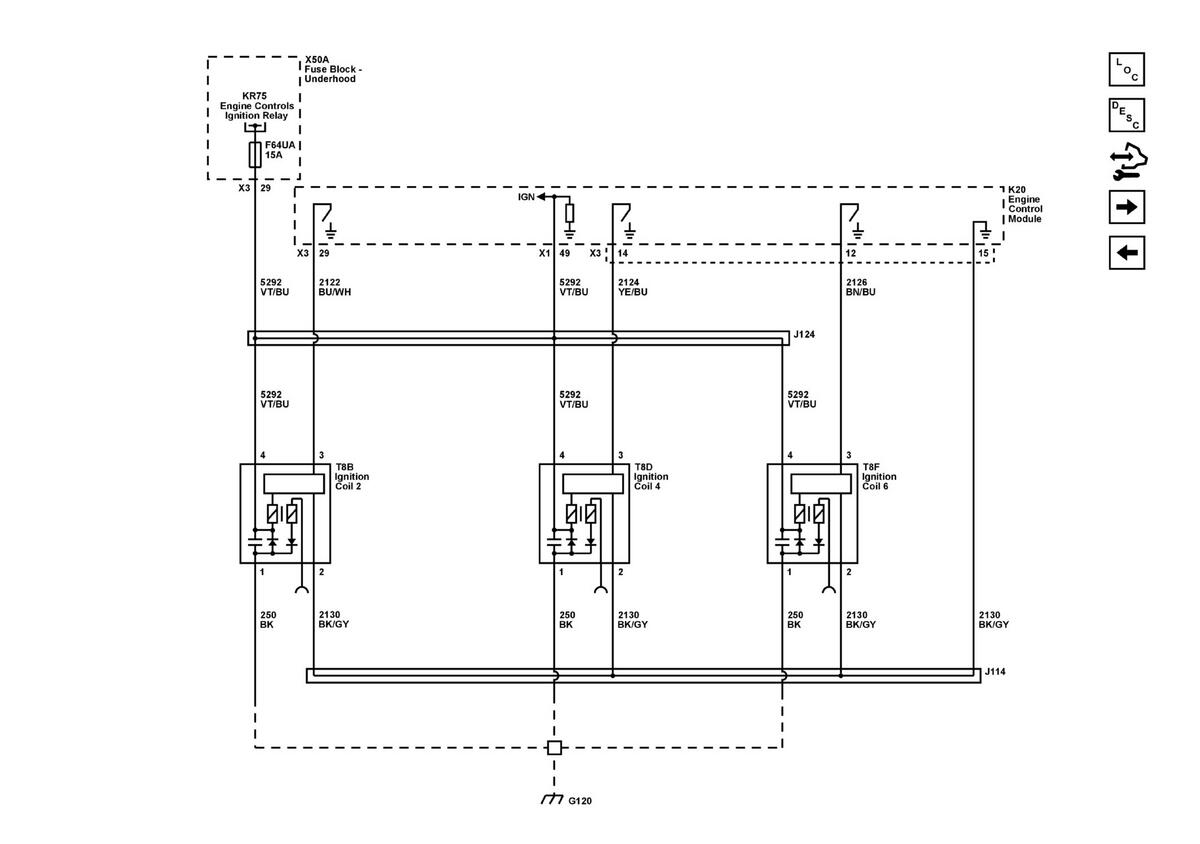

Ignition Controls - Bank 2 Ignition System
Ignition Controls - Bank 2 Ignition System
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
