Section 10 (Engine Controls And Fuel - 3.6L - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>

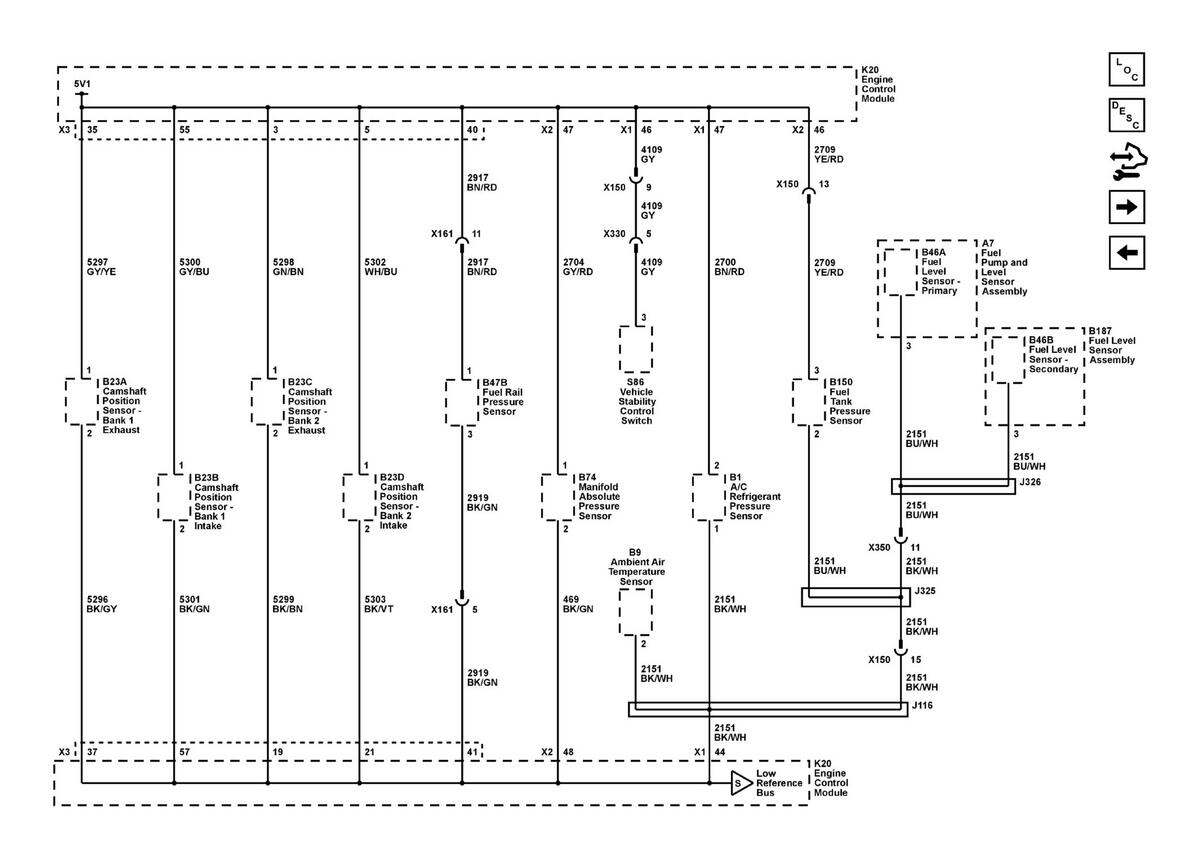

5V1 and Low Reference Bus - 1 of 2
5V1 and Low Reference Bus - 1 of 2
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
