Hood Rear Outer Air Inlet Seal Replacement

Courtesy of GENERAL MOTORS COMPANY

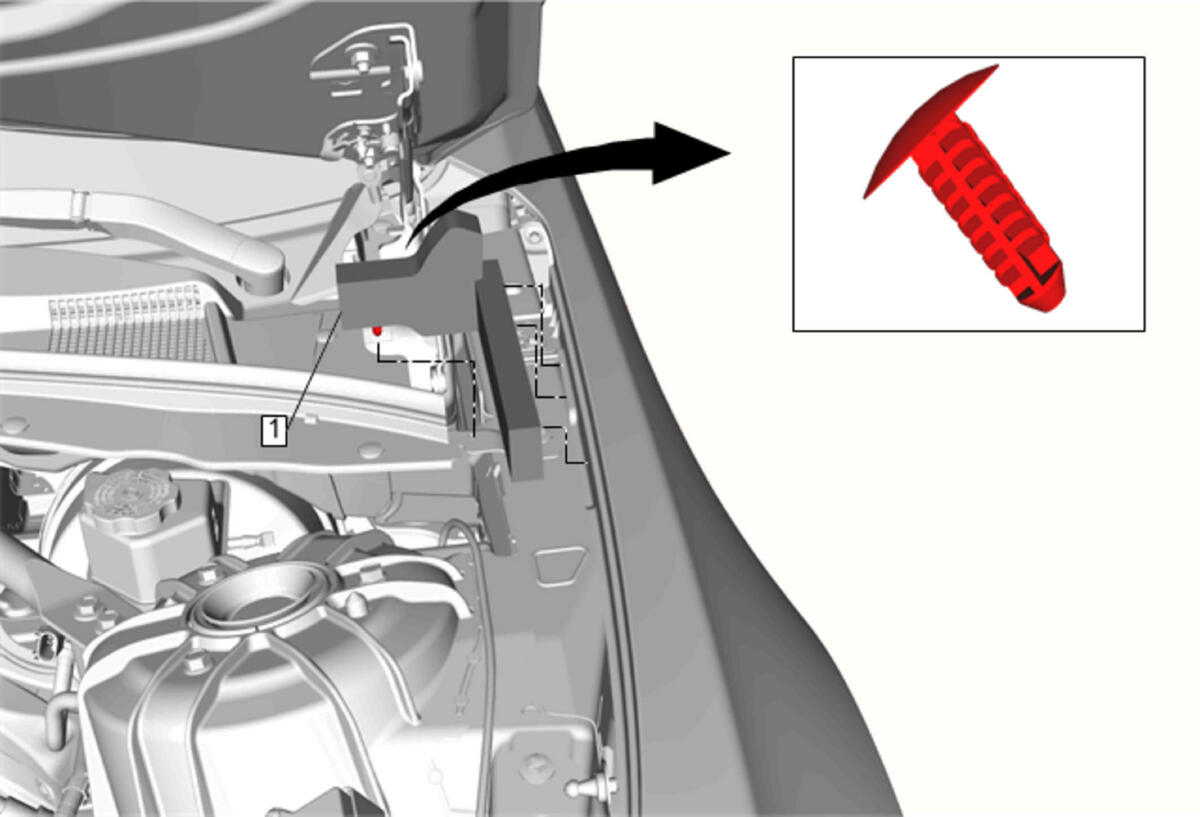

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
1	Hood Rear Outer Air Inlet Seal Procedure  Using a trim type tool, release the retainer and gentle pull on the seal to remove the seal from under the front fender.
