SIR Wiring Schematics

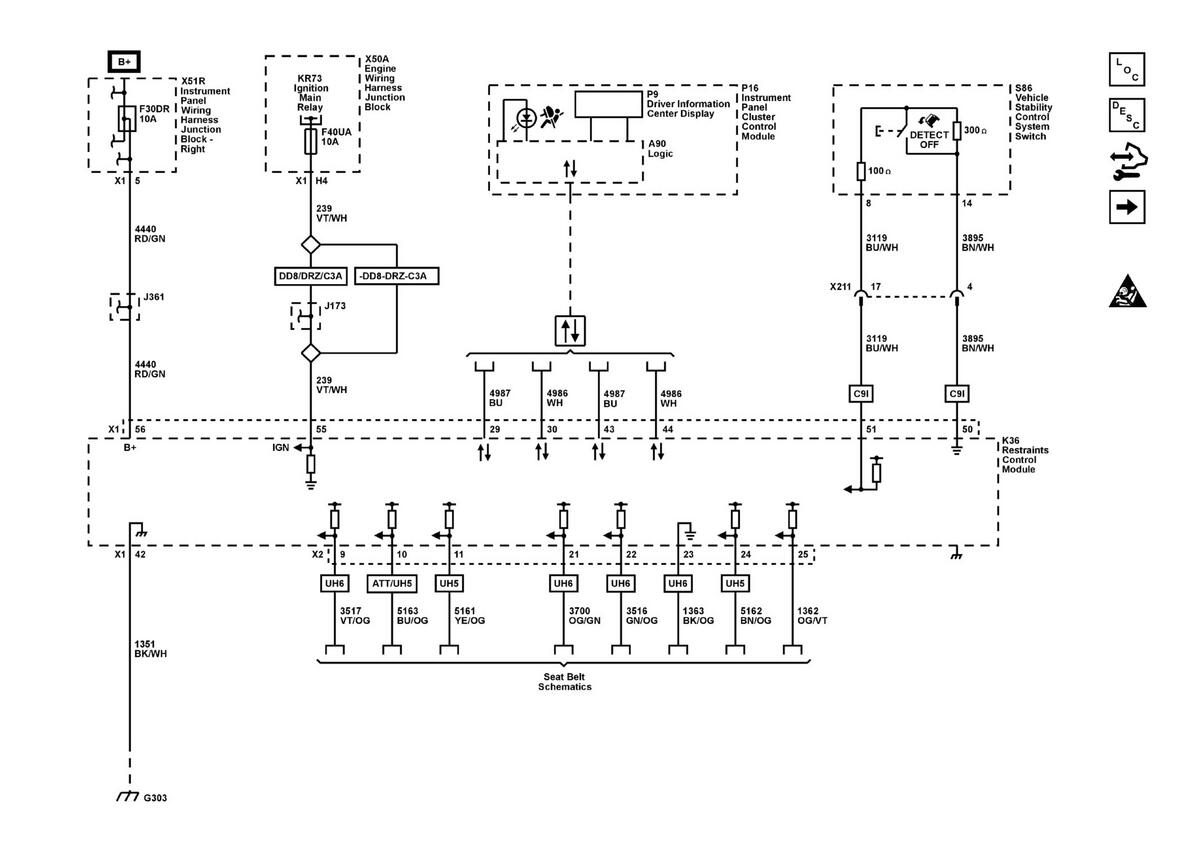

Fig 1: Module Power, Ground, Serial Data, Controls, Indicators, and Subsystem References
GM5998459Courtesy of GENERAL MOTORS COMPANY

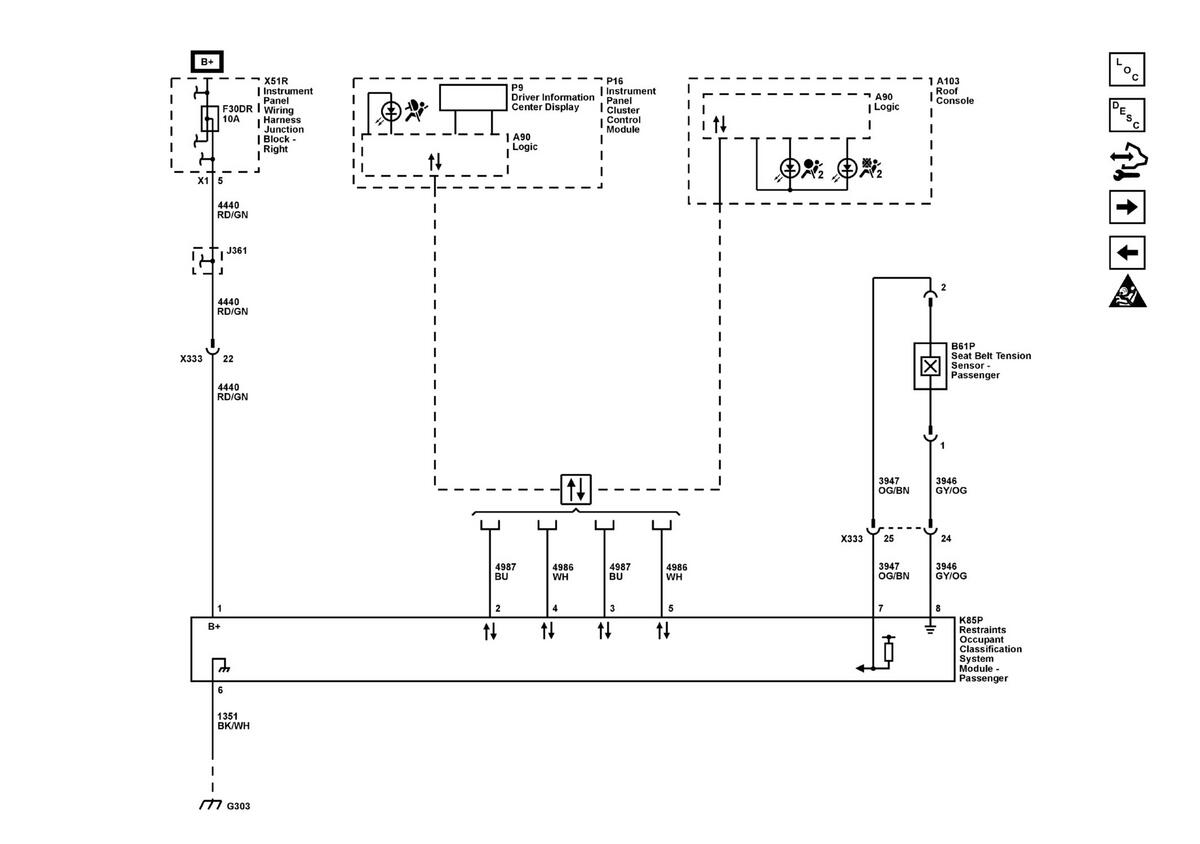

Fig 2: Passenger Presence Module
GM5998460Courtesy of GENERAL MOTORS COMPANY

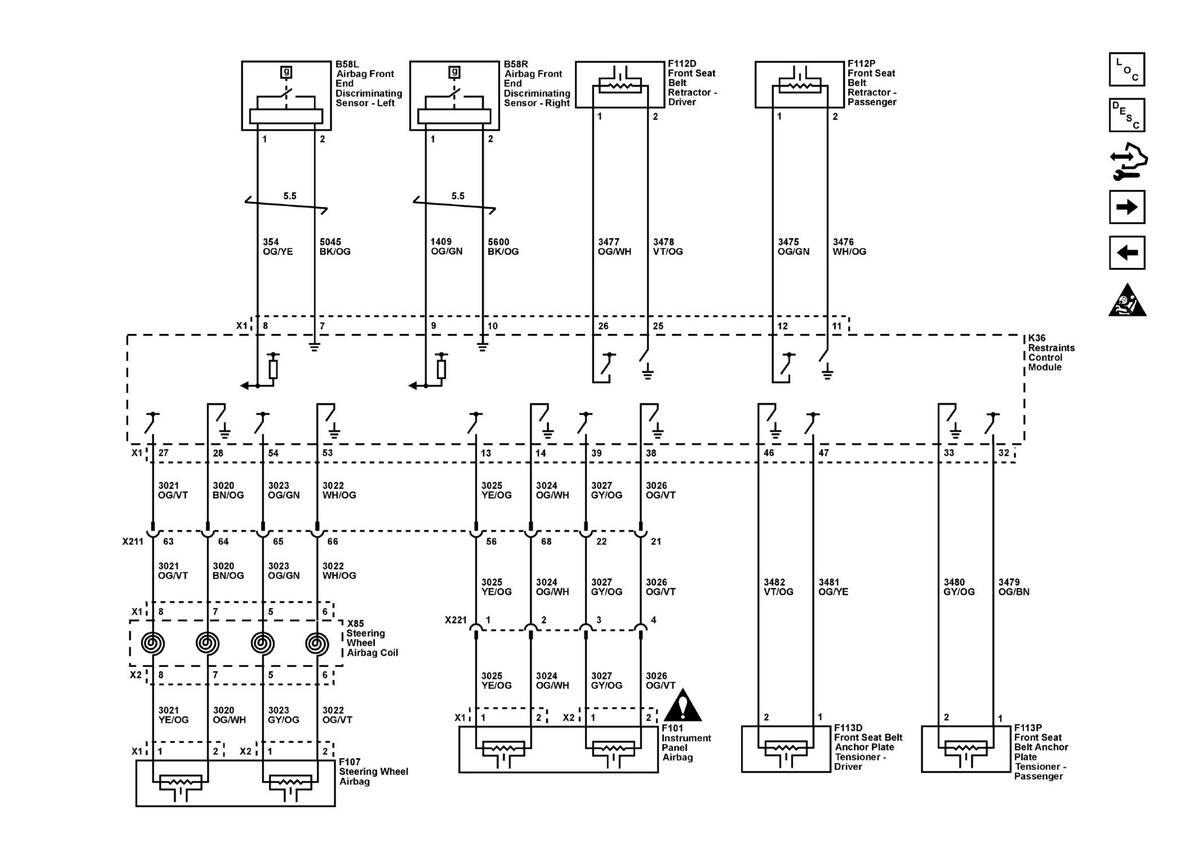

Fig 3: Frontal Impact Sensing and Deployment
GM5998461Courtesy of GENERAL MOTORS COMPANY

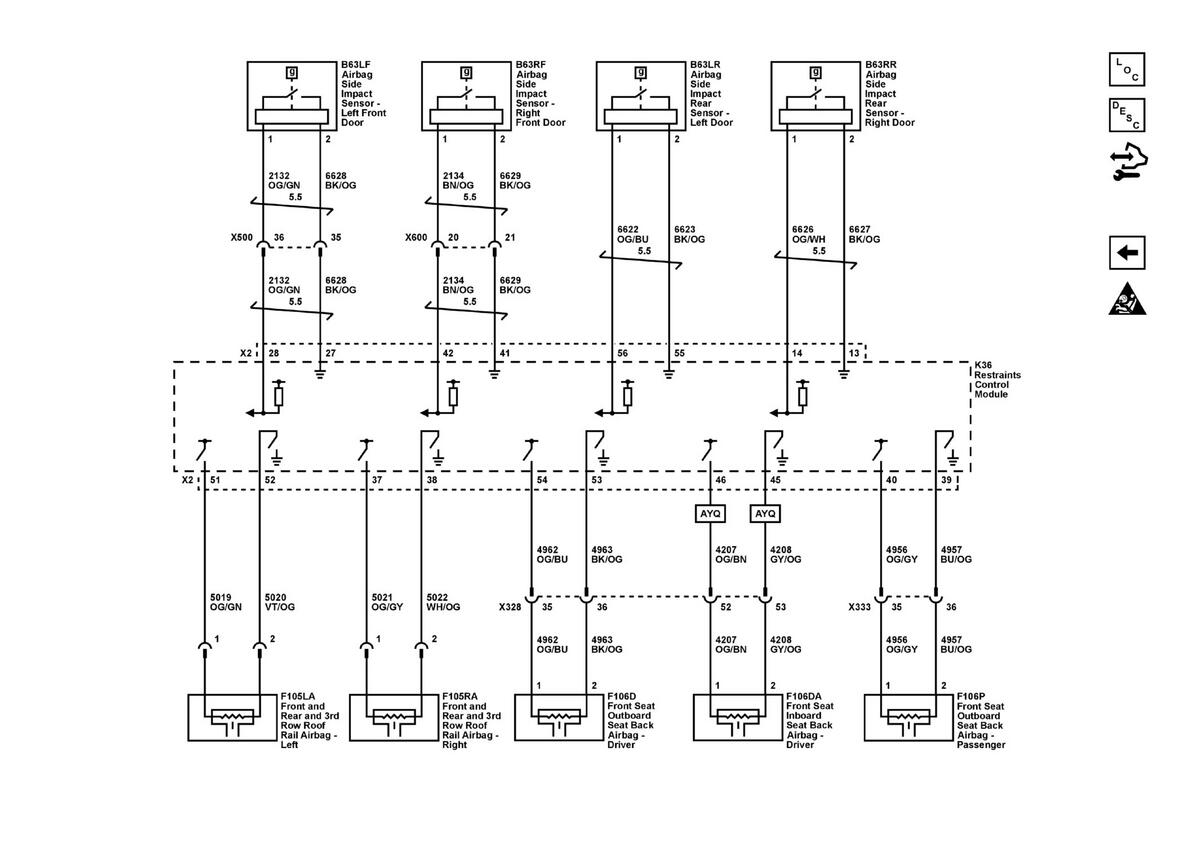

Fig 4: Side Impact Sensing and Deployment
GM5998462Courtesy of GENERAL MOTORS COMPANY
