Emission Reduction Fluid Tank Draining
- Cleanliness of the diesel exhaust fluid (DEF) system is crucial to ensure proper operation. Before opening any part of the DEF system, ensure connections and joints are thoroughly clean and dry of any dirt, debris, or other contaminants. Use only low pressure water and low pressure air, as directed.
- Diesel exhaust fluid (DEF) will have a tendency over time to develop areas of dried crystallization residue. Crystallization residue is a normal process for this fluid. Dried DEF crystallization residue can be wiped away, or flushed away with clean water, depending on location of the crystallization.
- Ensure the ignition is OFF.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Using only a Low pressure clean water hose, spray the upper surfaces of the emission reduction fluid tank and pump supply module, the injection hose, and the fill hose assembly, to remove all dirt and debris.
- Using only a low pressure air wand or air gun, direct air along the same surfaces to both dry and remove any further contaminants.
- Using a clean white shop towel, carefully dry connections and joints by hand to ensure dryness and cleanliness.

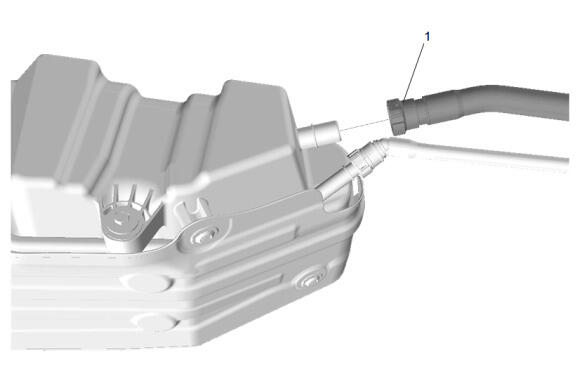

Emission Reduction Fluid Tank Filler Pipe (1) - Disconnect - Plastic Collar Quick Connect Fitting Service
- Insert the hose from the pump devise into the emission reduction fluid tank.
- Using a hand or air operated pump device, drain as much emission reduction fluid from the tank as possible into an approved container and dispose of properly.
- Emission Reduction Fluid Tank Filler Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service
The diesel exhaust fluid (DEF) system is part of the emission system for this vehicle, and must be serviced while observing extreme care to prevent foreign contamination of any kind from entering this system. If extreme care is NOT taken to prevent contamination from dirt, debris, fluids other than DEF, etc., reduced performance and/or damage to the DEF system may result.
The diesel exhaust fluid (DEF) must be drained by a clean dedicated siphoning pump and hose. It must NOT have any traces of gasoline, diesel fuel, or any oil based substances. If extreme care is NOT taken to prevent contamination from fluids other than DEF, reduced performance and/or damage to the DEF system may result.
