Intake Manifold and Components
WARNING: This page is about a different variant/trim than selected.
NOTE:

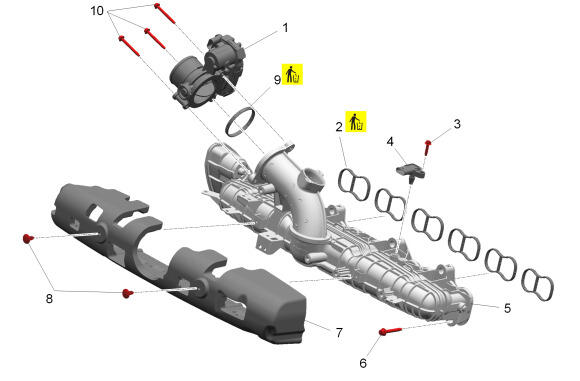

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Throttle Body |
| 2 | Intake Manifold Runner Control Valve Gasket [6x] |
| 3 | Intake Air Pressure and Temperature Sensor Bolt |
| 4 | Intake Air Pressure and Temperature Sensor |
| 5 | Intake Manifold |
| 6 | Intake Manifold Bolt [9x] |
| 7 | Intake Manifold Cover |
| 8 | Intake Manifold Cover Retainer [2x] |
| 9 | Throttle Body Gasket |
| 10 | Throttle Body Bolt [3x] |
