Fuel Injection and Components
WARNING: This page is about a different variant/trim than selected.
NOTE:

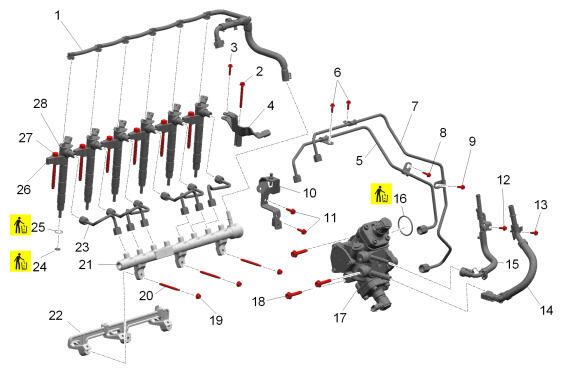

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Fuel Injection Fuel Return Pipe |
| 2 | Fuel Injection Fuel Feed and Return Pipe Retainer Bolt |
| 3 | Fuel Feed Pipe Clip Bolt |
| 4 | Fuel Injection Fuel Feed Pipe Bracket |
| 5 | High Pressure Diesel Fuel Feed to Rail Pipe |
| 6 | Fuel Feed Pipe Clip Bolt |
| 7 | High Pressure Diesel Fuel Feed to Rail Pipe |
| 8 | Fuel Feed Pipe Clip Bolt |
| 9 | Fuel Feed Pipe Clip Bolt |
| 10 | Fuel Injector Fuel Return Hose Bracket |
| 11 | Fuel Return Pipe Clip Bolt [2x] |
| 12 | Bolt@Diesel Fuel Separator |
| 13 | Bolt@Fuel Pump Fuel Feed Hose |
| 14 | Fuel Pump Fuel Feed Hose |
| 15 | Diesel Fuel Separator |
| 16 | Fuel Pump Seal |
| 17 | High Pressure Diesel Fuel Pump |
| 18 | Fuel Injection Pump Bolt [3x] |
| 19 | Fuel Injection Fuel Rail Nut [3x] |
| 20 | Fuel Injection Fuel Rail Stud [3x] |
| 21 | High Pressure Diesel Fuel Injection Rail |
| 22 | Charge Air Cooler Bracket |
| 23 | High Pressure Diesel Fuel Feed to Injector Pipe [6x] |
| 24 | Fuel Injector Washer [6x] |
| 25 | Fuel Injector Seal [6x] |
| 26 | Multiport Fuel Injector Bracket [6x] |
| 27 | Fuel Injector Bolt [6x] |
| 28 | High Pressure Diesel Fuel Injector [6x] |
