Exhaust Manifold, Turbocharger, and Components
WARNING: This page is about a different variant/trim than selected.
NOTE:

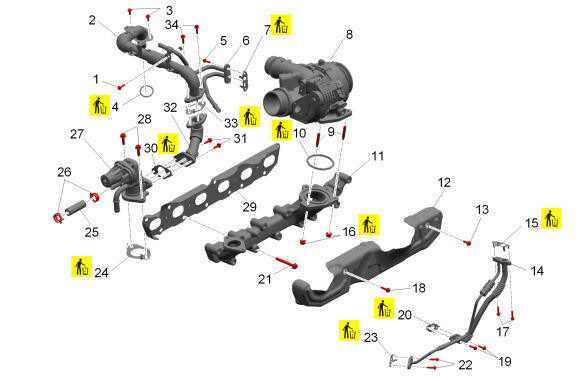

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Exhaust Gas Recirculation Cooler Bolt |
| 2 | Exhaust Gas Recirculation Cooler Outlet Pipe |
| 3 | Exhaust Gas Recirculation Cooler Outlet Pipe Bolt [2x] |
| 4 | Exhaust Gas Recirculation Pipe Seal |
| 5 | Turbocharger Oil Return Pipe Bolt [2x] |
| 6 | Turbocharger Coolant Feed Pipe |
| 7 | Turbocharger Coolant Feed and Return Pipe Gasket |
| 8 | Compressor Air Intake Turbocharger |
| 9 | Turbocharger Stud [2x] |
| 10 | Turbocharger Gasket |
| 11 | Exhaust Manifold |
| 12 | Exhaust Manifold Heat Shield |
| 13 | Exhaust Manifold Heat Shield Bolt |
| 14 | Turbocharger Oil Feed Pipe |
| 15 | Turbocharger Oil Return Pipe Gasket |
| 16 | Turbocharger Nut [3x] |
| 17 | Turbocharger Oil Return Pipe Bolt [2x] |
| 18 | Turbocharger Oil Feed Pipe Bracket Bolt |
| 19 | Turbocharger Oil Return Pipe Bolt [2x] |
| 20 | Turbocharger Oil Return Pipe Gasket |
| 21 | Exhaust Manifold Flange Bolt [12x] |
| 22 | Turbocharger Oil Feed Pipe Bolt [2x] |
| 23 | Turbocharger Oil Feed Pipe Gasket |
| 24 | Exhaust Gas Recirculation Valve Inlet Gasket |
| 25 | Exhaust Gas Recirculation Valve Cooling Feed Hose |
| 26 | Exhaust Gas Recirculation Valve Cooling Feed Hose Clamp [2x] |
| 27 | Exhaust Gas Recirculation Valve |
| 28 | Exhaust Gas Recirculation Valve Bolt [2x] |
| 29 | Exhaust Manifold Gasket |
| 30 | Exhaust Gas Recirculation Cooler Inlet Pipe Gasket |
| 31 | Exhaust Gas Recirculation Cooler Bolt [2x] |
| 32 | Exhaust Gas Recirculation Cooler Inlet Pipe |
| 33 | Exhaust Gas Recirculation Cooler Inlet Pipe Gasket |
| 34 | Exhaust Gas Recirculation Cooler Bolt [2x] |
