Drive Belt Accessory Components
WARNING: This page is about a different variant/trim than selected.
NOTE:

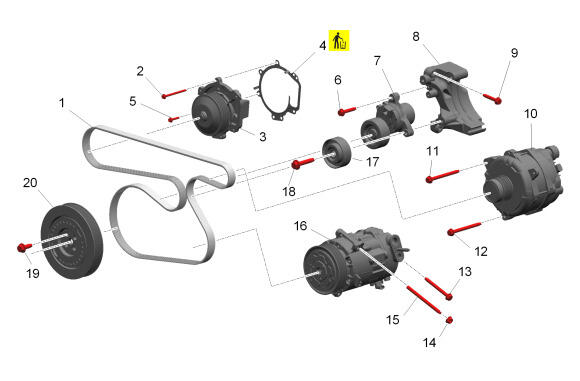

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Accessory Drive Primary Belt |
| 2 | Water Pump Bolt [2x] |
| 3 | Water Pump |
| 4 | Water Pump Gasket |
| 5 | Water Pump Bolt [4x] |
| 6 | Drive Belt Tensioner Bolt [2x] |
| 7 | Drive Belt Tensioner |
| 8 | Generator and Drive Belt Tensioner Bracket |
| 9 | Generator and Air Conditioning Compressor Bracket Bolt [4x] |
| 10 | Generator |
| 11 | Generator Bolt |
| 12 | Generator Bolt |
| 13 | Air Conditioning Compressor Bolt [2x] |
| 14 | Air Conditioning Compressor Nut |
| 15 | Air Conditioning Compressor Stud |
| 16 | Air Conditioning Compressor |
| 17 | Belt Idler Pulley |
| 18 | Bolt@Belt Idler Pulley |
| 19 | Crankshaft Pulley Bolt [4x] |
| 20 | Crankshaft Pulley |
