Section 22 (Engine Mechanical - 3.0L (Lm2) Diesel - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Mechanical Wiring Schematics
>>
Engine Oil Pressure Control
Engine Oil Pressure Control
WARNING:
This page is about a different variant/trim than selected.

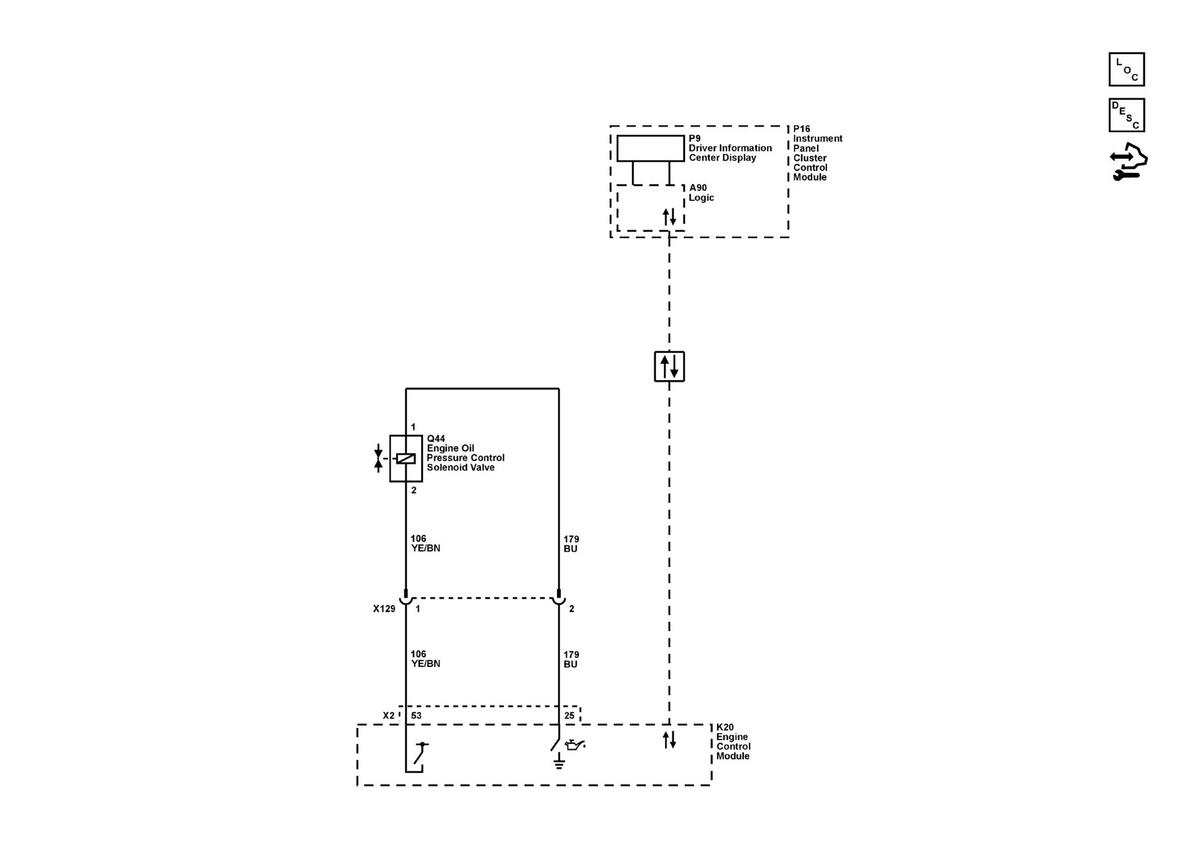

Fig 1: Engine Oil Pressure Control Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
