Engine Controls Wiring Schematics

WARNING: This page is about a different variant/trim than selected.

Fig 1: Engine Control Module Power, Ground, Serial Data, and MIL

Courtesy of GENERAL MOTORS COMPANY

Fig 2: 5V Reference Bus

Courtesy of GENERAL MOTORS COMPANY

Fig 3: Low Reference Bus (1 of 2)

Courtesy of GENERAL MOTORS COMPANY

Fig 4: Low Reference Bus (2 of 2)

Courtesy of GENERAL MOTORS COMPANY

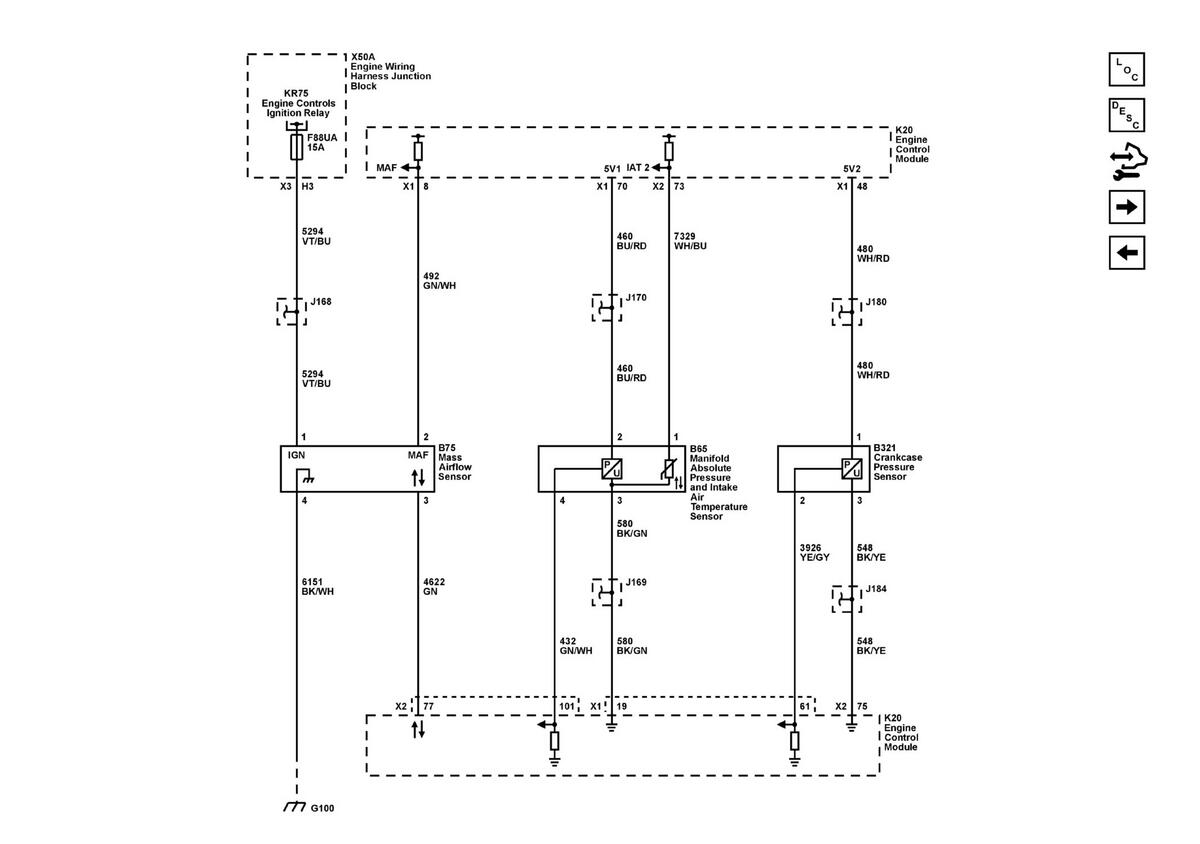

Fig 5: Engine Data Sensors - Intake Air and Crankcase Pressure Sensors

Courtesy of GENERAL MOTORS COMPANY

Fig 6: Engine Data Sensors - Coolant and Engine Metal Temperature

Courtesy of GENERAL MOTORS COMPANY

Fig 7: Engine Data Sensors - EGR and Exhaust Gas Temperature

Courtesy of GENERAL MOTORS COMPANY

Fig 8: Engine Data Sensors - Injector Timing Controls and Override

Courtesy of GENERAL MOTORS COMPANY

Fig 9: Engine Data Sensors - Exhaust, Turbo, and Intake Manifold Actuators

Courtesy of GENERAL MOTORS COMPANY

Fig 10: Fuel Pump Power Control Module Power, Ground, and Subsystem References

Courtesy of GENERAL MOTORS COMPANY

Fig 11: Fuel Controls - Low Pressure and High Pressure

Courtesy of GENERAL MOTORS COMPANY

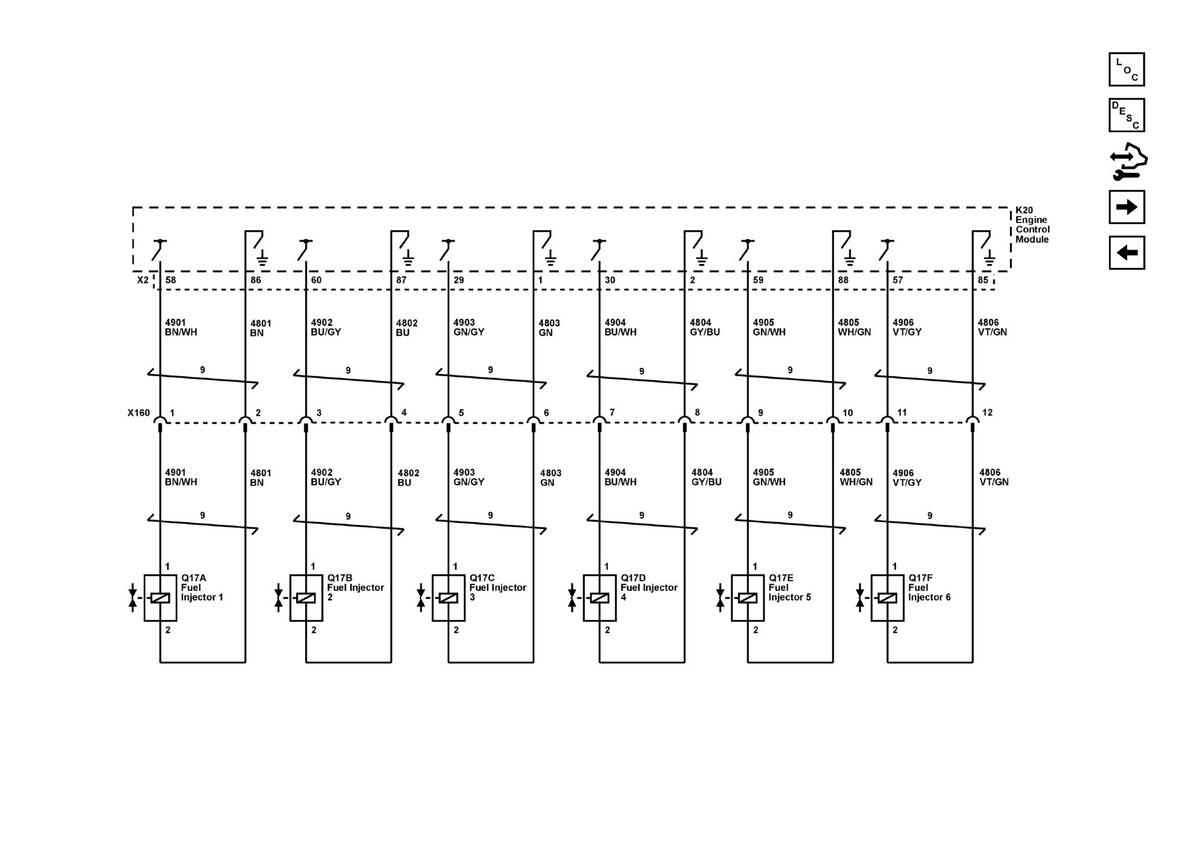

Fig 12: Fuel Controls - Fuel Injectors

Courtesy of GENERAL MOTORS COMPANY

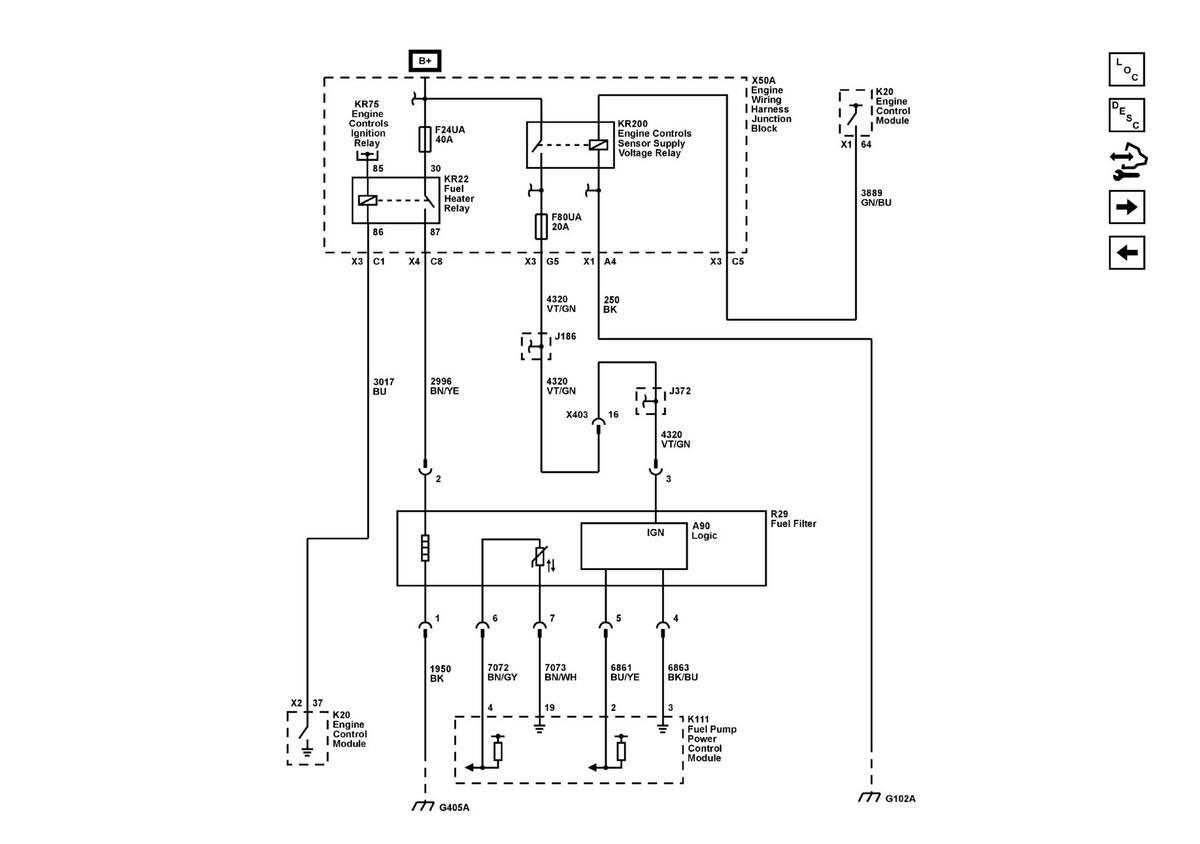

Fig 13: Fuel Controls - Fuel Filter

Courtesy of GENERAL MOTORS COMPANY

Fig 14: Glow Plugs

Courtesy of GENERAL MOTORS COMPANY

Fig 15: :Reductant Controls - Module Power, Ground, and Serial Data

Courtesy of GENERAL MOTORS COMPANY

Fig 16: Reductant Controls - Reductant Tank Fluid Supply Pump Module, Line Heater, and Reductant Tank Fluid Sensor

Courtesy of GENERAL MOTORS COMPANY

Fig 17: Reductant Controls - Nitrogen Oxide Sensors and Exhaust Particulate Matter Sensor

Courtesy of GENERAL MOTORS COMPANY

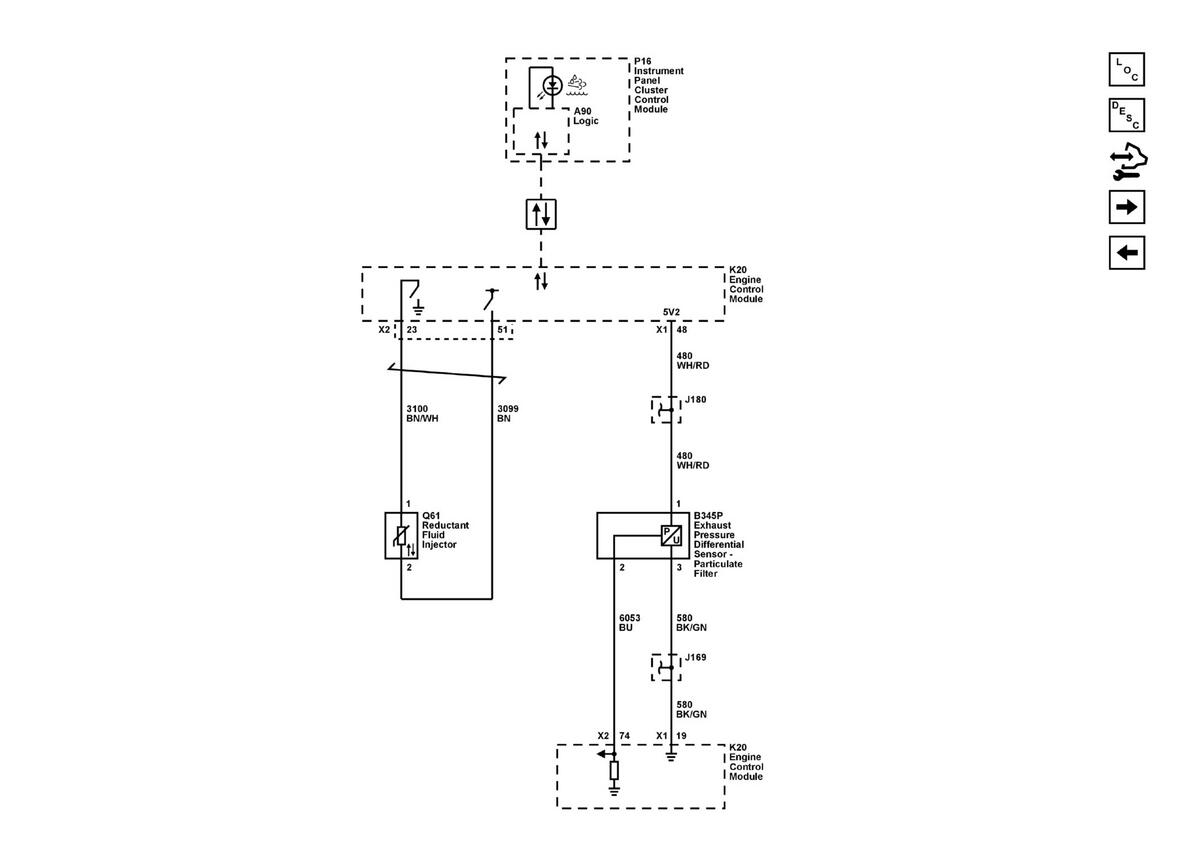

Fig 18: Reductant Controls - Reductant Fluid Injector and Particulate Filter Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Fig 19: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS COMPANY
