Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Generator and Air Conditioning Compressor Bracket (1) - Install
Generator and Air Conditioning Compressor Bracket Bolt (2) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Upon installation of the drive belt idler pulley, the retainer (3) and spacer (2) may detach from the pulley assembly (1). If reinstalling the idler belt pulley, ensure the proper orientation, as shown before reassembling the drive belt idler pulley.
Courtesy of GENERAL MOTORS COMPANY

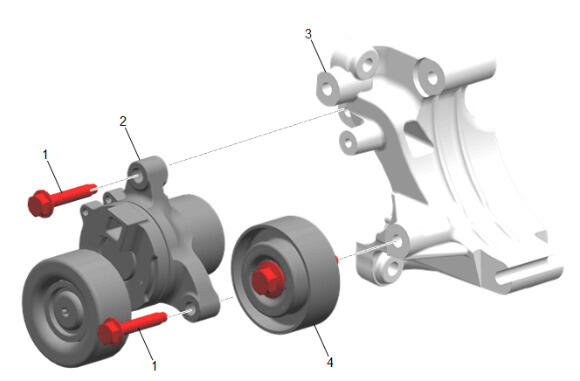

Drive Belt Tensioner (2) - Install

CAUTION:

Refer to Fastener Caution

Drive Belt Tensioner Bolt (1) - Install and tighten - Fastener Specifications
Drive Belt Idler Pulley (4) - Install and tighten - Fastener Specifications
Install the air conditioning compressor.
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor Stud (2) - Install and tighten - Fastener Specifications
Air Conditioning Compressor Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Compressor Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

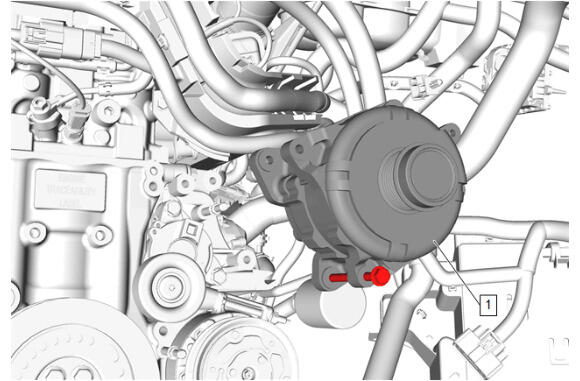

Generator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

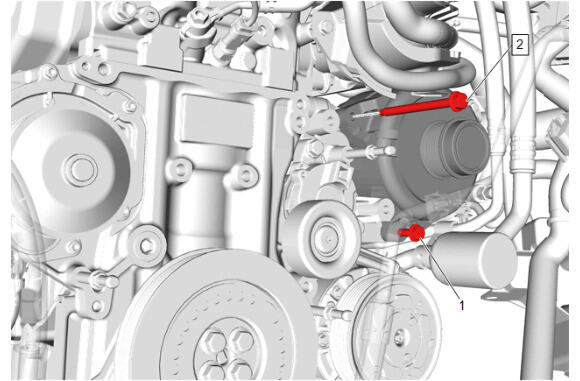

Generator Bolt (2) - Install and tighten - Fastener Specifications
Generator Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Position the engine wiring harness channel (3) at the front of the engine, attach retainer at intake manifold, and connect electrical connectors as needed.
Engine Wiring Harness Bracket Bolt (2) - Install and tighten - Fastener Specifications
Engine Wiring Harness Bracket Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

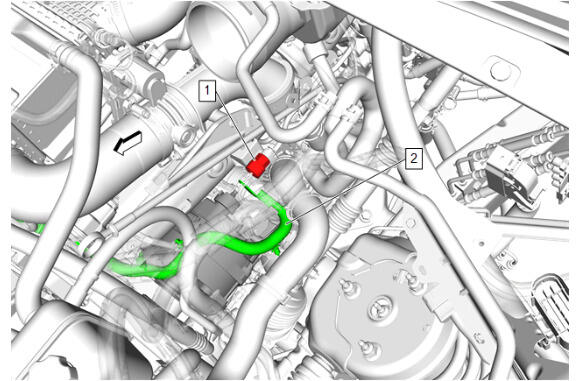

Ground Cable (2) - Install
Engine Wiring Harness Ground Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the accessory drive primary belt (2) to the vehicle.
Rotate the accessory drive primary belt tensioner (1) clockwise.

NOTE:

Ensure the proper routing of the accessory drive primary belt.

Install the accessory drive primary belt (2) around all pulleys.
Slowly release the accessory drive primary belt tensioner (1).
Courtesy of GENERAL MOTORS COMPANY

Engine Front Cover (2) - Install
Engine Front Cover Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Generator Battery Jumper Cable (2) - Install
Battery Positive Cable Nut (1) @Generator - Install and tightenInstall and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

Engine Wiring Harness Bracket (4) - Install
Engine Wiring Harness Bracket Bolt (3) - Install and tighten - Fastener Specifications
Engine Wiring Harness Retainer (2) - Install [2x]
Radiator Inlet Hose Clip (1) - Install
Courtesy of GENERAL MOTORS COMPANY

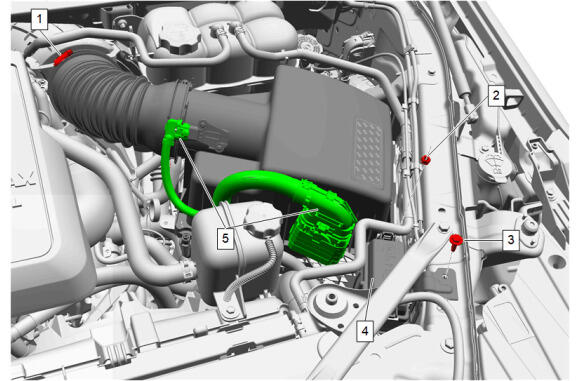

Air Cleaner Lower Housing (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Upper Housing (2) - Install
Air Cleaner Housing Cover Bolt (1) - Install and tighten [3x] - Fastener Specifications
INstall all wiring harness retainers to the air cleaner.
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Nut (2) - Install and tighten - Fastener Specifications
Connect the 2 electrical connectors (5) to the mass air flow sensor and the air cleaner.
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Front Duct (2) - Install
Air Cleaner Outlet Front Duct Clamp (1) - Tighten [2x] - Fastener Specifications
Install the charge air cooler, condenser, fan, and radiator assembly. Charge Air Cooler, Condenser, Fan Motor, and Radiator Assembly Removal and Installation (LM2)
