Engine Oil Pressure Control Wiring Schematic (L87)

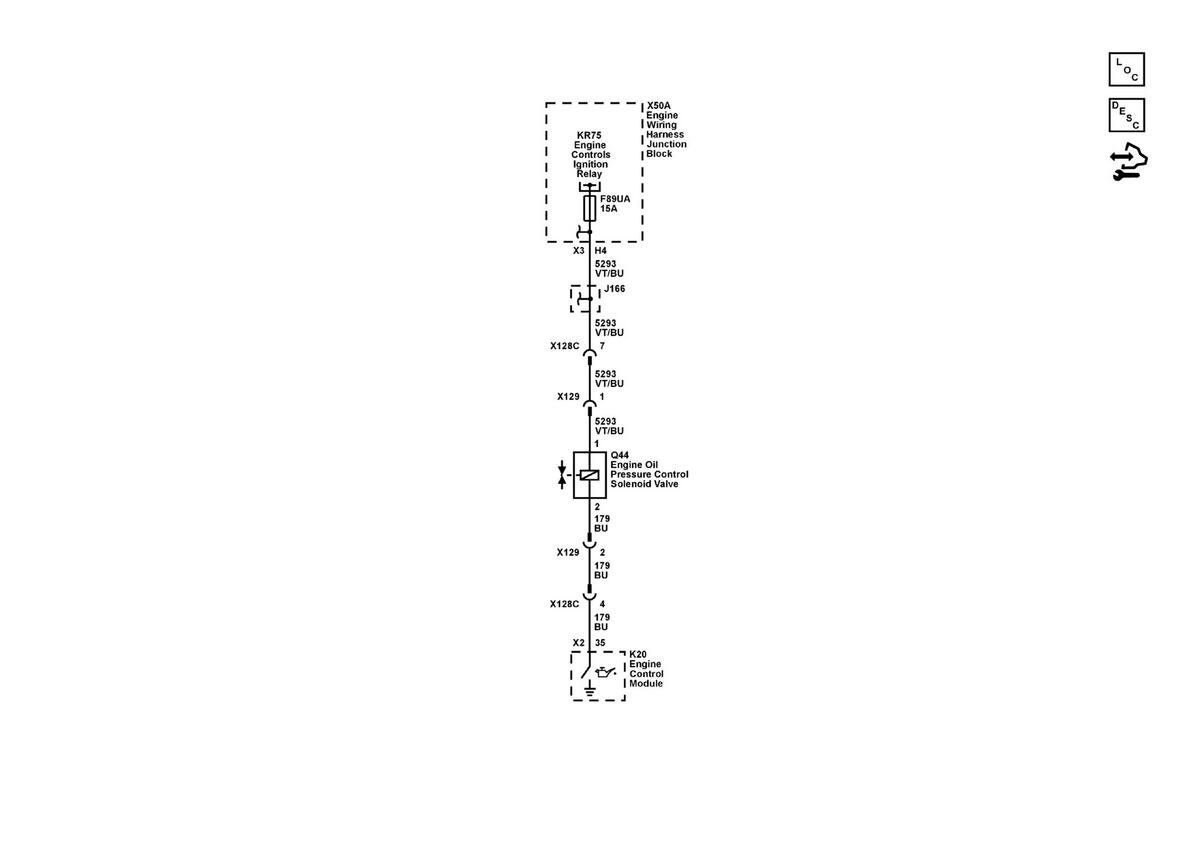

Fig 1: Engine Oil Pressure Control (L87)

GM5998333

Courtesy of GENERAL MOTORS COMPANY
