Power Distribution Schematics

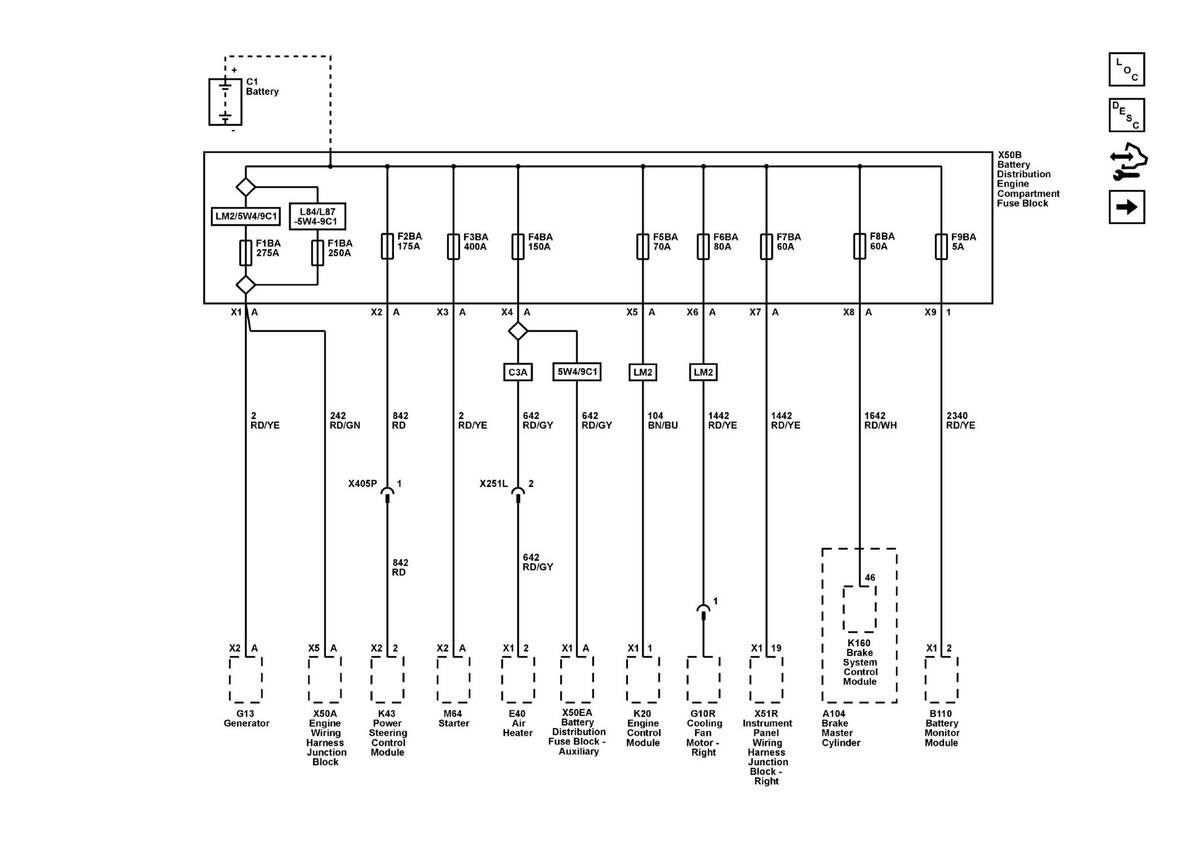

Fig 1: X50B Battery Distribution Engine Compartment Fuse Block
GM5998373Courtesy of GENERAL MOTORS COMPANY

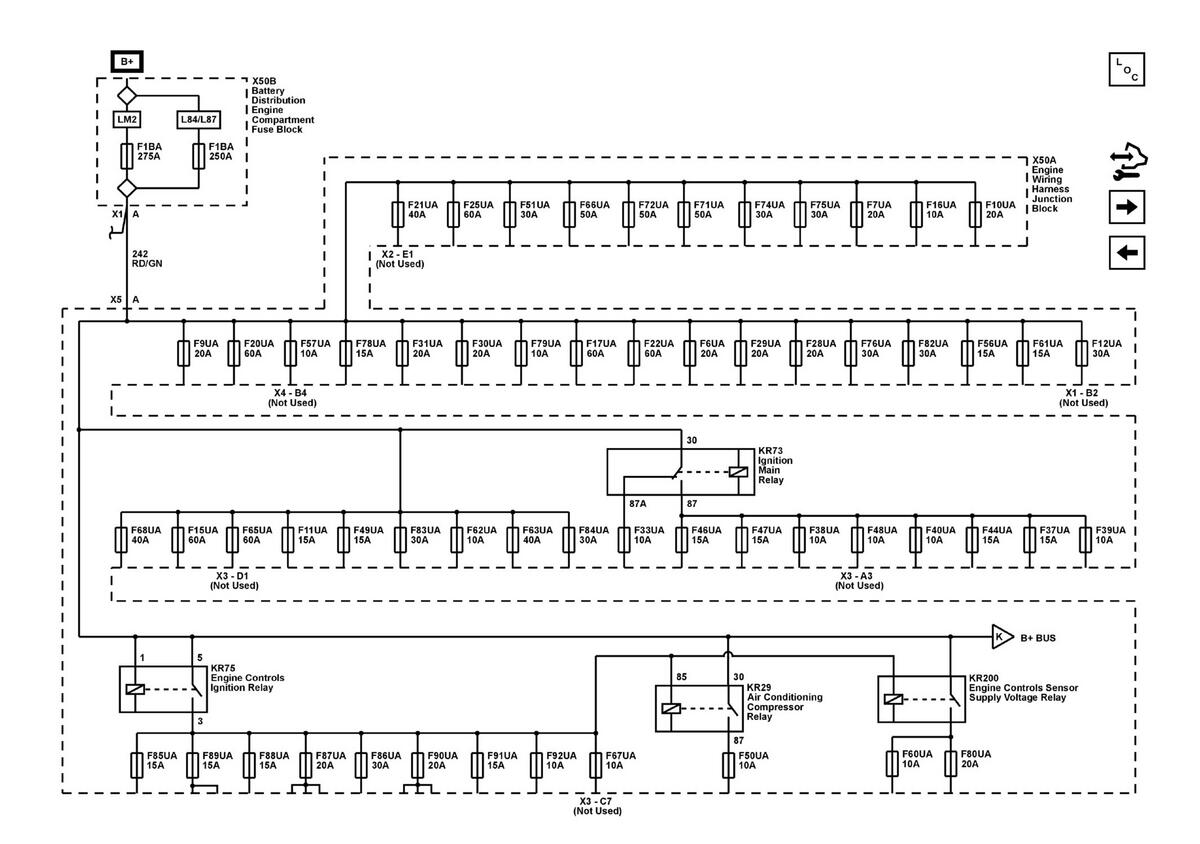

Fig 2: X50A Engine Wiring Harness Junction Block - B+ Bus (1 of 2)
GM5998374Courtesy of GENERAL MOTORS COMPANY

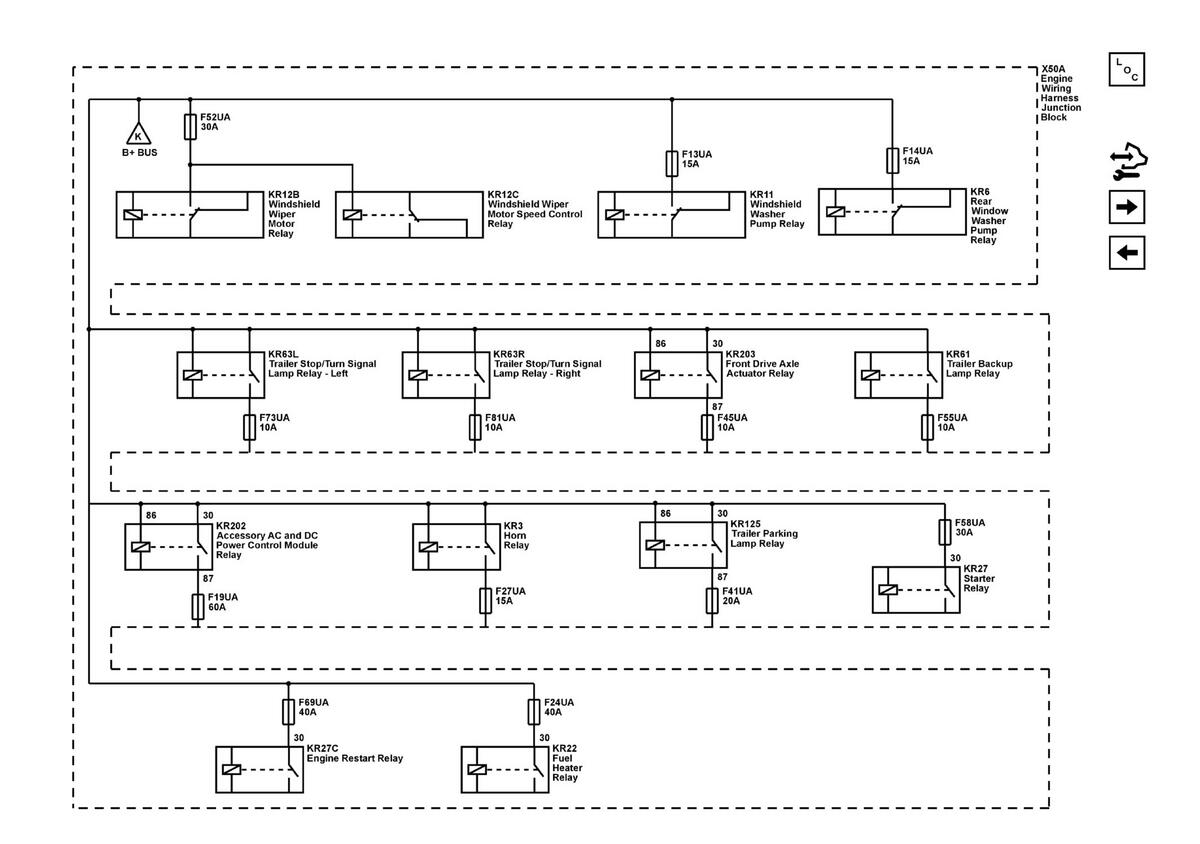

Fig 3: X50A Engine Wiring Harness Junction Block - B+ Bus (2 of 2)
GM5998375Courtesy of GENERAL MOTORS COMPANY

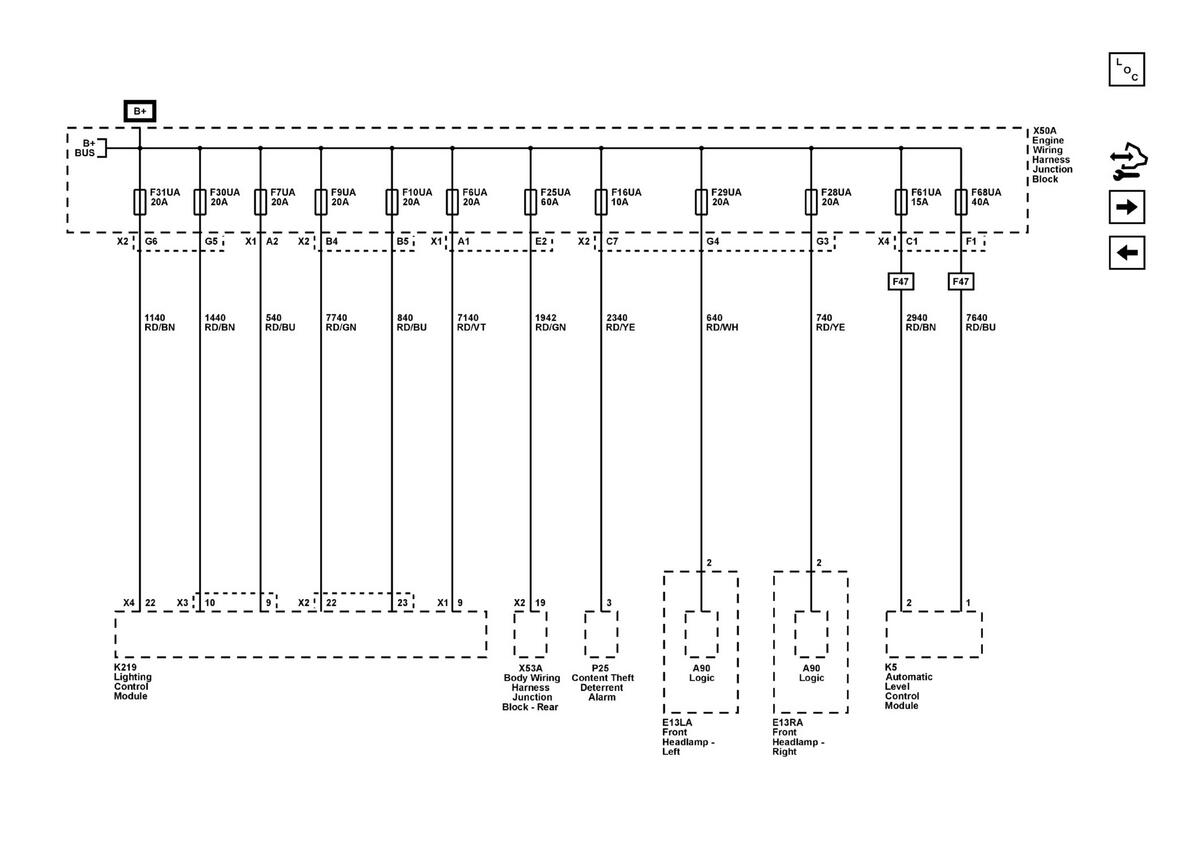

Fig 4: F6UA, F7UA, F9UA, F10UA, F16UA, F25UA, F28UA, F29UA, F30UA, F31UA, F61UA, and F68UA Fuses
GM5998376Courtesy of GENERAL MOTORS COMPANY

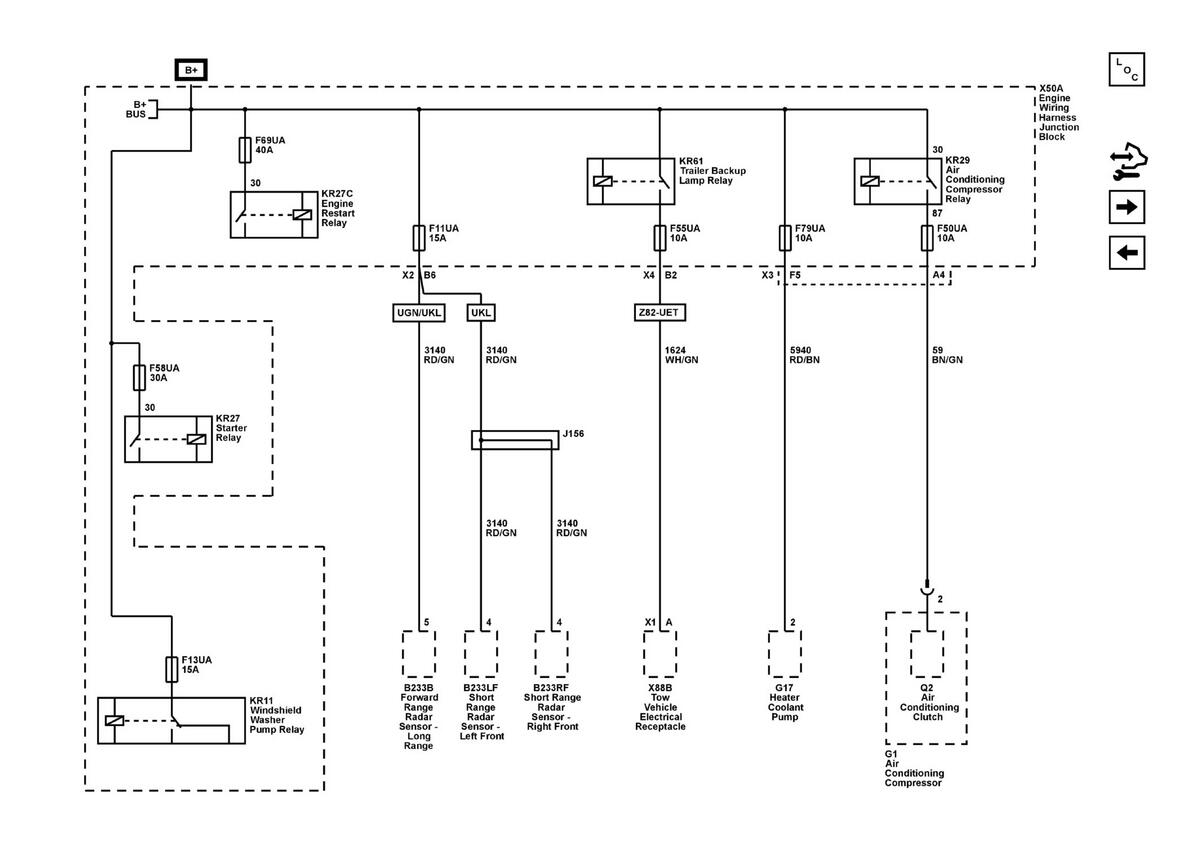

Fig 5: F11UA, F13UA, F50UA, F55UA, F58UA, F69UA, and F79UA Fuses
GM5998377Courtesy of GENERAL MOTORS COMPANY

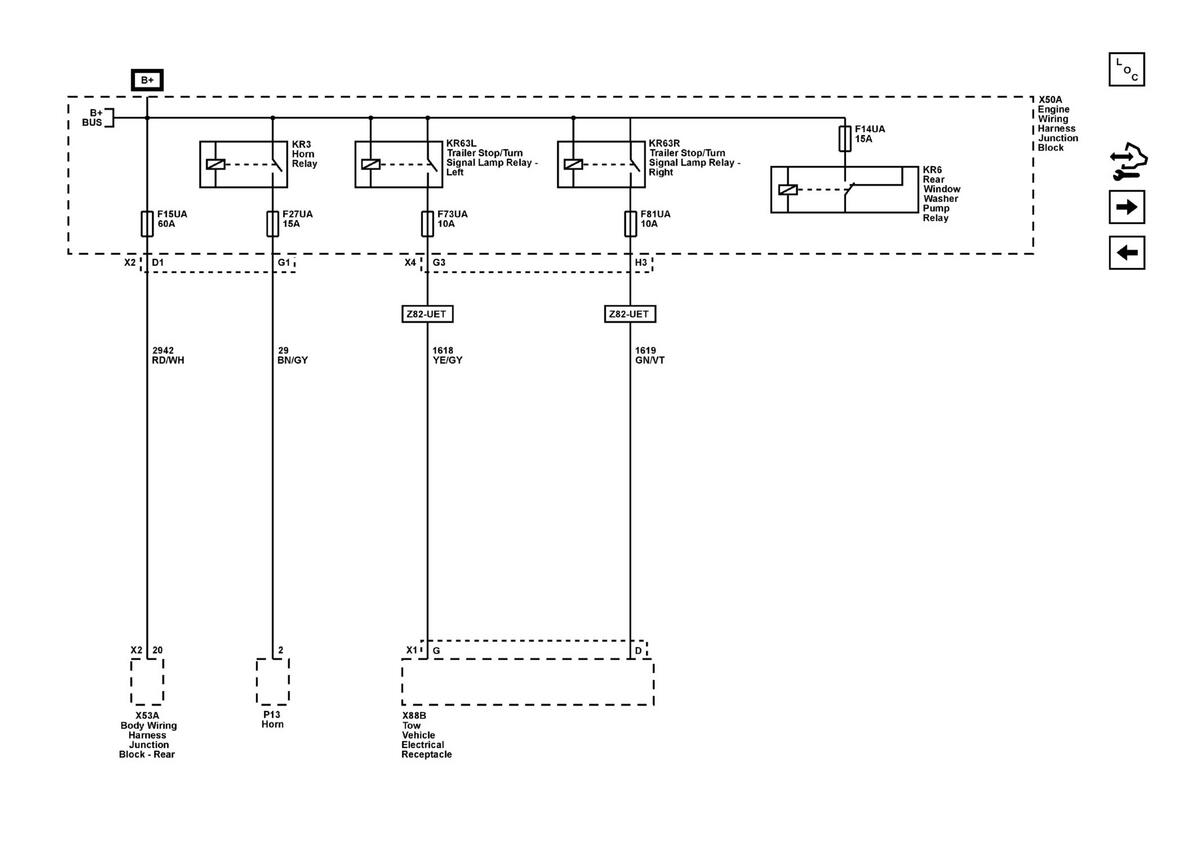

Fig 6: F14UA, F15UA, F27UA, F73UA, and F81UA Fuses
GM5998378Courtesy of GENERAL MOTORS COMPANY

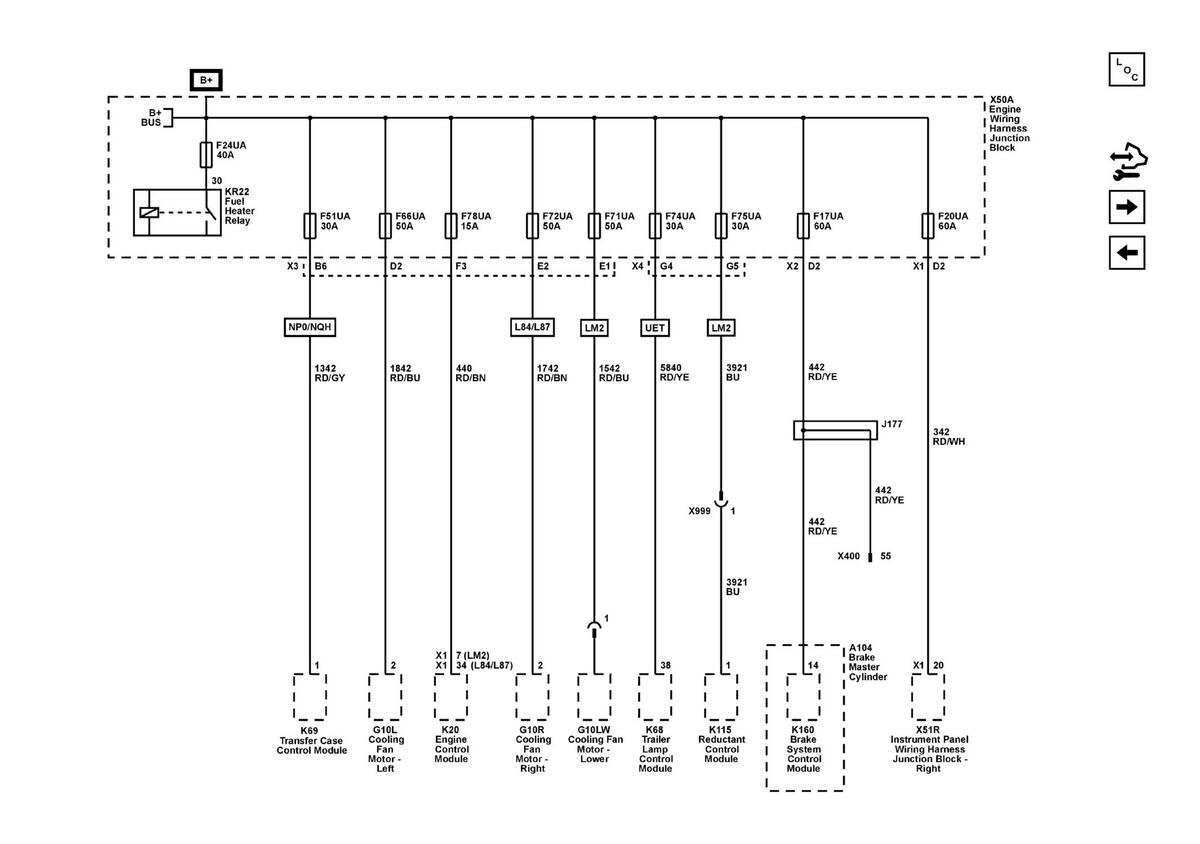

Fig 7: F17UA, F20UA, F24UA, F51UA, F66UA, F71UA, F72UA, F74UA, F75UA, and F78UA Fuses
GM5998379Courtesy of GENERAL MOTORS COMPANY

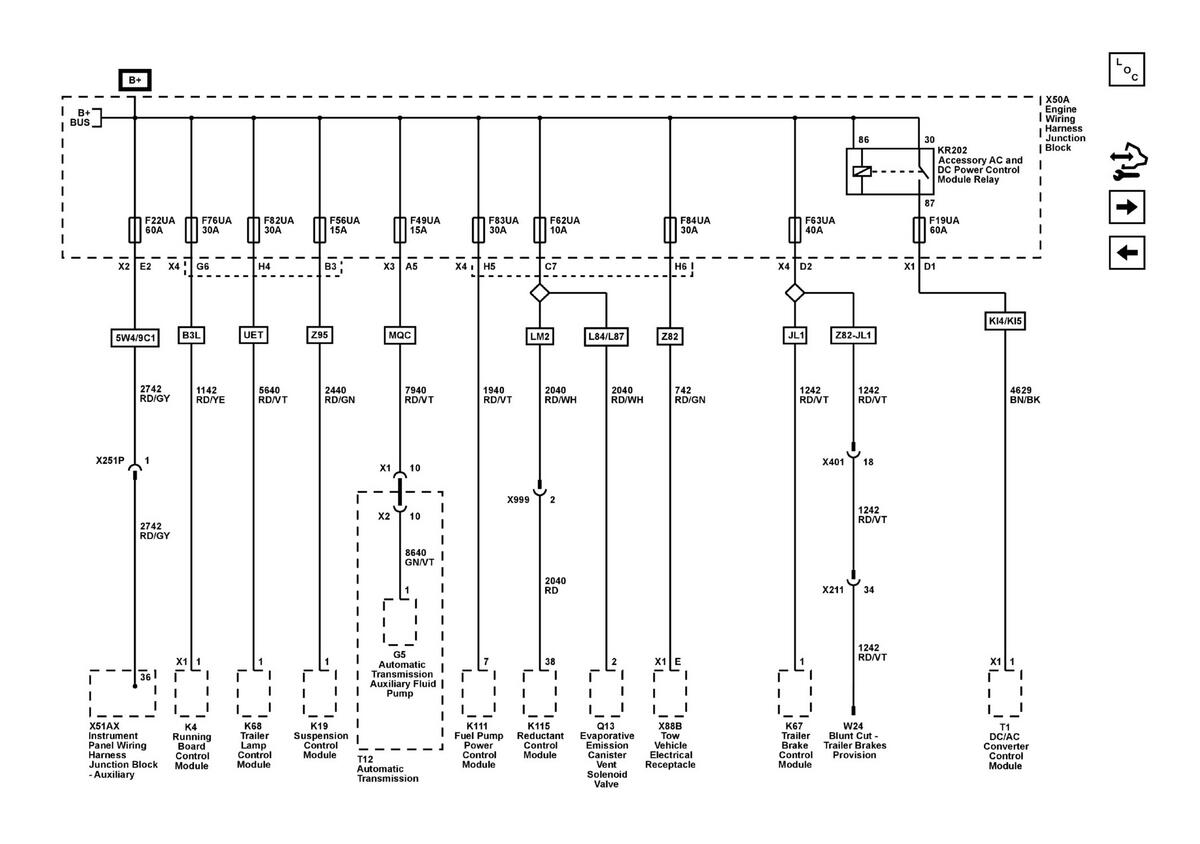

Fig 8: F19UA, F22UA, F49UA, F56UA, F62UA, F63UA, F76UA, F82UA, F83UA, and F84UA Fuses
GM5998380Courtesy of GENERAL MOTORS COMPANY

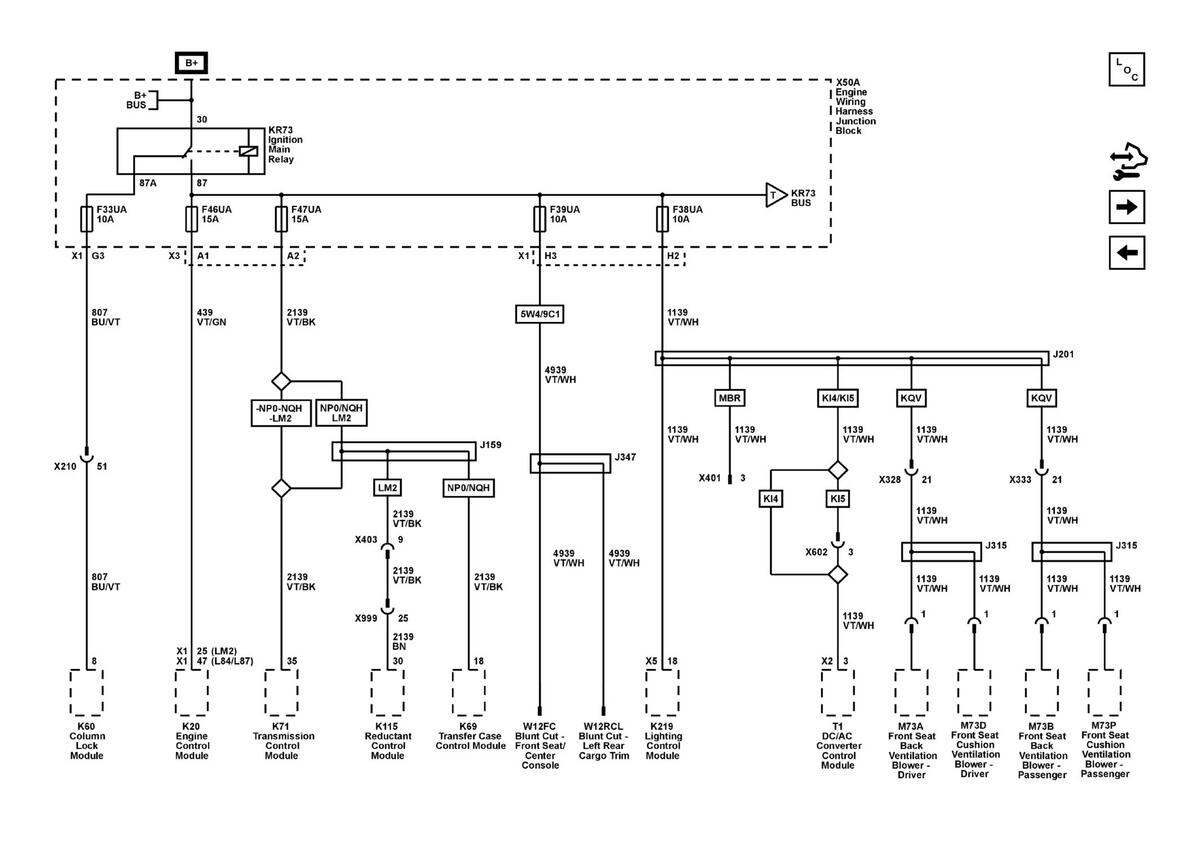

Fig 9: F33UA, F38UA, F39UA, F46UA, and F47UA Fuses
GM5998381Courtesy of GENERAL MOTORS COMPANY

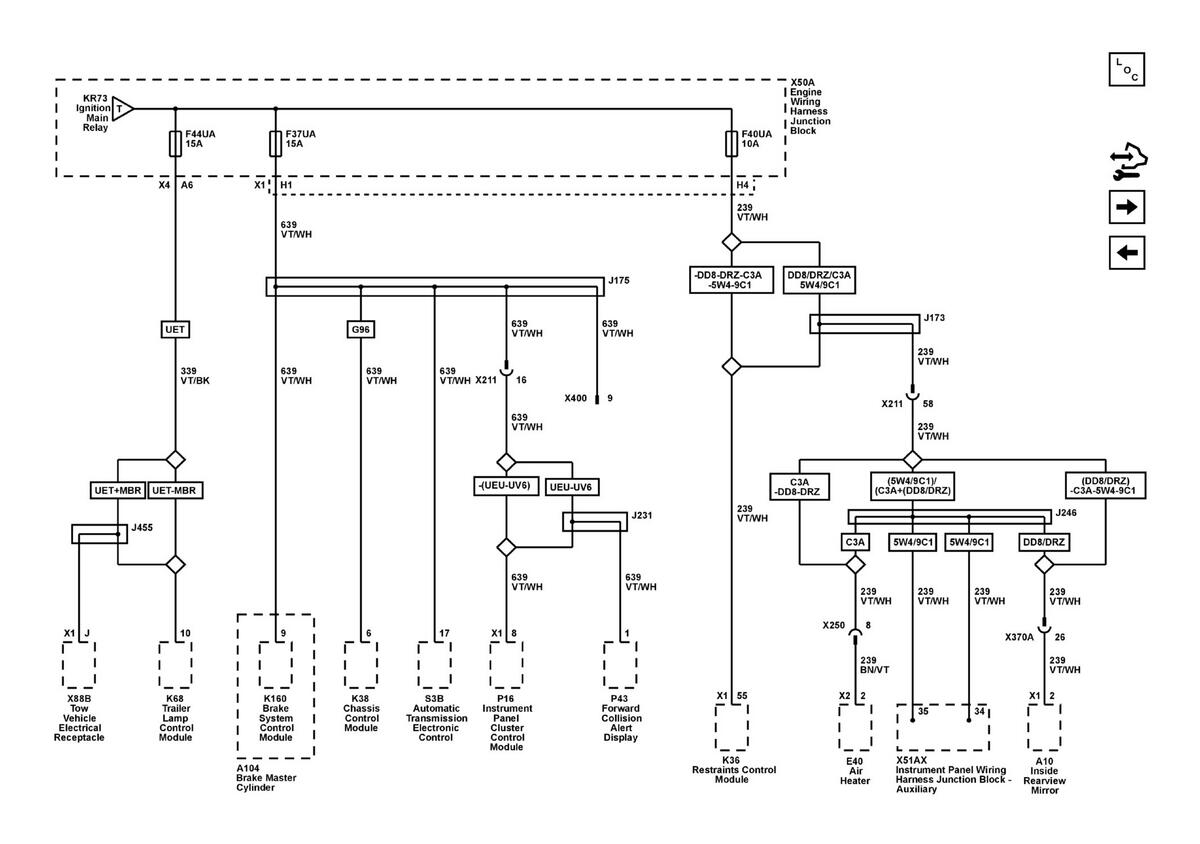

Fig 10: F37UA, F40UA, and F44UA Fuses
GM5998382Courtesy of GENERAL MOTORS COMPANY

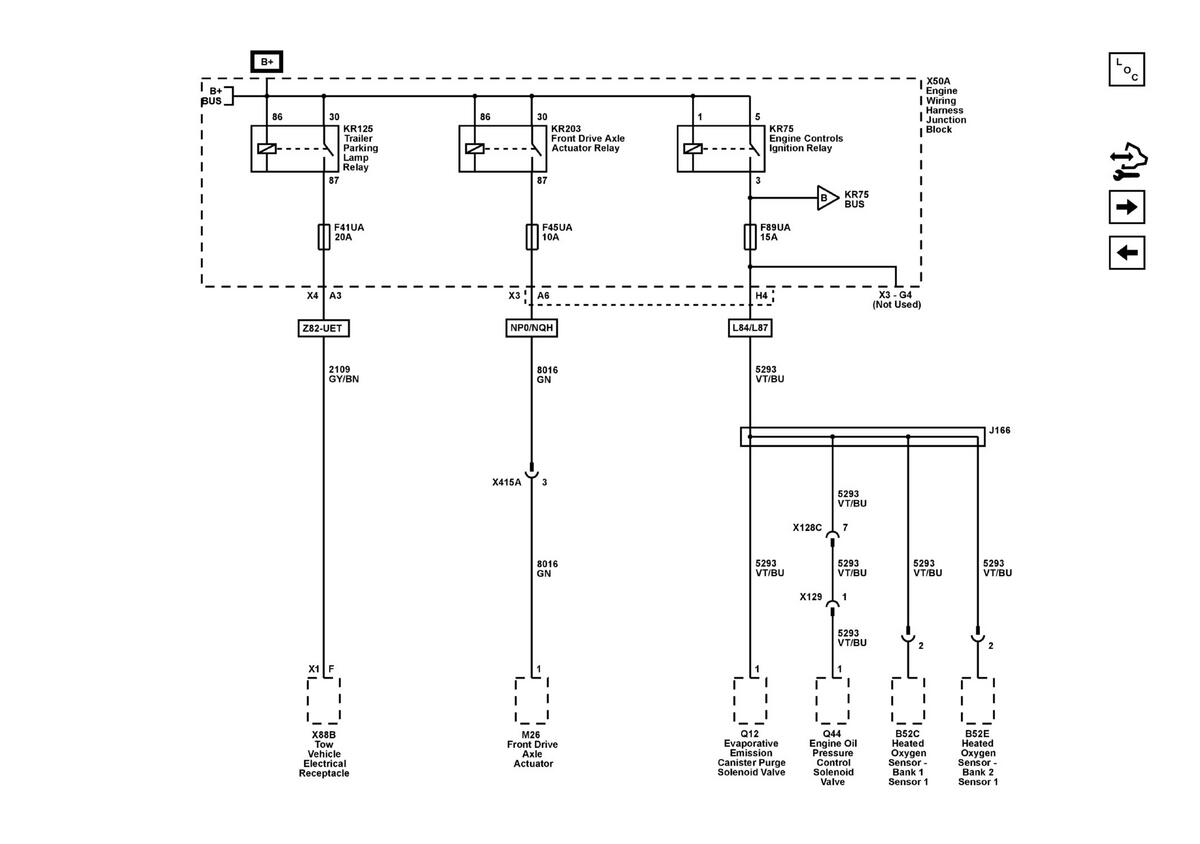

Fig 11: F41UA, F45UA, and F89UA Fuses
GM5998383Courtesy of GENERAL MOTORS COMPANY

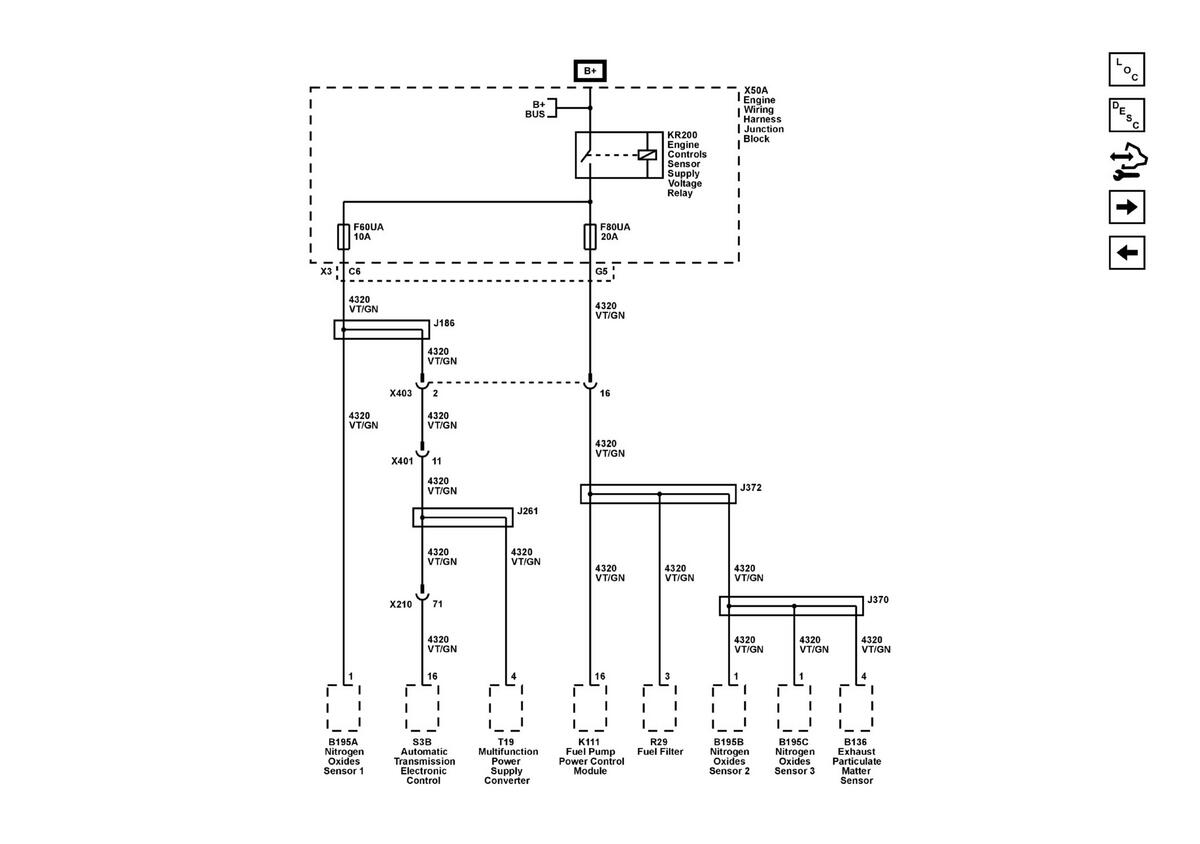

Fig 12: F60UA and F80UA Fuses (LM2)
GM5998384Courtesy of GENERAL MOTORS COMPANY

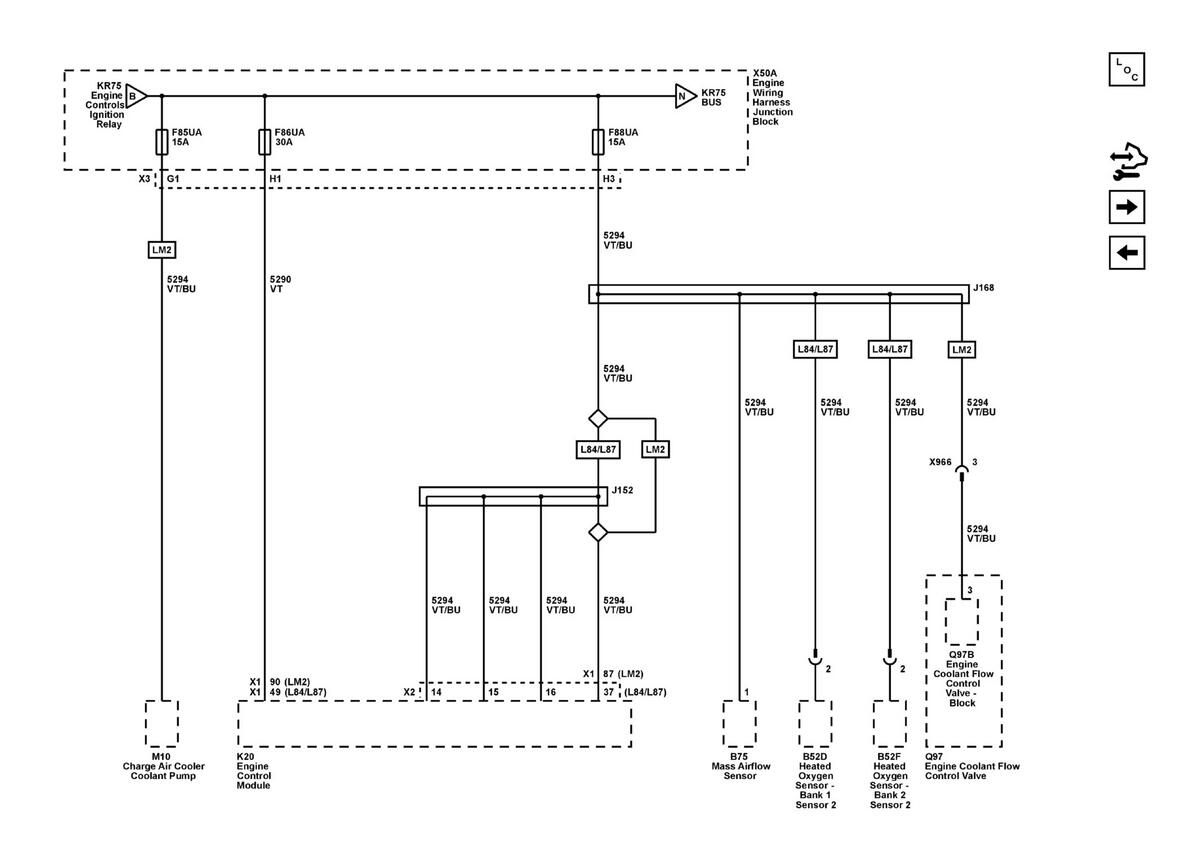

Fig 13: F85UA, F86UA, and F88UA Fuses
GM5998385Courtesy of GENERAL MOTORS COMPANY

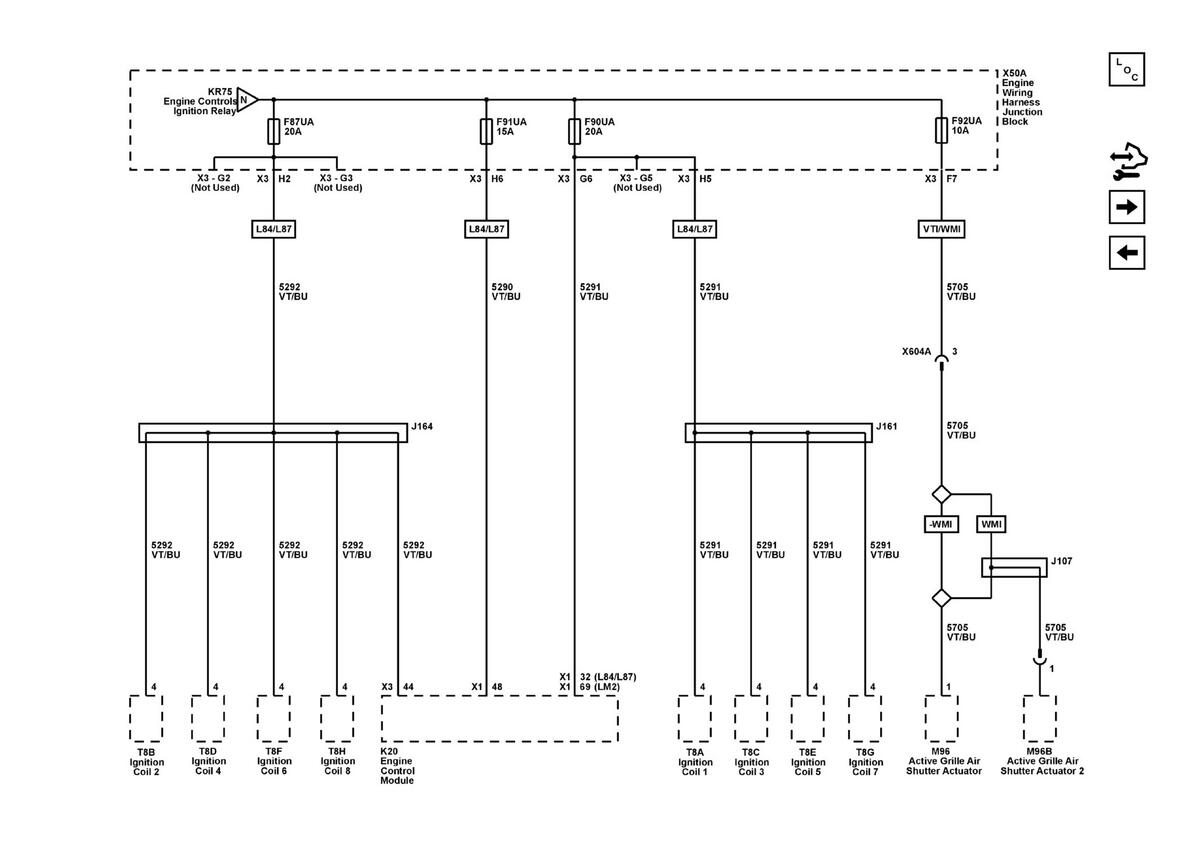

Fig 14: F87UA, F90UA, F91UA, and F92UA Fuses
GM5998386Courtesy of GENERAL MOTORS COMPANY

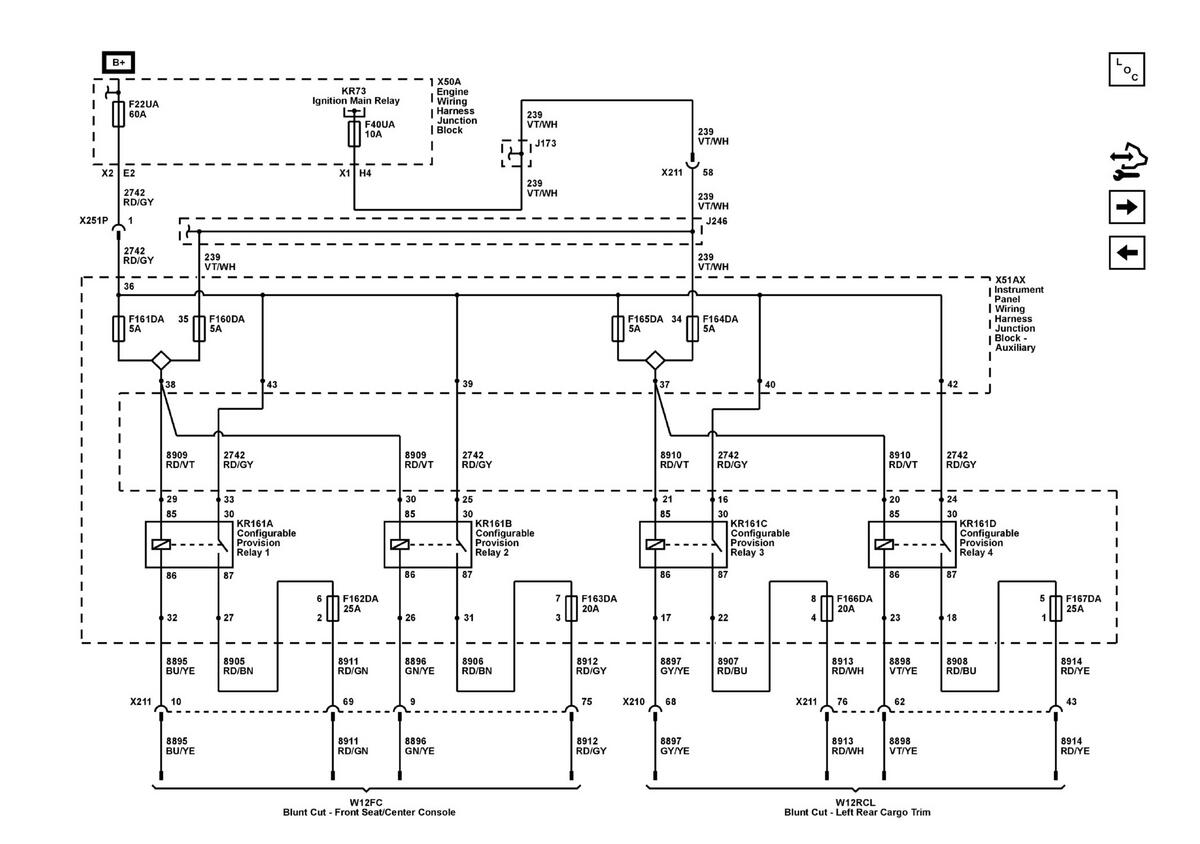

Fig 15: X51AX Instrument Panel Wiring Harness Junction Block - Auxiliary (5W4/9C1)
GM5998387Courtesy of GENERAL MOTORS COMPANY

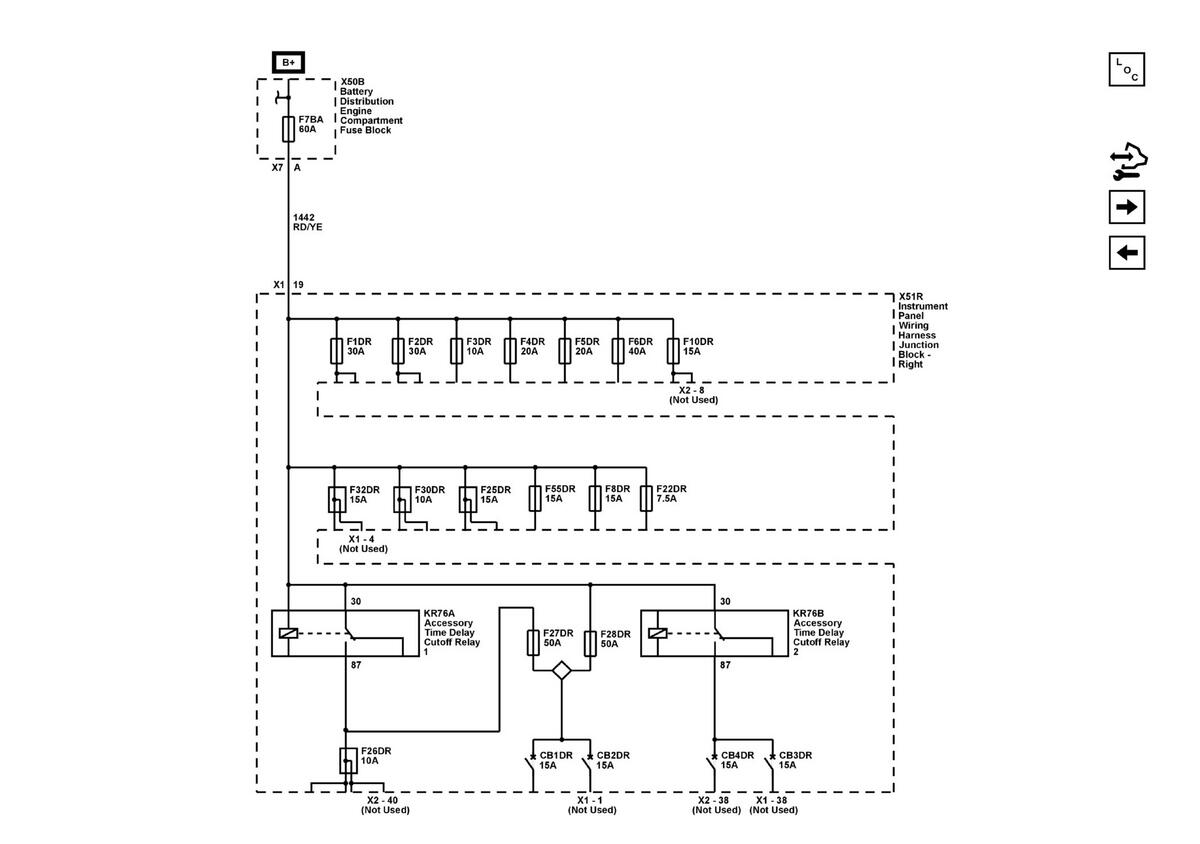

Fig 16: X51R Instrument Panel Wiring Harness Junction Block - Right - B+ Bus (1 of 2)
GM5998388Courtesy of GENERAL MOTORS COMPANY

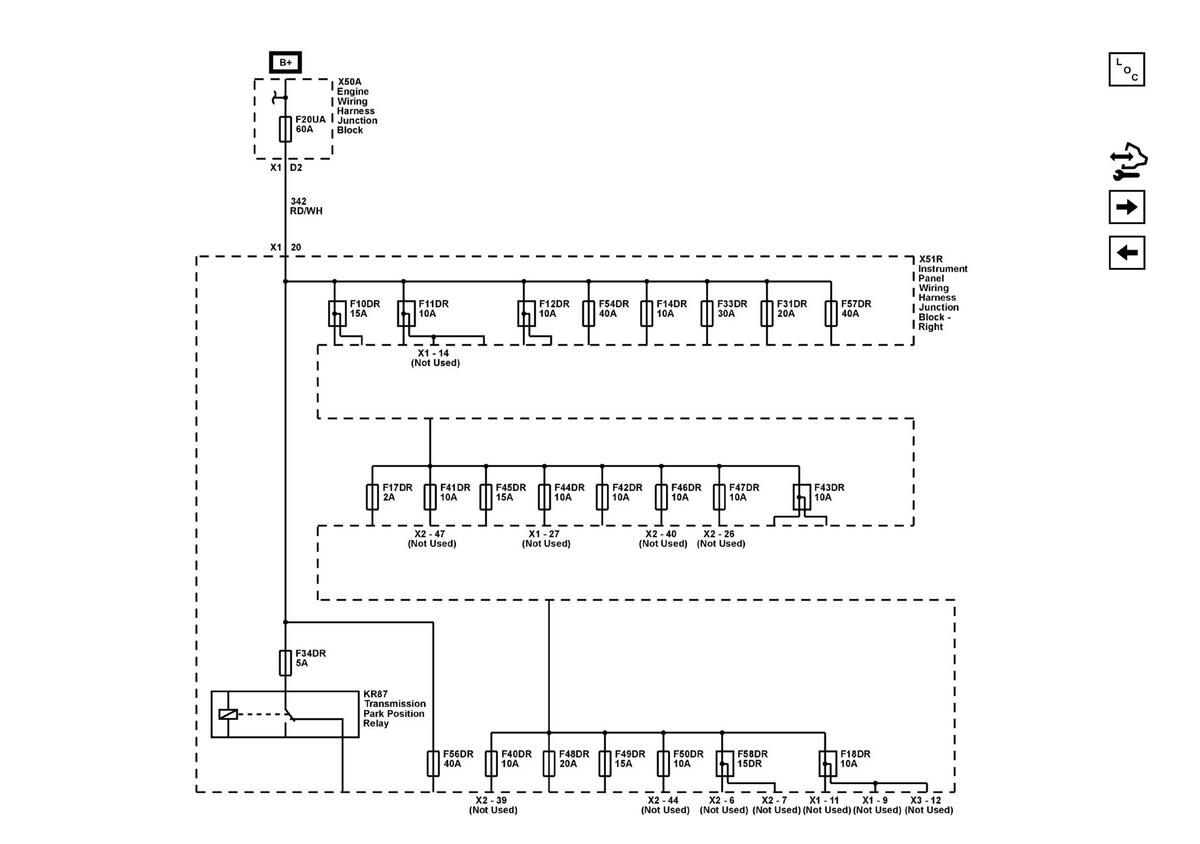

Fig 17: X51R Instrument Panel Wiring Harness Junction Block - Right - B+ Bus (2 of 2)
GM5998389Courtesy of GENERAL MOTORS COMPANY

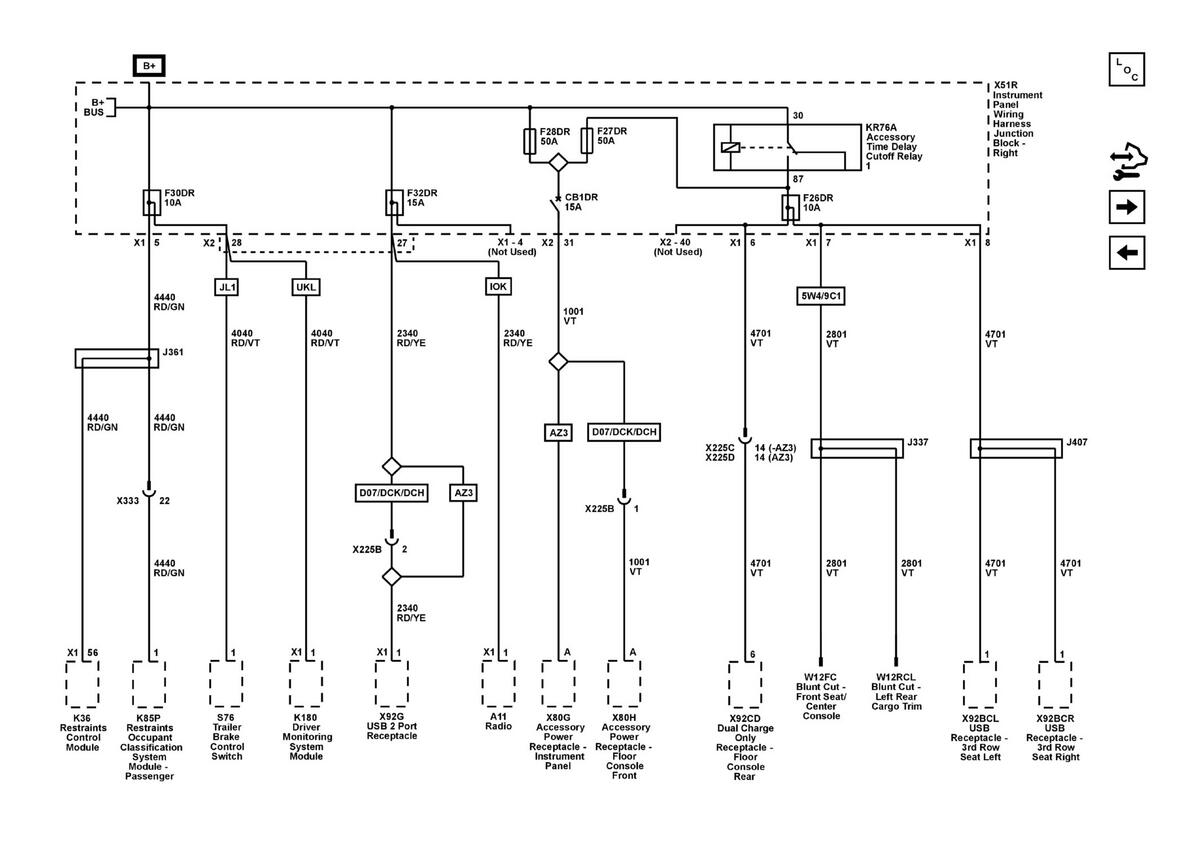

Fig 18: CB1DR Circuit Breaker, F26DR, F27DR, F28DR, F30DR, and F32DR Fuses
GM5998390Courtesy of GENERAL MOTORS COMPANY

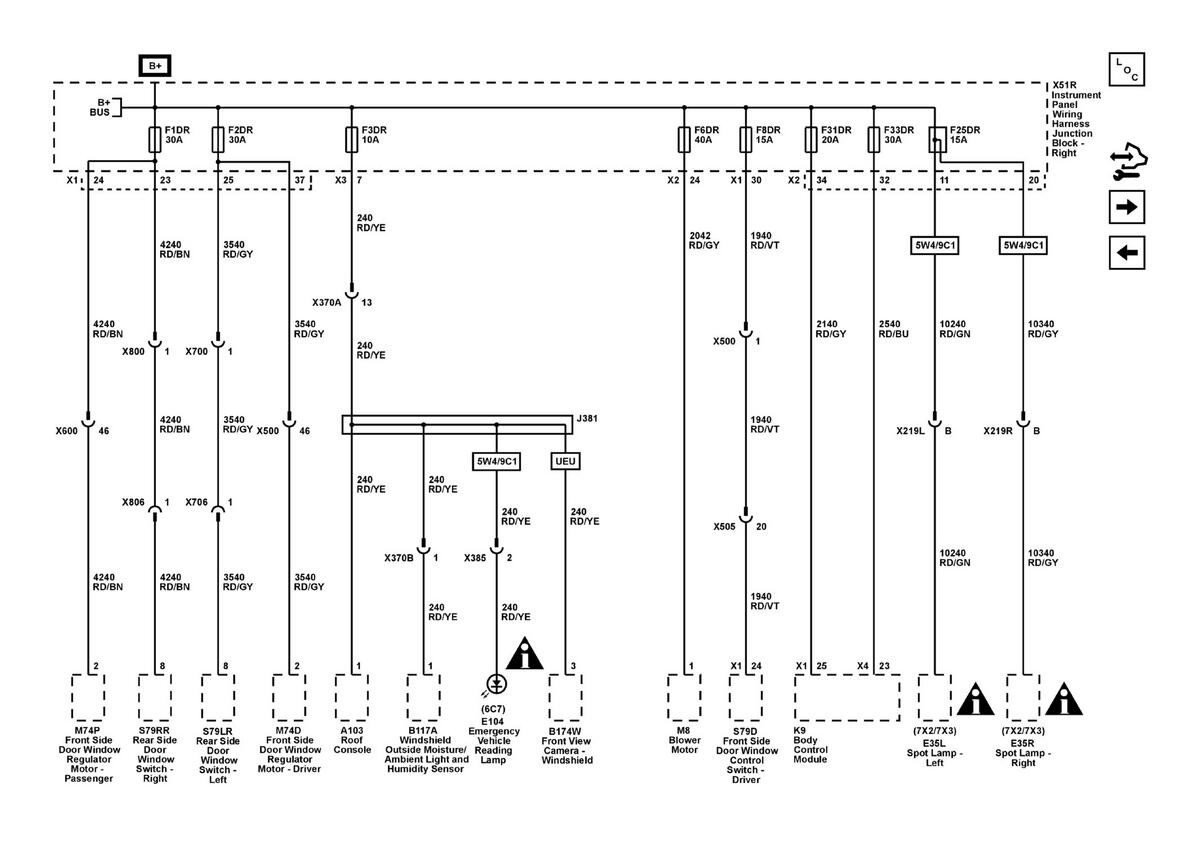

Fig 19: F1DR, F2DR, F3DR, F6DR, F8DR, F24DR, F31DR, and F33DR Fuses
GM5998391Courtesy of GENERAL MOTORS COMPANY

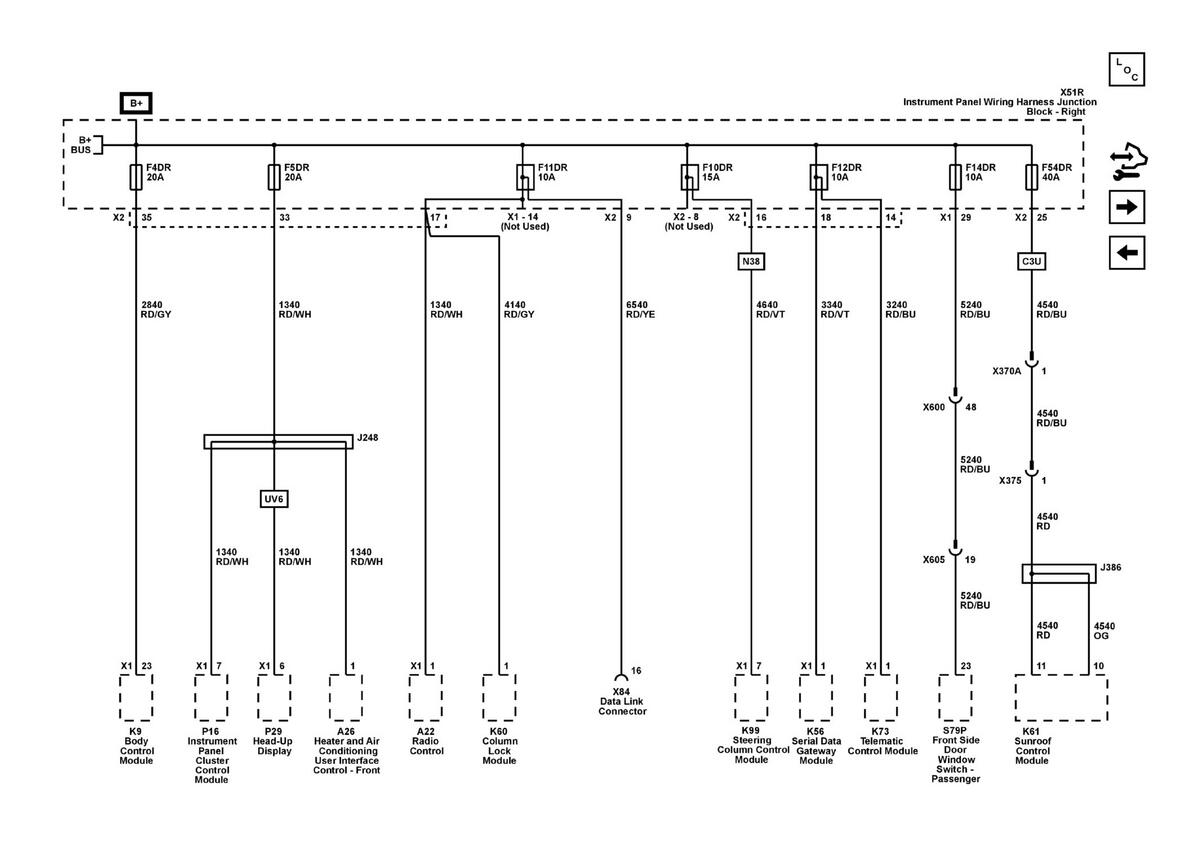

Fig 20: F4DR, F5DR, F10DR, F11DR, F12DR, F14DR, and F54DR Fuses
GM5998392Courtesy of GENERAL MOTORS COMPANY

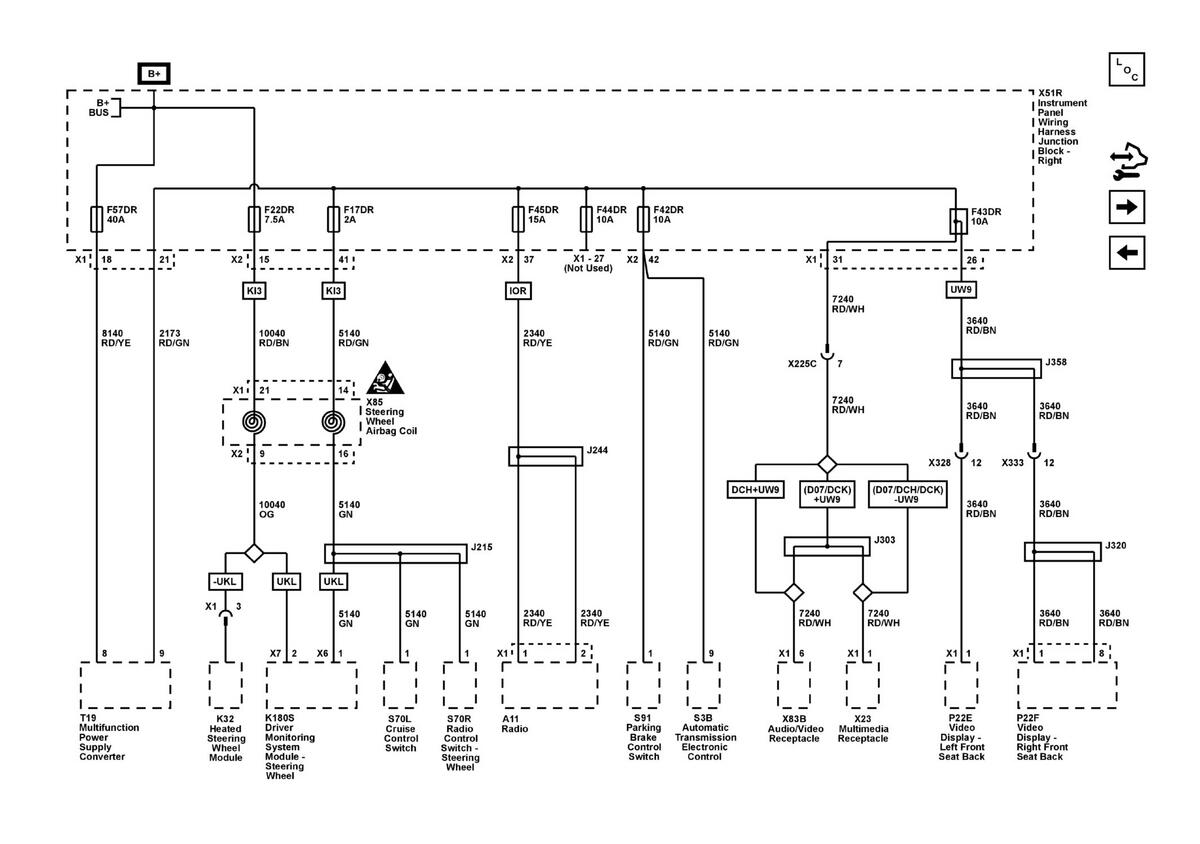

Fig 21: F17DR, F22DR, F42DR, F43DR, F44DR, F45DR, and F57DR Fuses
GM5998393Courtesy of GENERAL MOTORS COMPANY

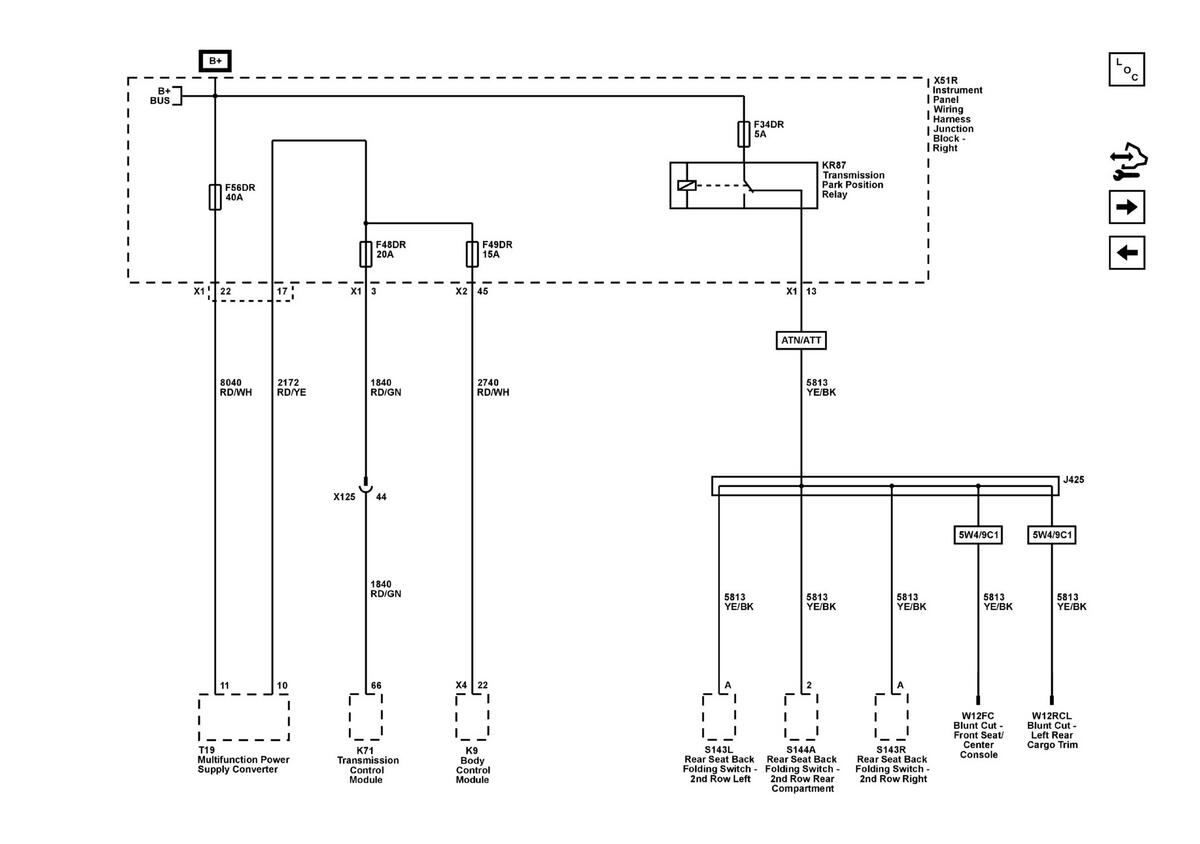

Fig 22: F34DR, F48DR, F49DR, and F56DR Fuses
GM5998394Courtesy of GENERAL MOTORS COMPANY

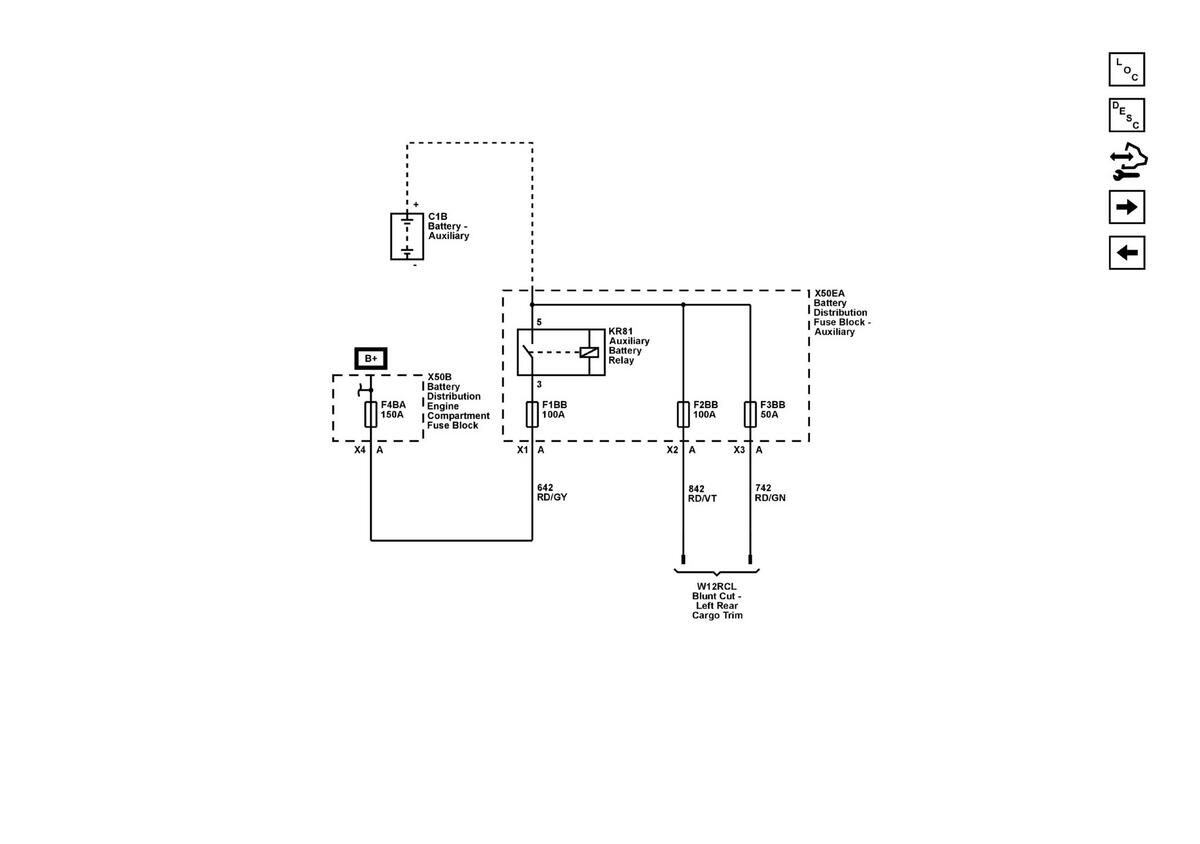

Fig 23: X50EA Battery Distribution Fuse Block - Auxiliary (5W4/9C1)
GM5998395Courtesy of GENERAL MOTORS COMPANY

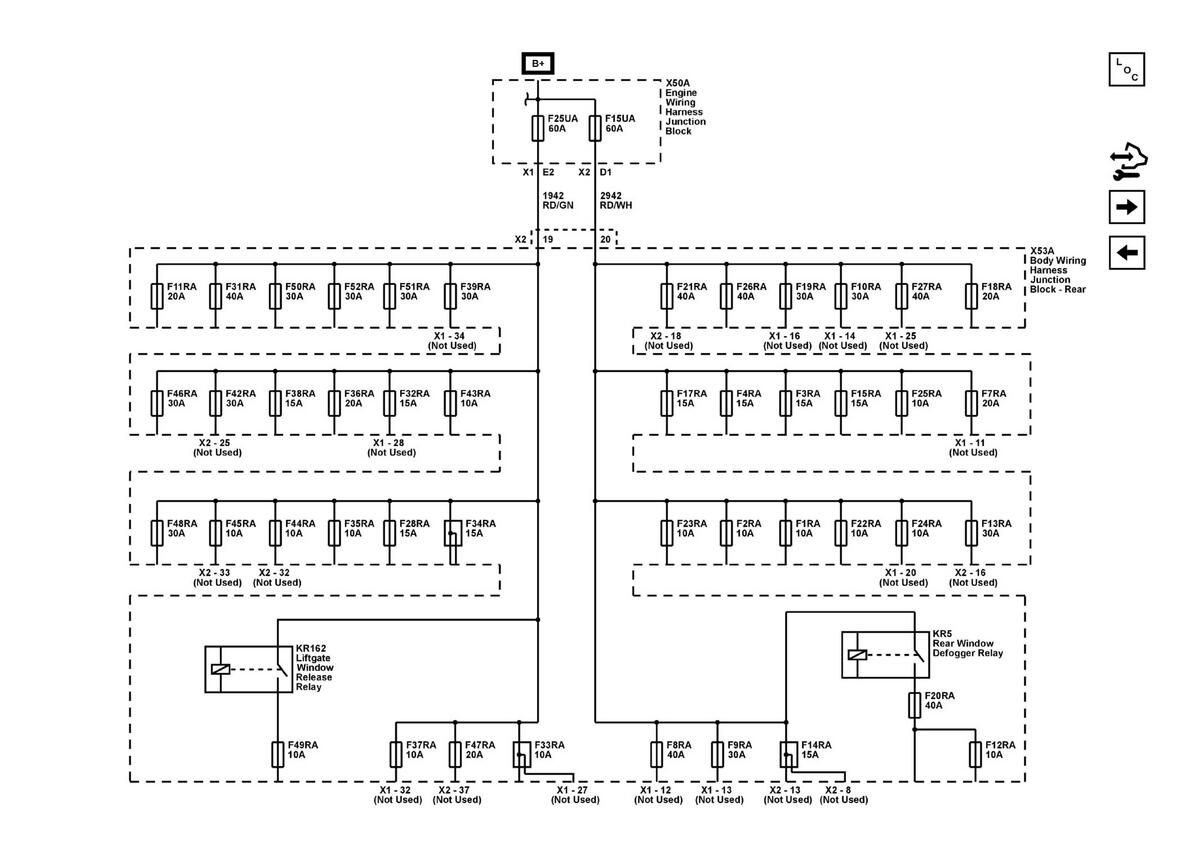

Fig 24: X53A Body Wiring Harness Junction Block - Rear - B+ Bus
GM5998396Courtesy of GENERAL MOTORS COMPANY

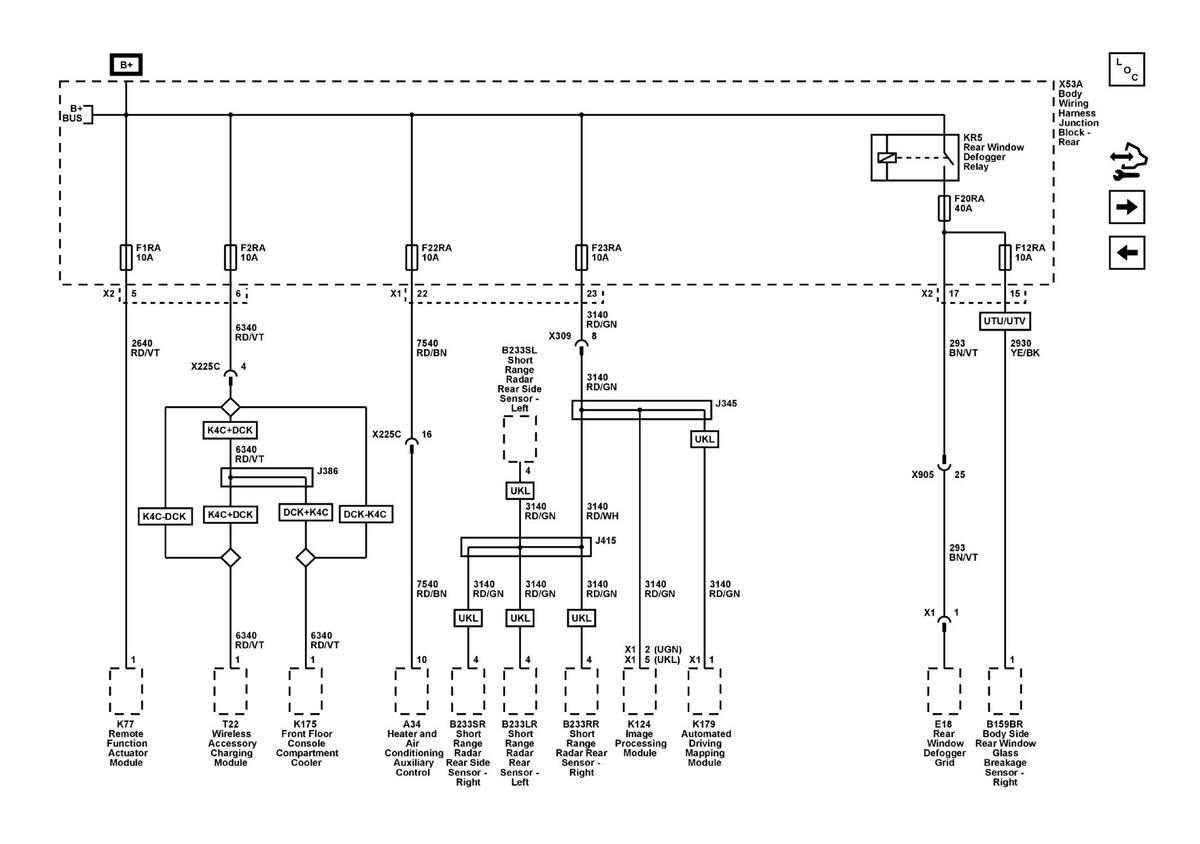

Fig 25: F1RA, F2RA, F12RA, F20RA, F22RA, and F23RA Fuses
GM5998397Courtesy of GENERAL MOTORS COMPANY

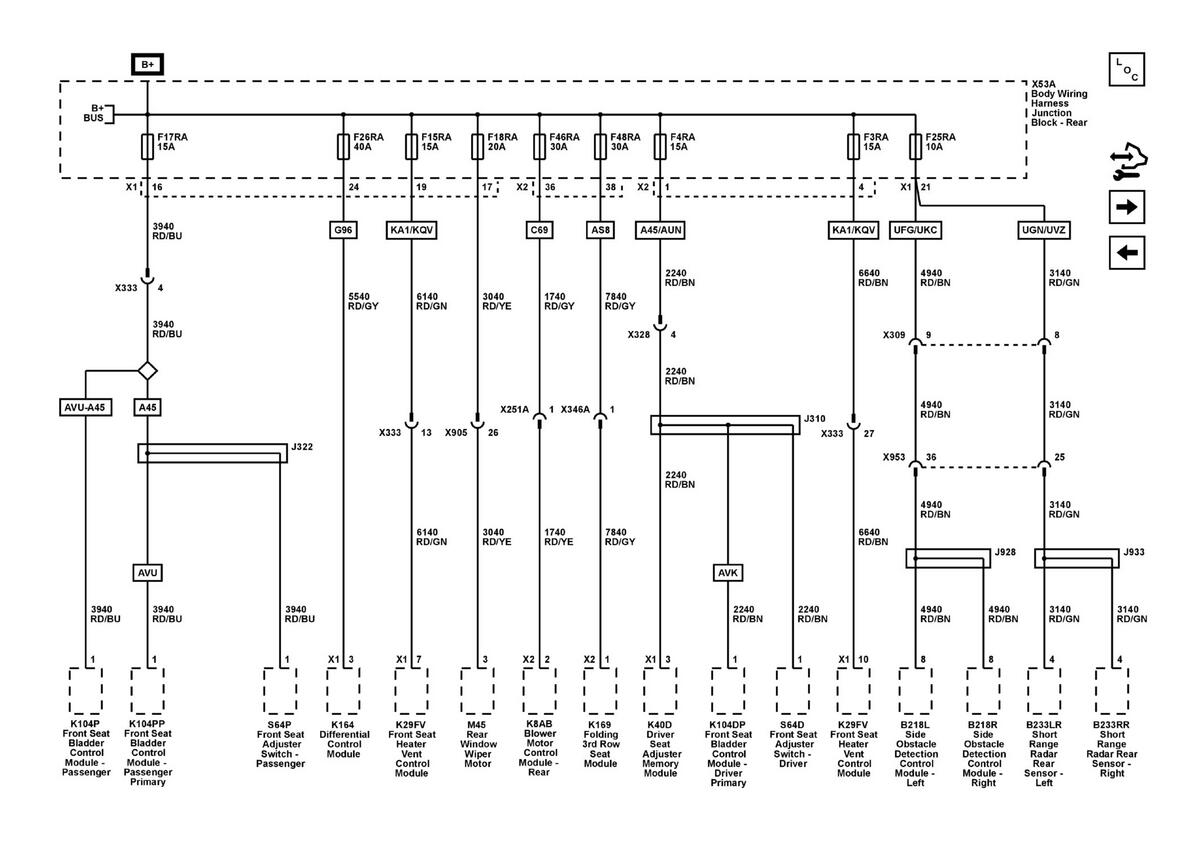

Fig 26: F3RA, F4RA, F15RA, F17RA, F18RA, F25RA, F26RA, F46RA, and F48RA Fuses
GM5998398Courtesy of GENERAL MOTORS COMPANY

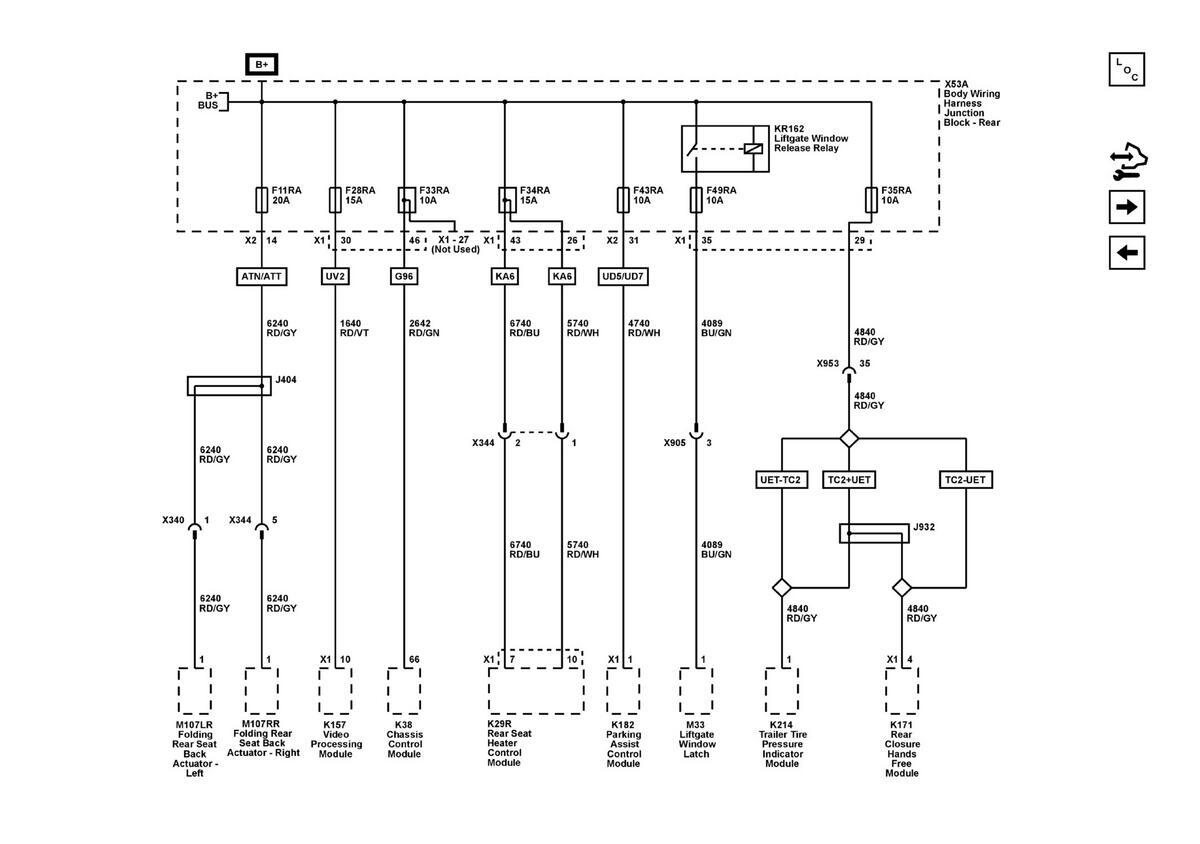

Fig 27: F11RA, F28RA, F34RA, F35RA, F43RA, F46RA, and F48RA Fuses
GM5998399Courtesy of GENERAL MOTORS COMPANY

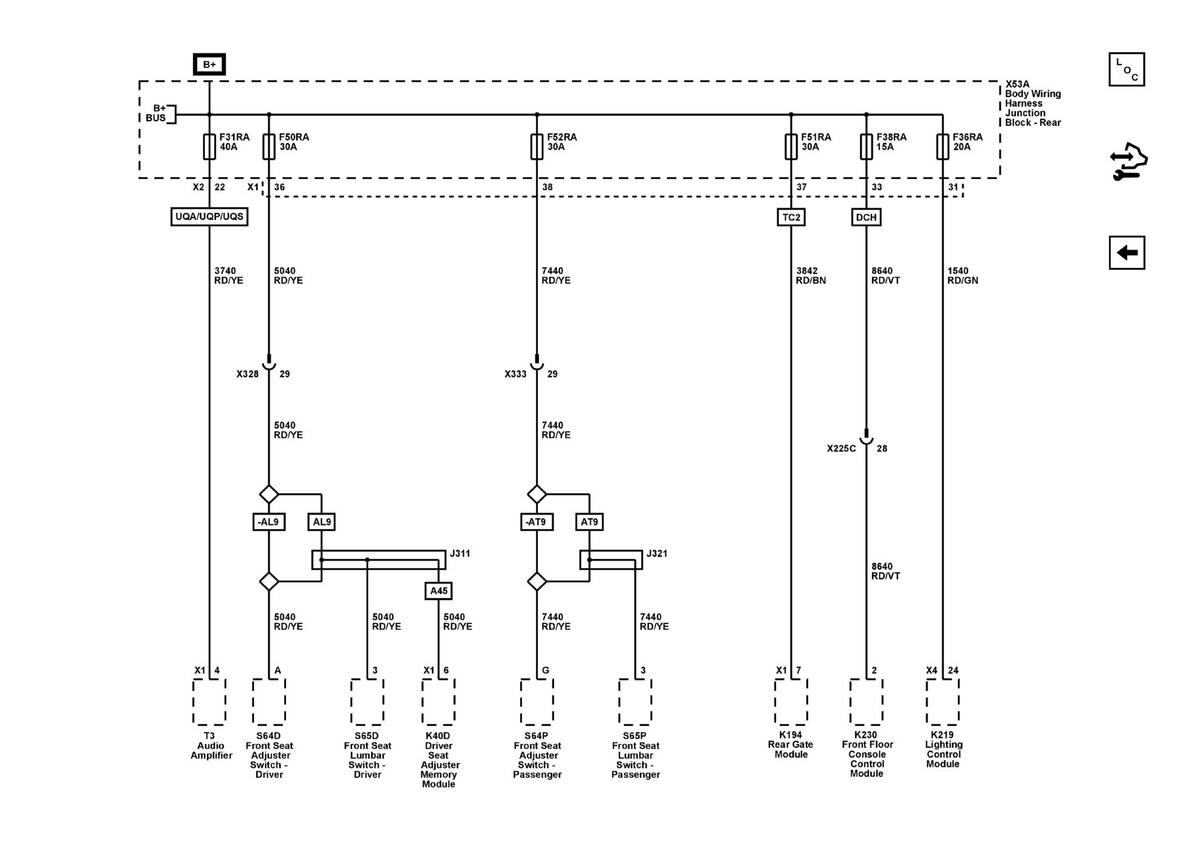

Fig 28: F31RA, F36RA, F38RA, F50RA, F51RA, and F52RA Fuses
GM5998400Courtesy of GENERAL MOTORS COMPANY
