Data Communication Wiring Schematics

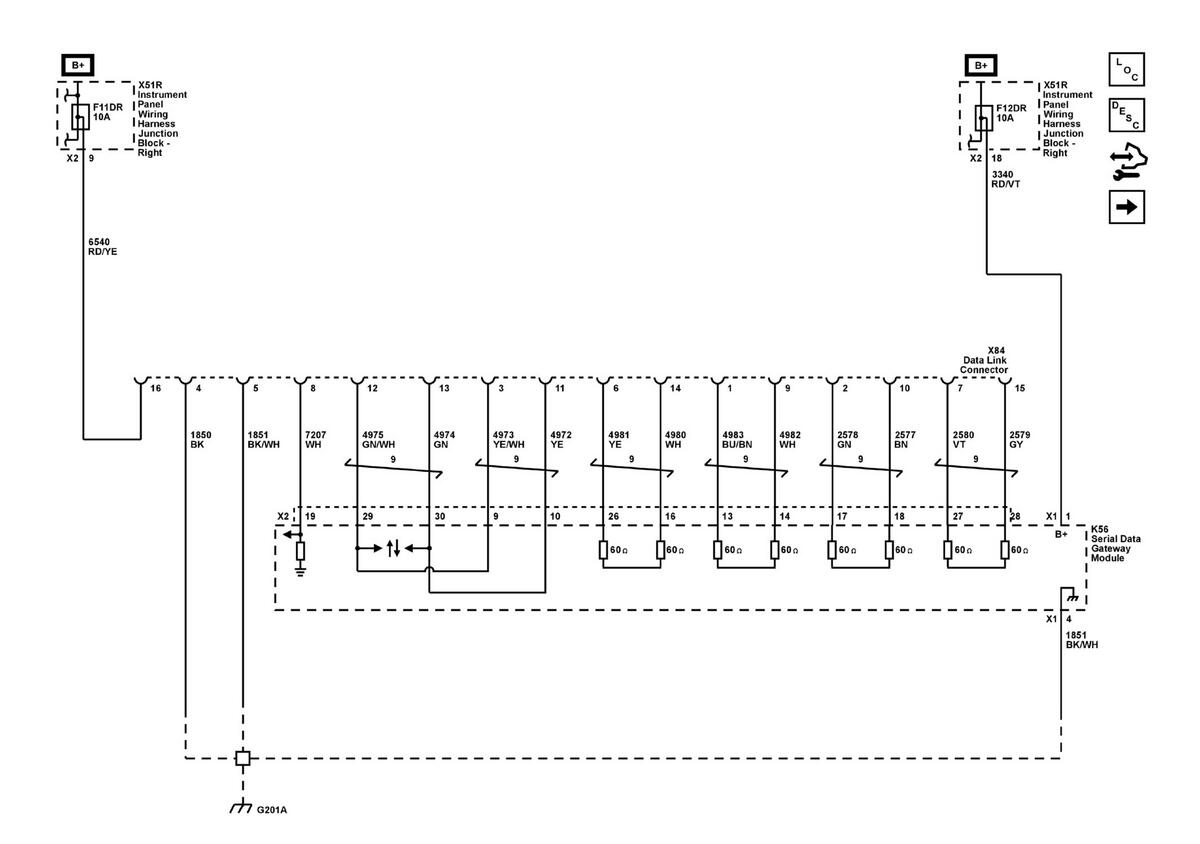

Fig 1: Data Link Connector and Serial Data Gateway Module Power and Ground

GM5998344

Courtesy of GENERAL MOTORS COMPANY

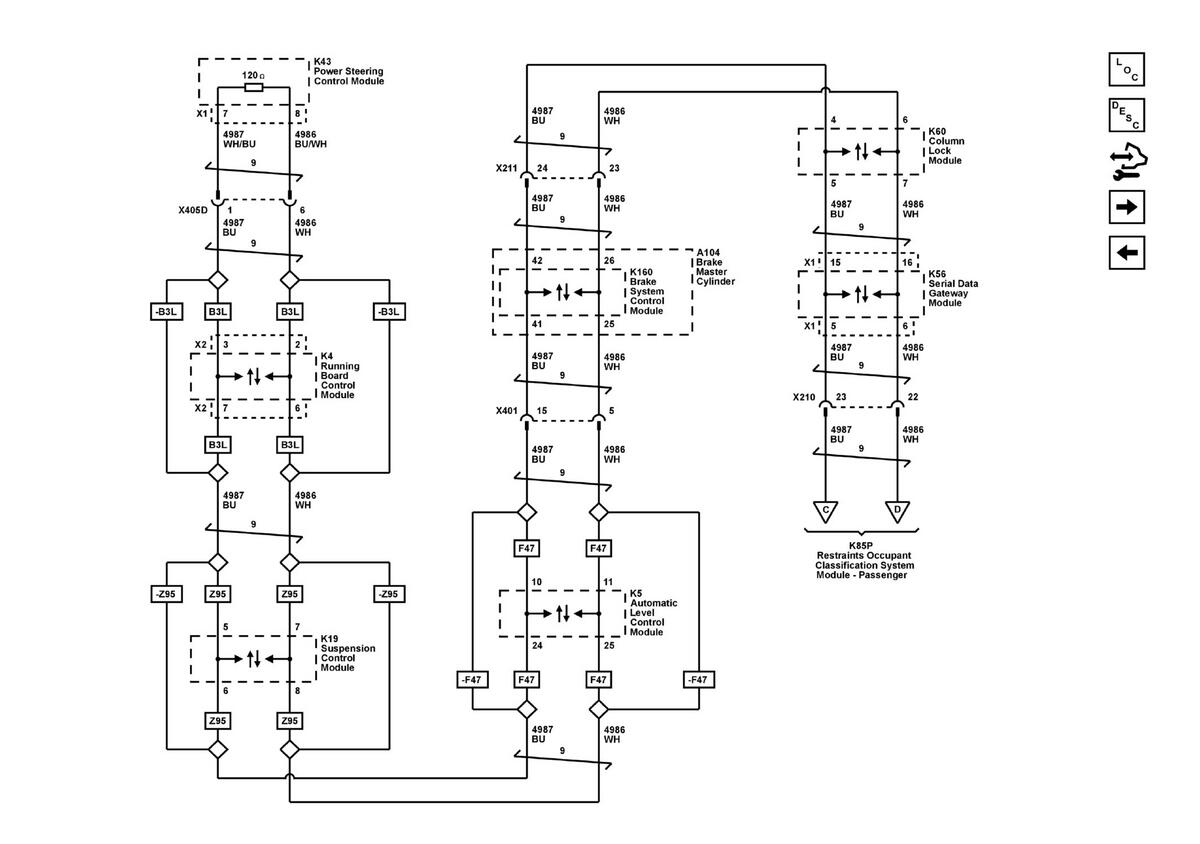

Fig 2: CAN 1 (1 of 2)

GM5998345

Courtesy of GENERAL MOTORS COMPANY

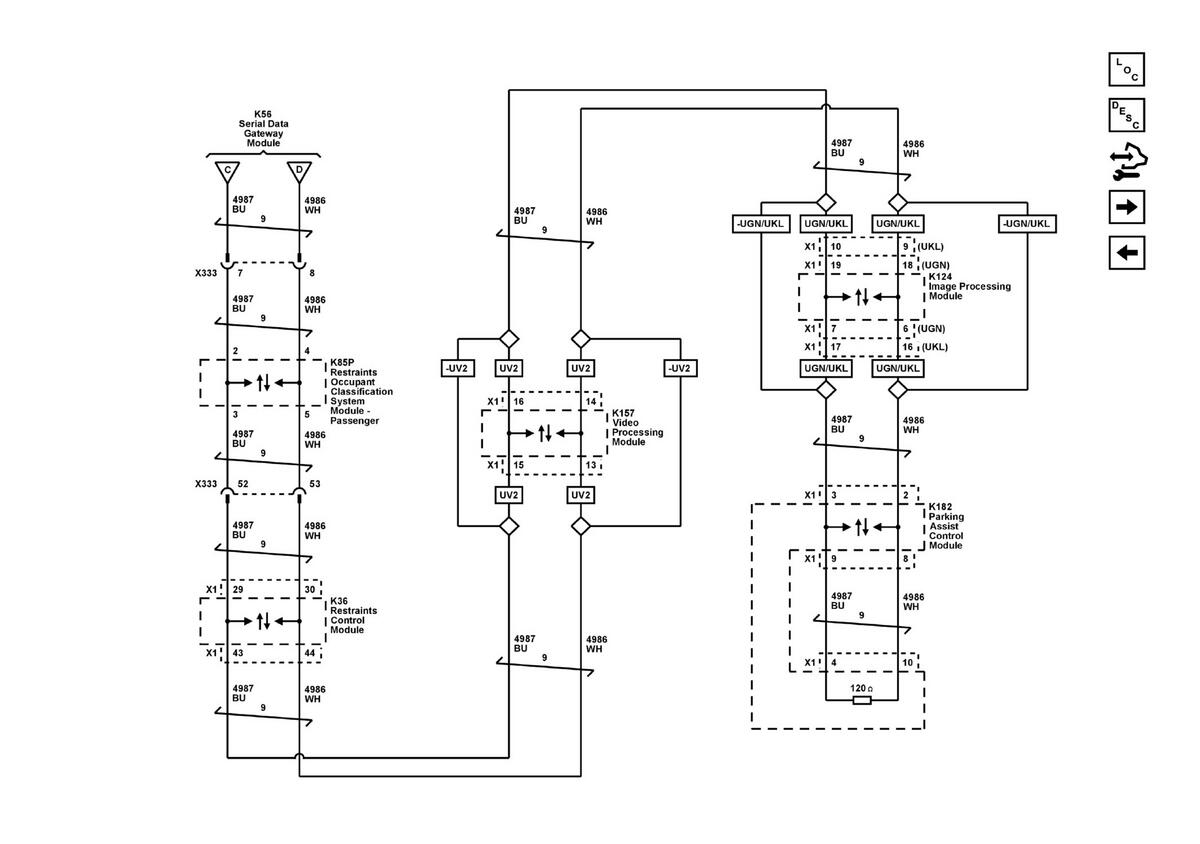

Fig 3: CAN 1 (2 of 2)

GM5998346

Courtesy of GENERAL MOTORS COMPANY

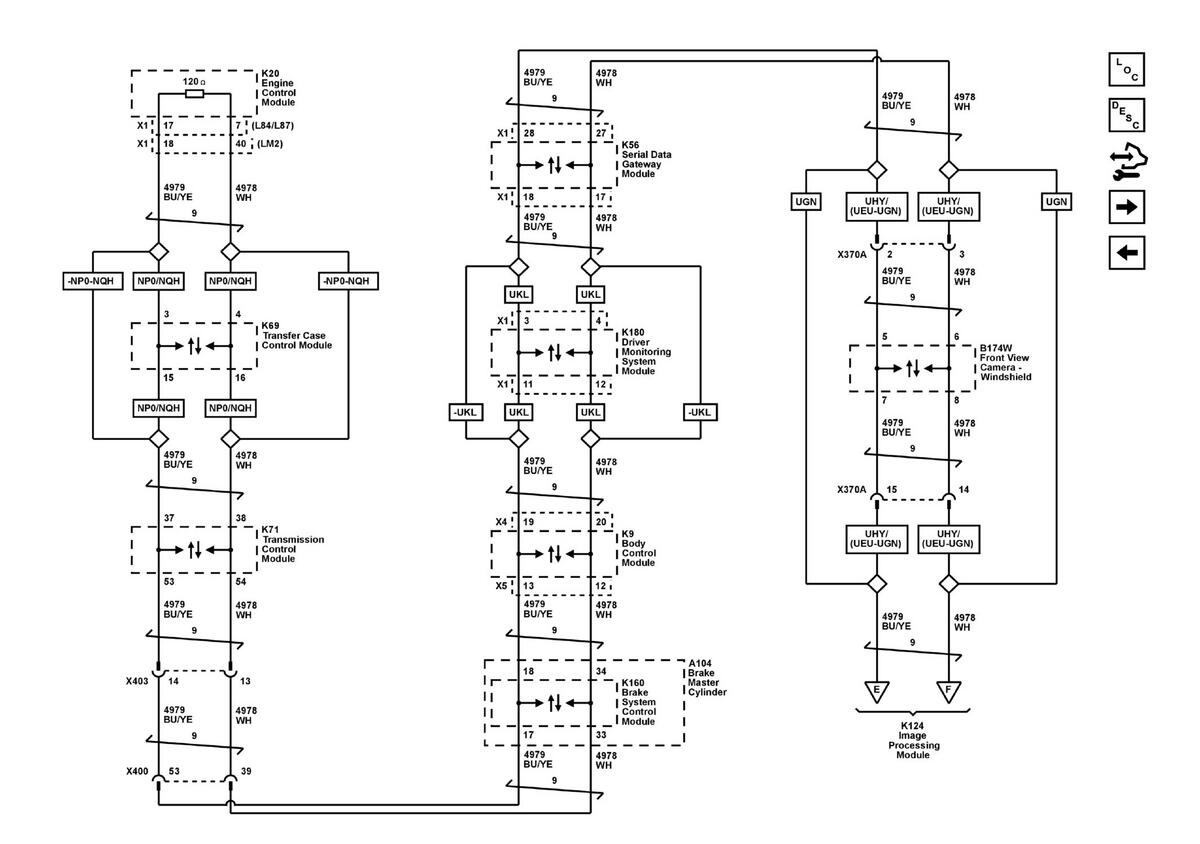

Fig 4: CAN 2 (1 of 2)

GM5998347

Courtesy of GENERAL MOTORS COMPANY

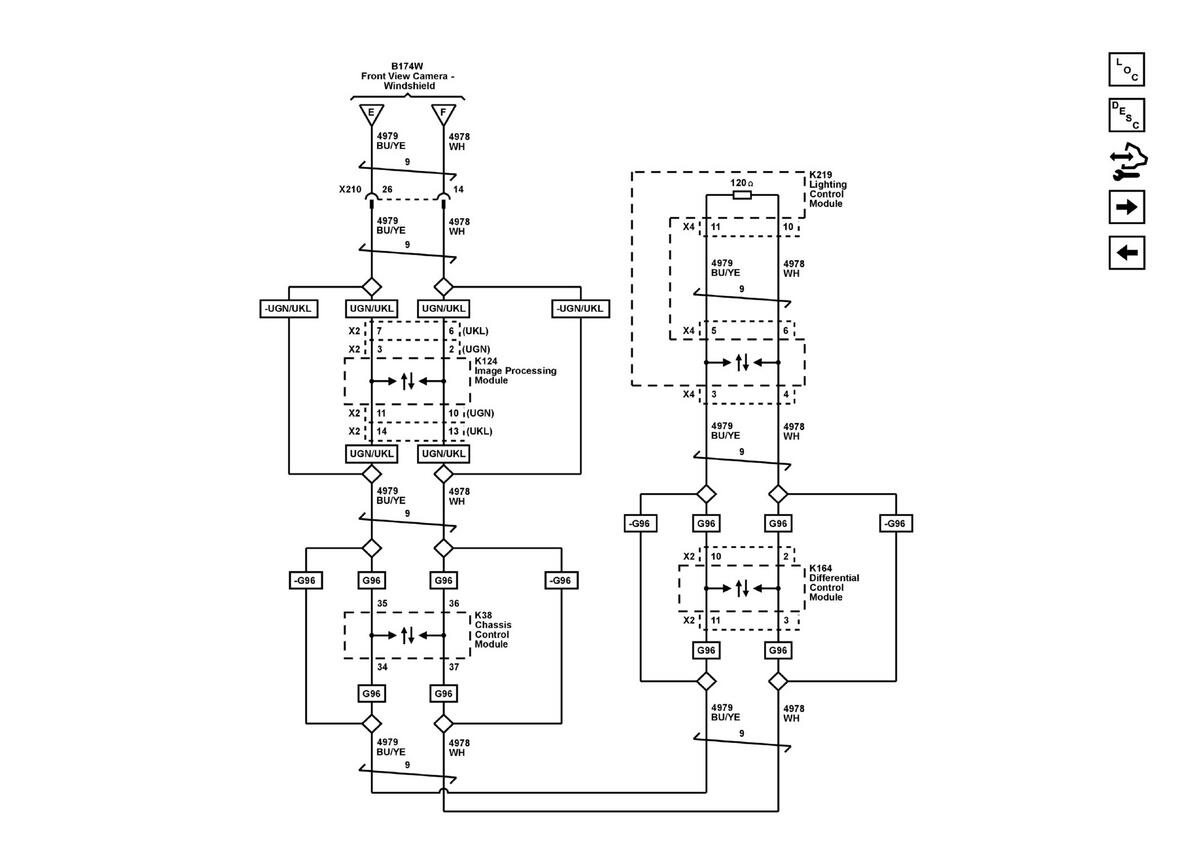

Fig 5: CAN 2 (2 of 2)

GM5998348

Courtesy of GENERAL MOTORS COMPANY

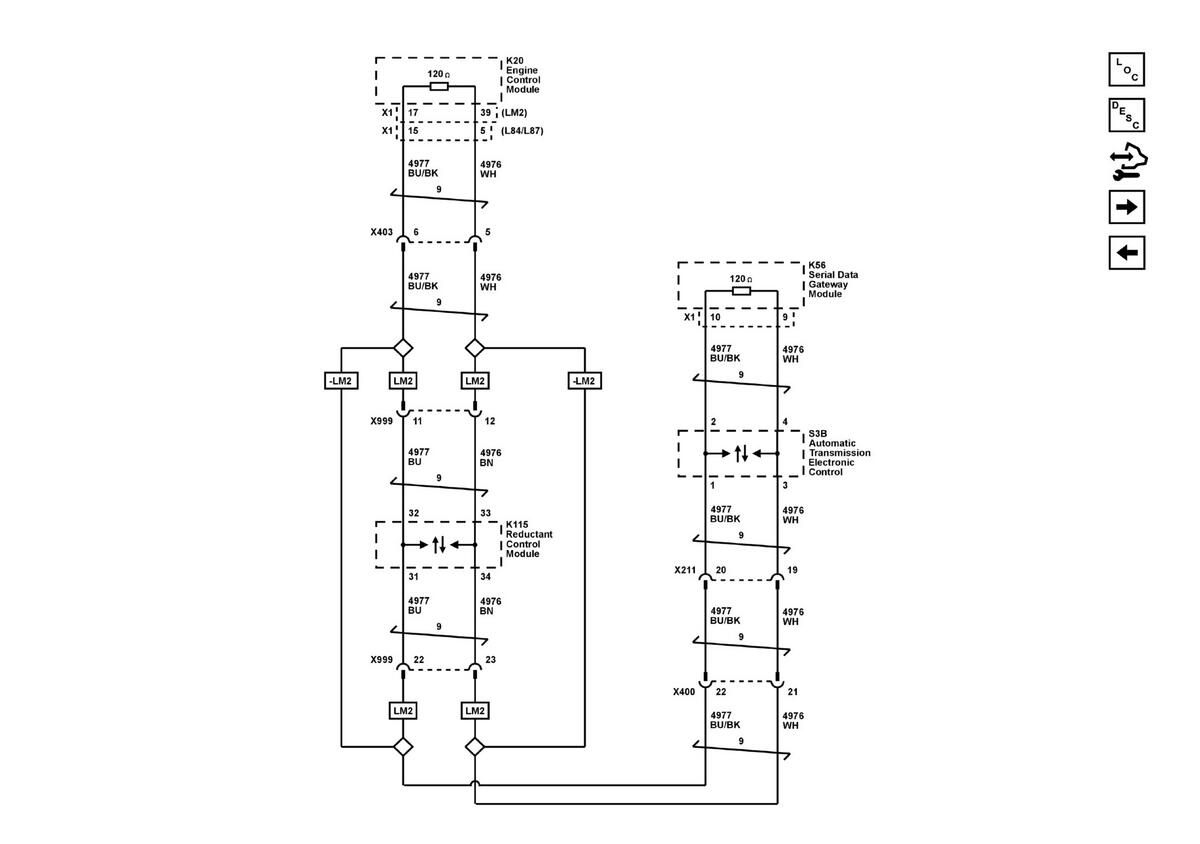

Fig 6: CAN 3

GM5998349

Courtesy of GENERAL MOTORS COMPANY

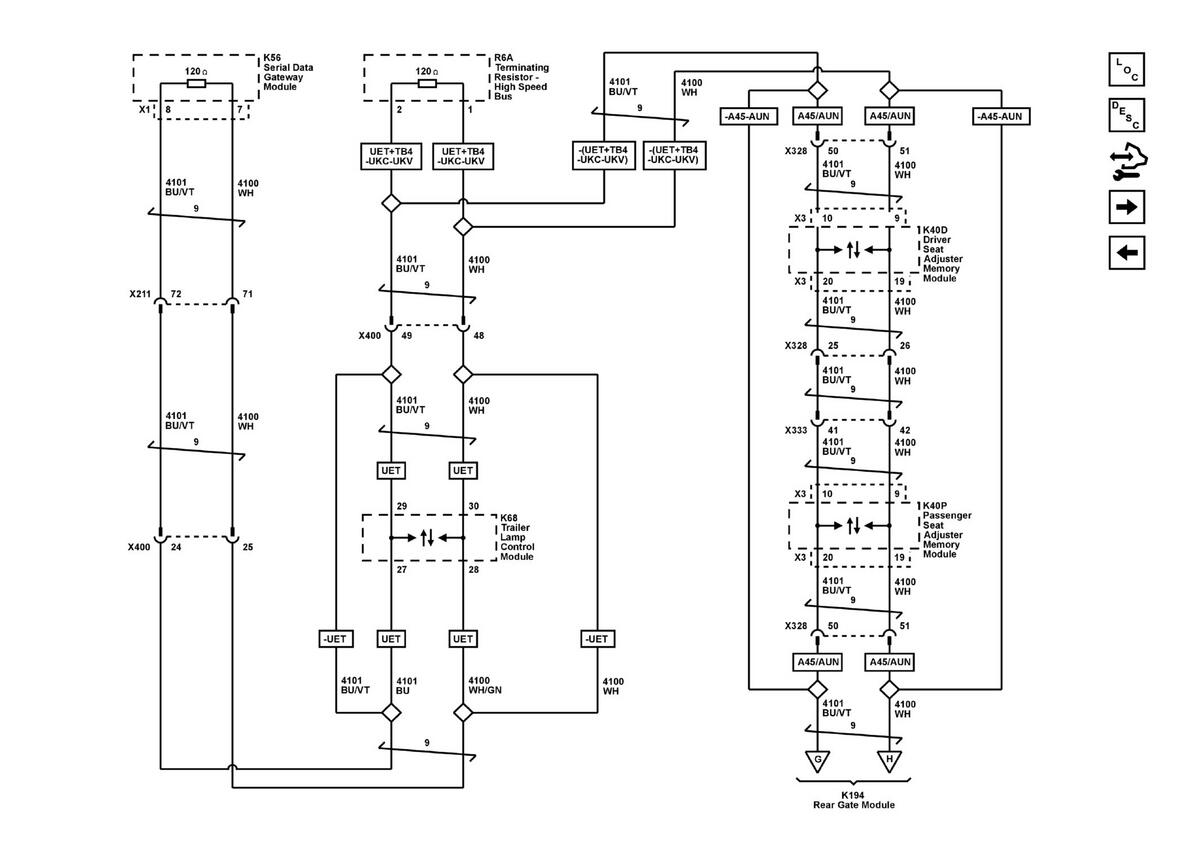

Fig 7: :CAN 4 (1 of 2)

GM5998350

Courtesy of GENERAL MOTORS COMPANY

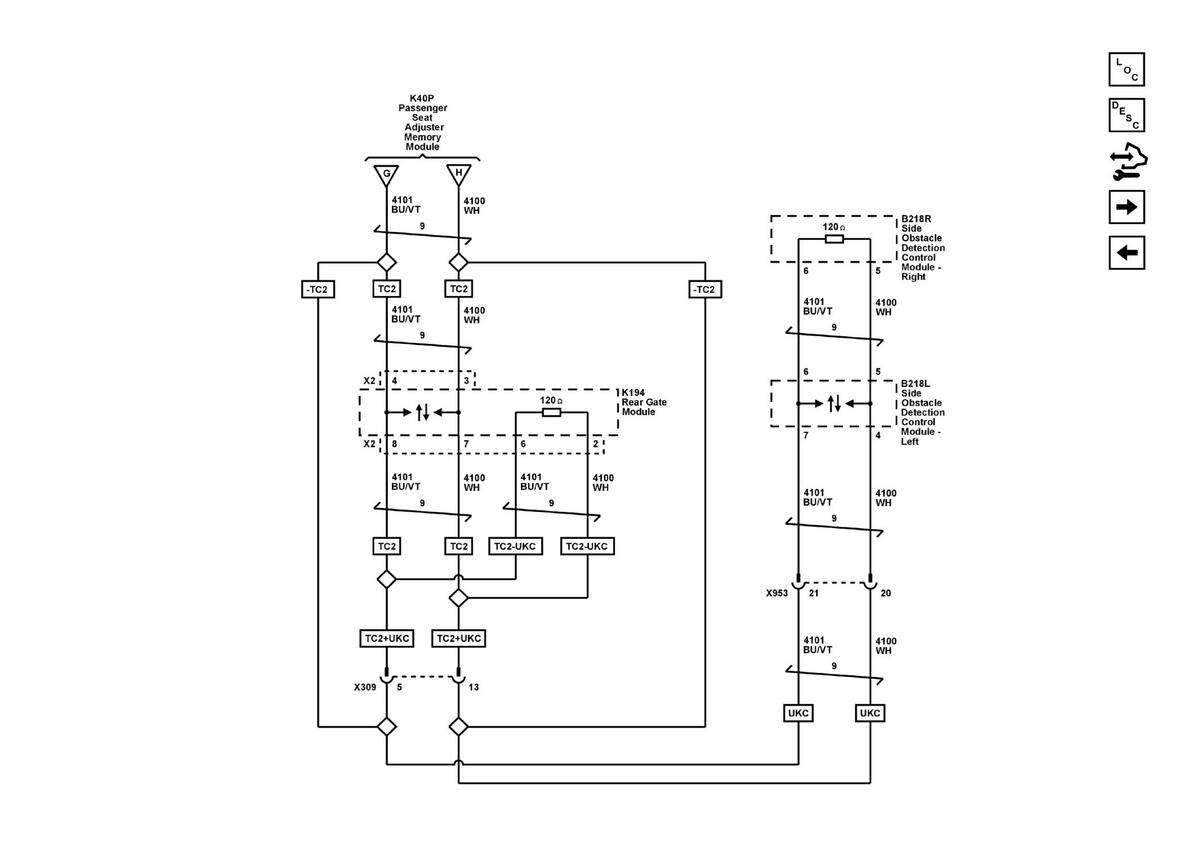

Fig 8: :CAN 4 (2 of 2)

GM5998351

Courtesy of GENERAL MOTORS COMPANY

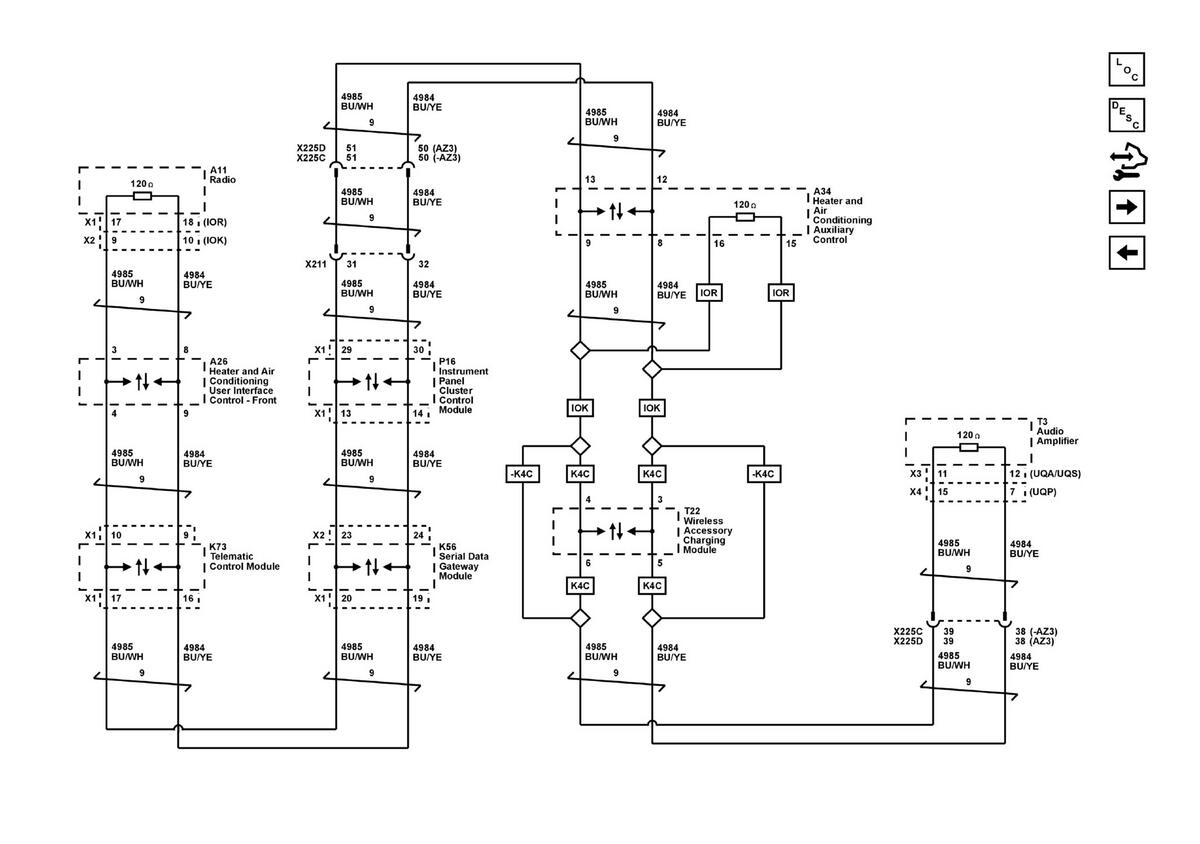

Fig 9: CAN 5

GM5998352

Courtesy of GENERAL MOTORS COMPANY

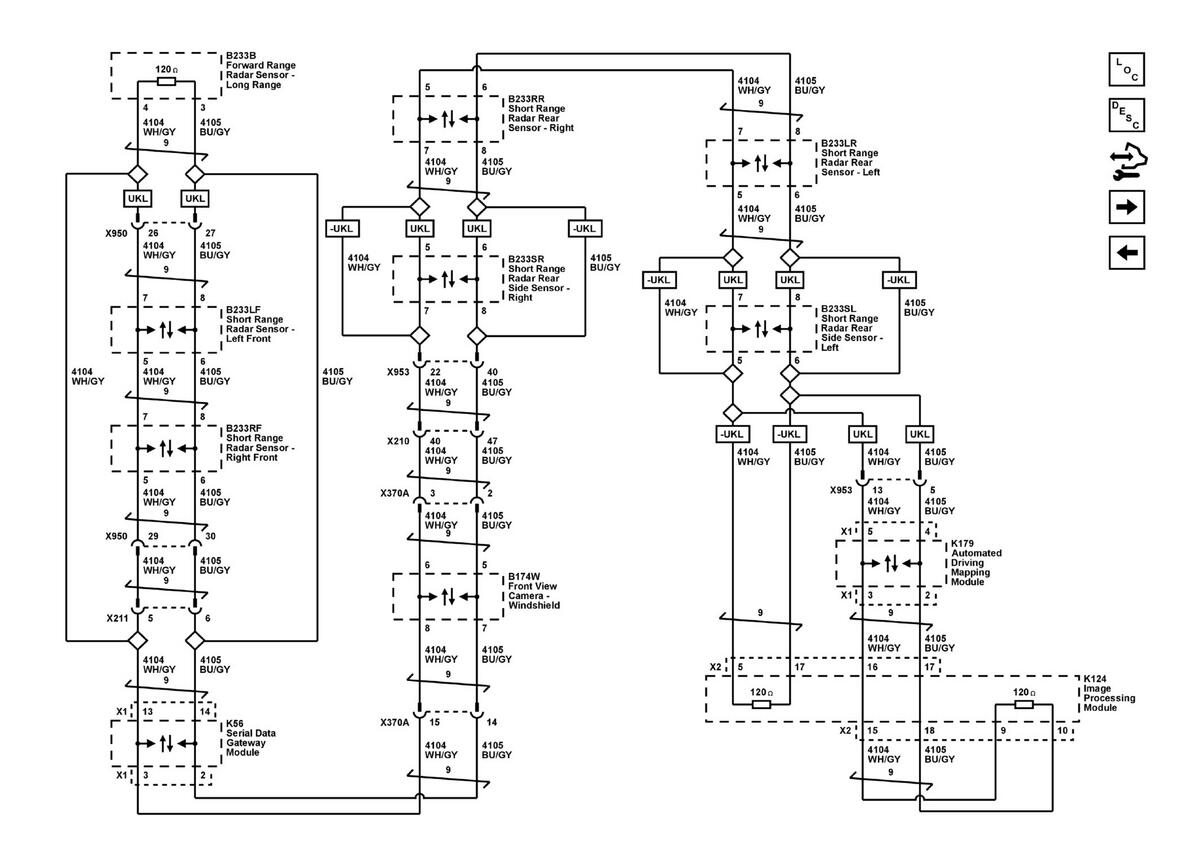

Fig 10: CAN 8 (UGN/UKL/UVZ)

GM5998353

Courtesy of GENERAL MOTORS COMPANY

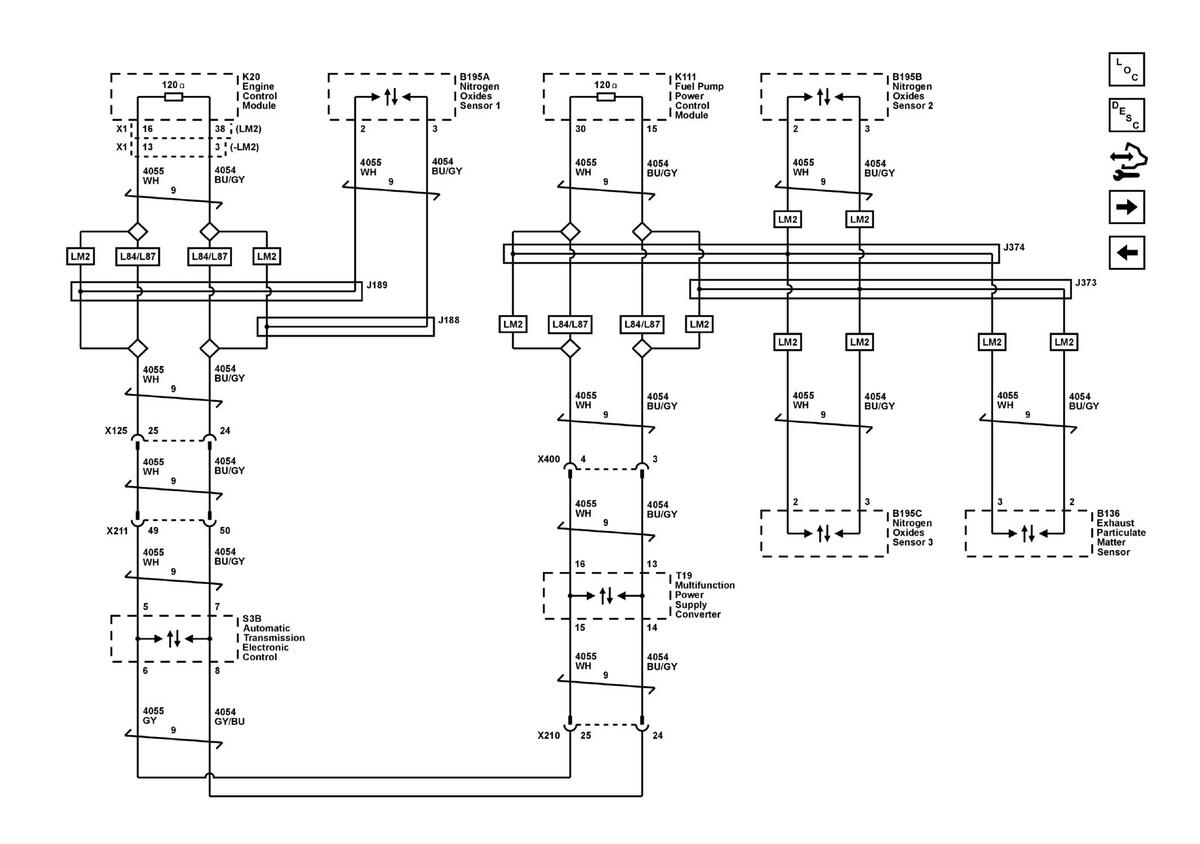

Fig 11: Powertrain CAN

GM5998354

Courtesy of GENERAL MOTORS COMPANY

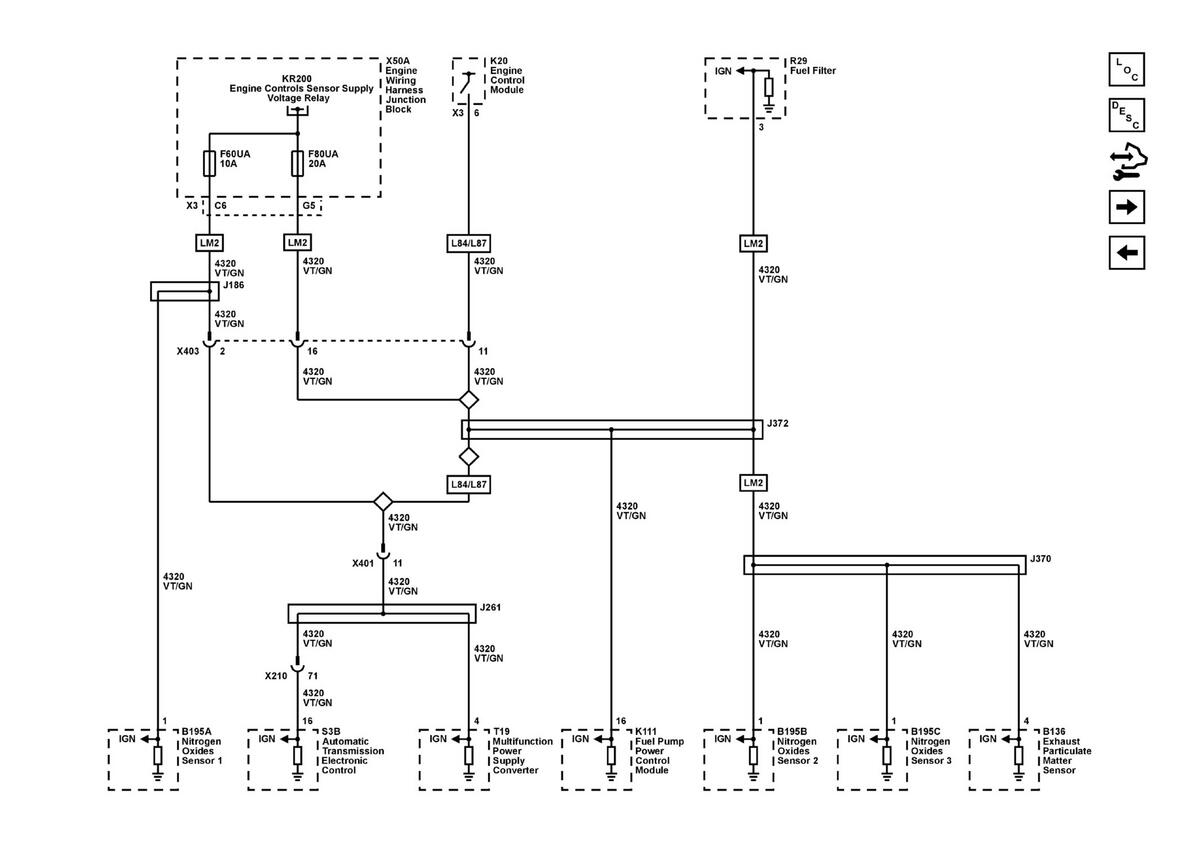

Fig 12: Powertrain CAN Enable

GM5998355

Courtesy of GENERAL MOTORS COMPANY

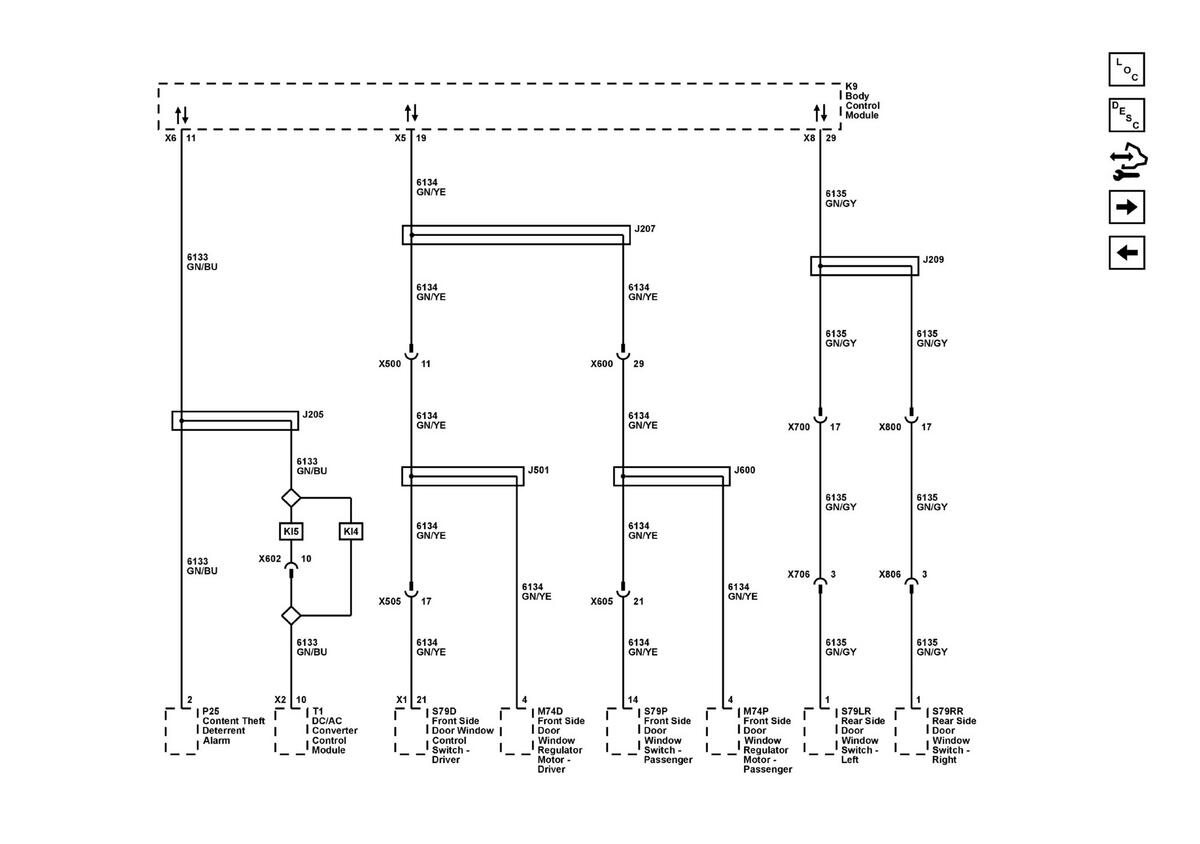

Fig 13: Body Control Module Local Interconnect Network (LIN) Busses 2, 3, and 4

GM5998356

Courtesy of GENERAL MOTORS COMPANY

Fig 14: Body Control Module Local Interconnect Network (LIN) Busses 5, 6, 7, and 8

GM5998357

Courtesy of GENERAL MOTORS COMPANY

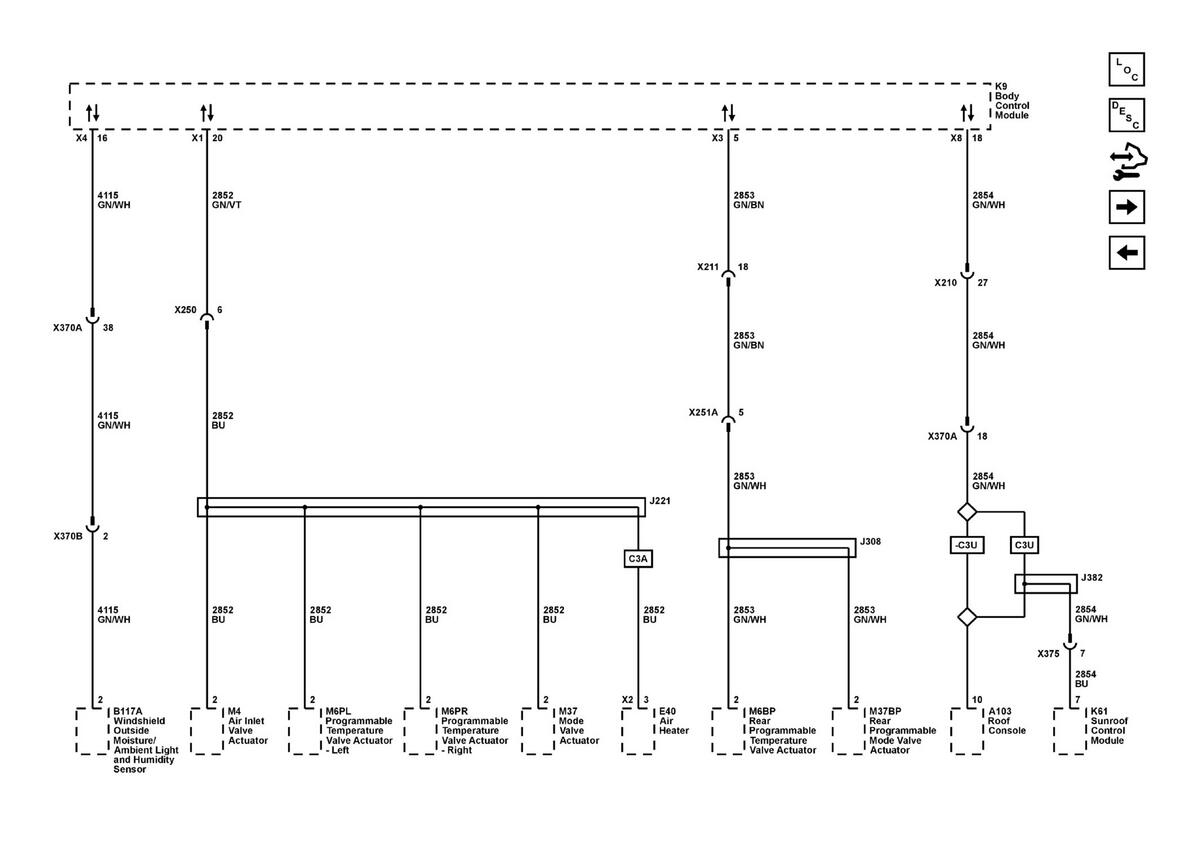

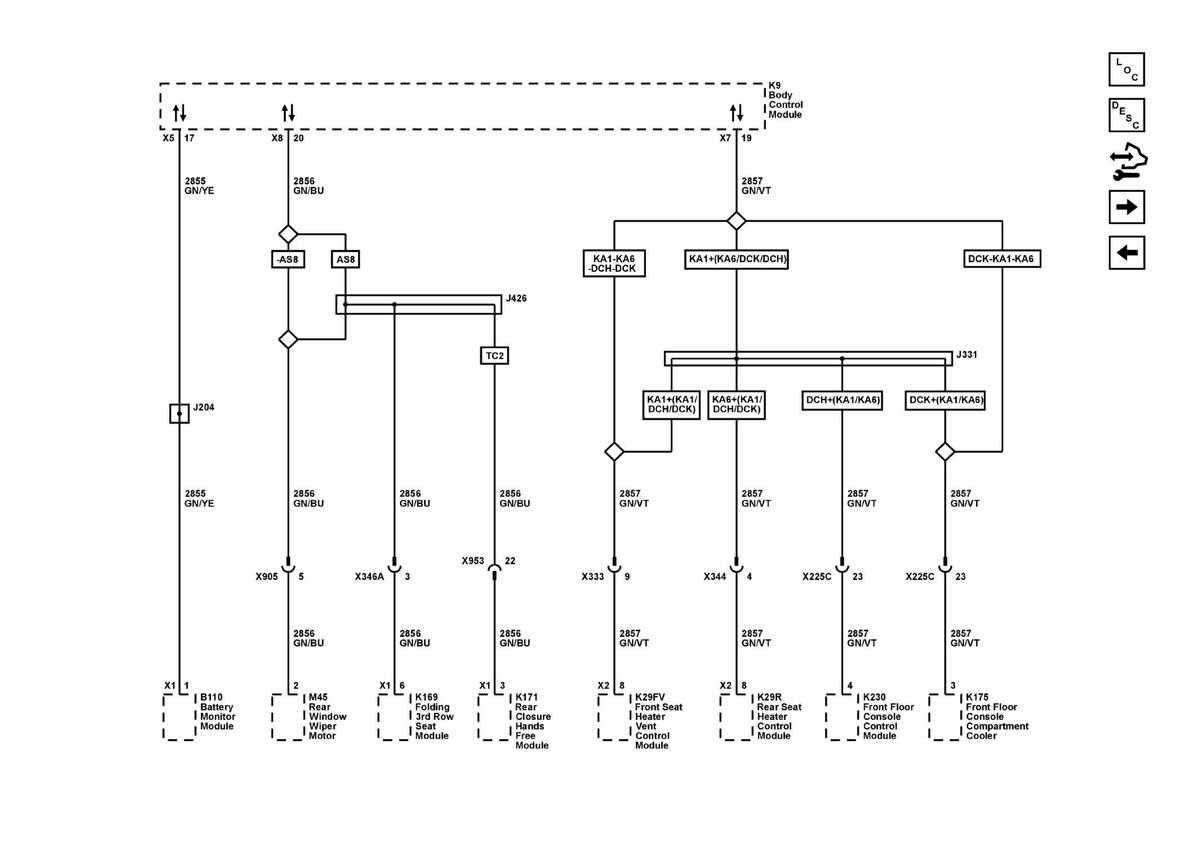

Fig 15: Body Control Module Local Interconnect Network (LIN) Busses 9, 10, and 11

GM5998358

Courtesy of GENERAL MOTORS COMPANY

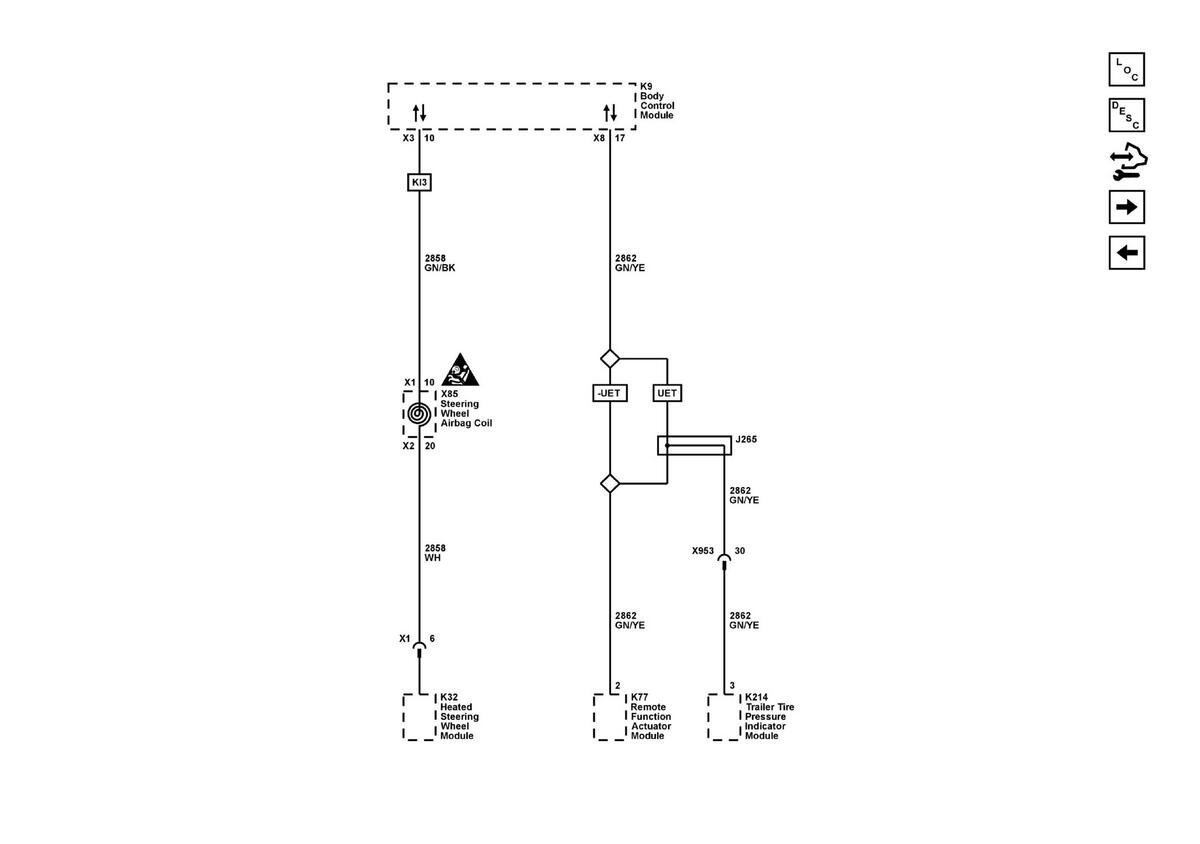

Fig 16: Body Control Module Local Interconnect Network (LIN) Busses 12 and 16

GM5998359

Courtesy of GENERAL MOTORS COMPANY

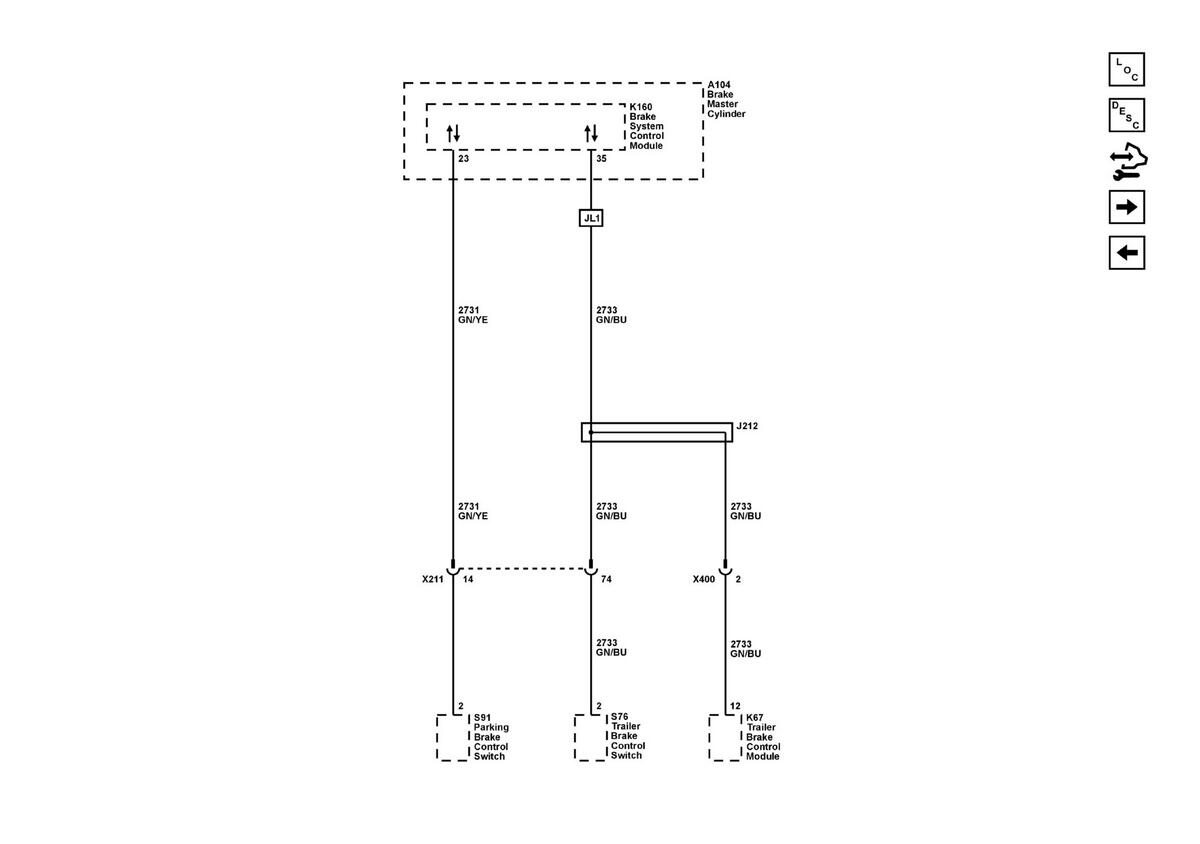

Fig 17: Brake System Control Module Local Interconnect Network (LIN) Busses

GM5998360

Courtesy of GENERAL MOTORS COMPANY

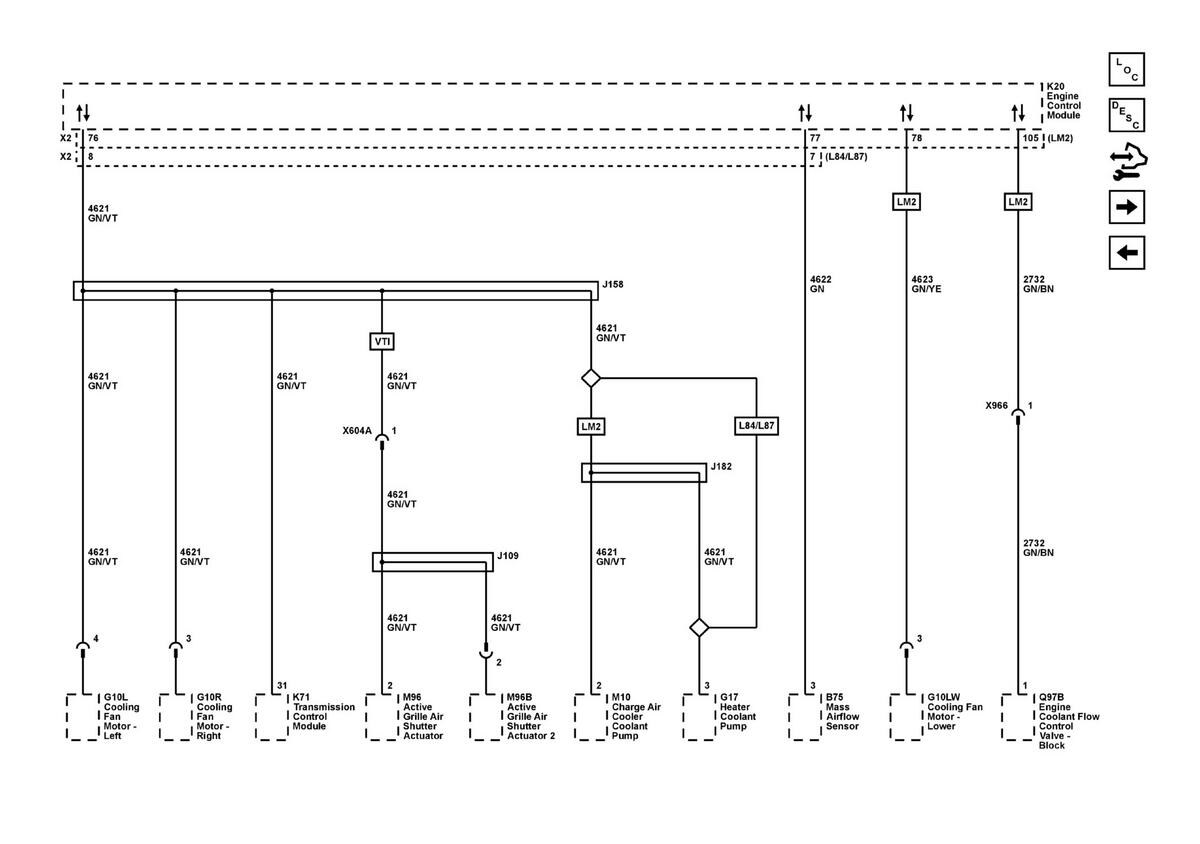

Fig 18: Engine Control Module Local Interconnect Network (LIN) Busses

GM5998361

Courtesy of GENERAL MOTORS COMPANY

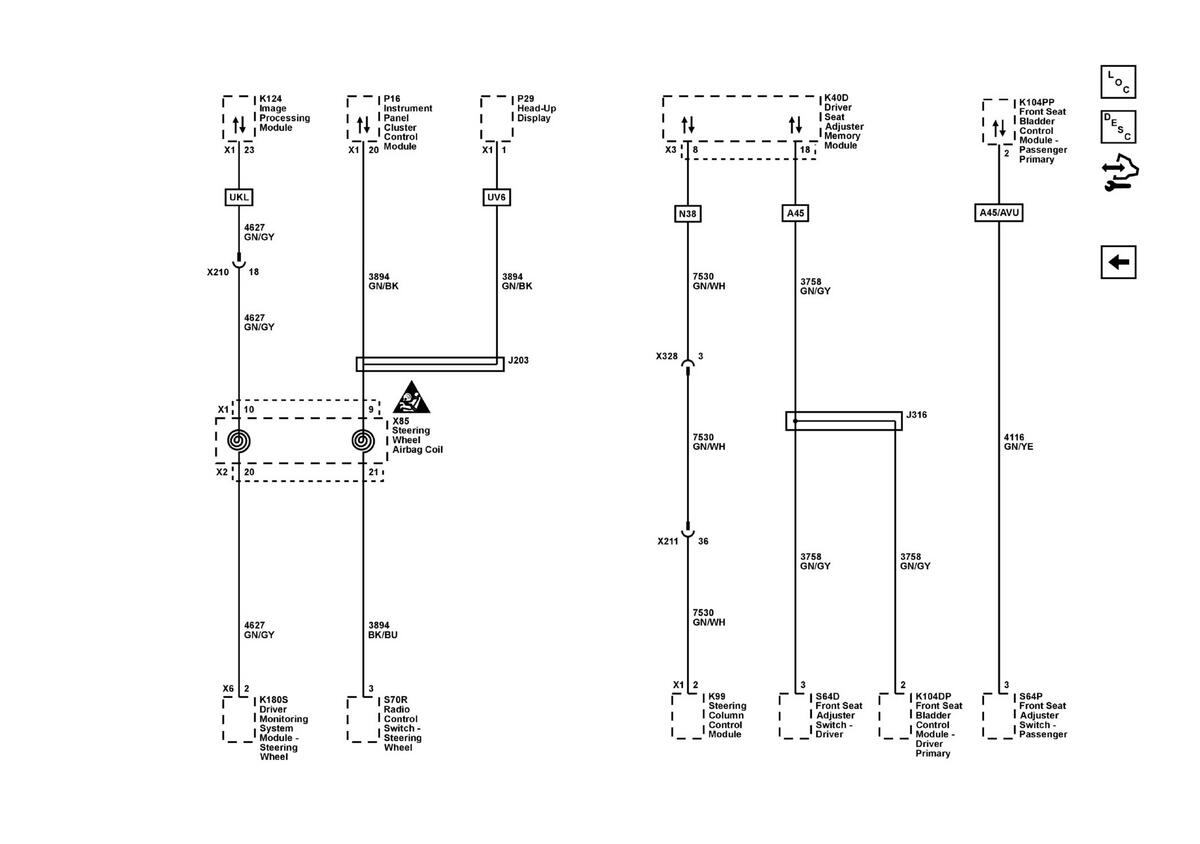

Fig 19: Instrument Panel Cluster, Seat Memory Module, and Near Field Communication Module Local Interconnect Network (LIN) Busses

GM5998362

Courtesy of GENERAL MOTORS COMPANY

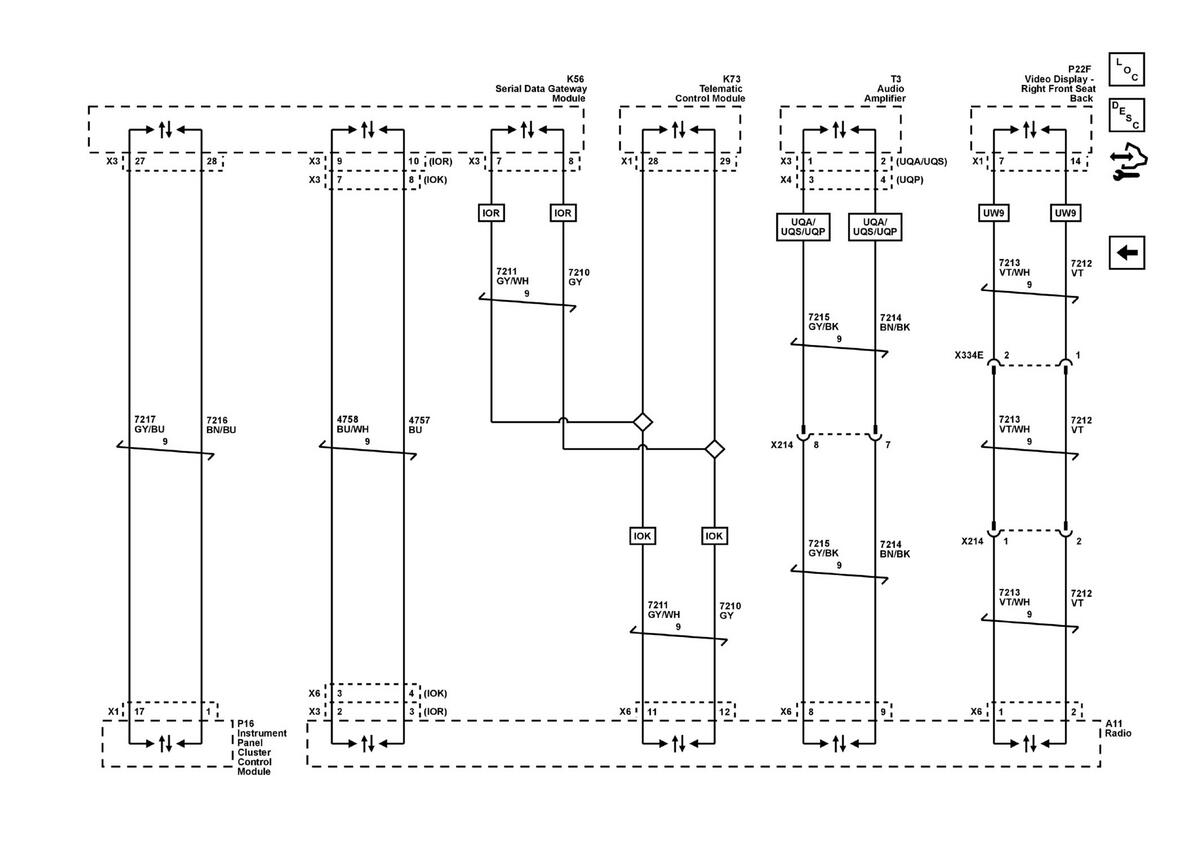

Fig 20: Ethernet Bus (1 of 2)

GM5998363

Courtesy of GENERAL MOTORS COMPANY

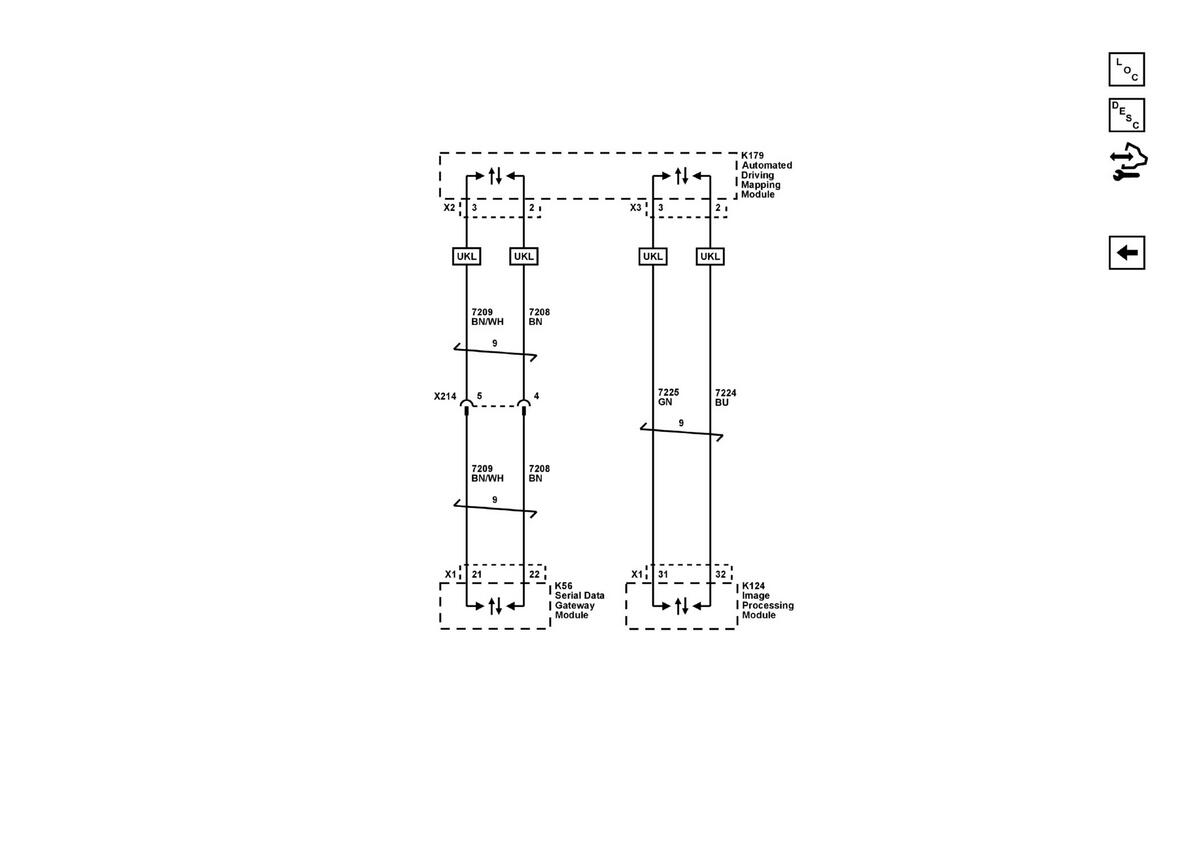

Fig 21: Ethernet Bus (UKL) (2 of 2)

GM6100313

Courtesy of GENERAL MOTORS COMPANY
