Steering Wheel Spoke Cover Replacement
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:

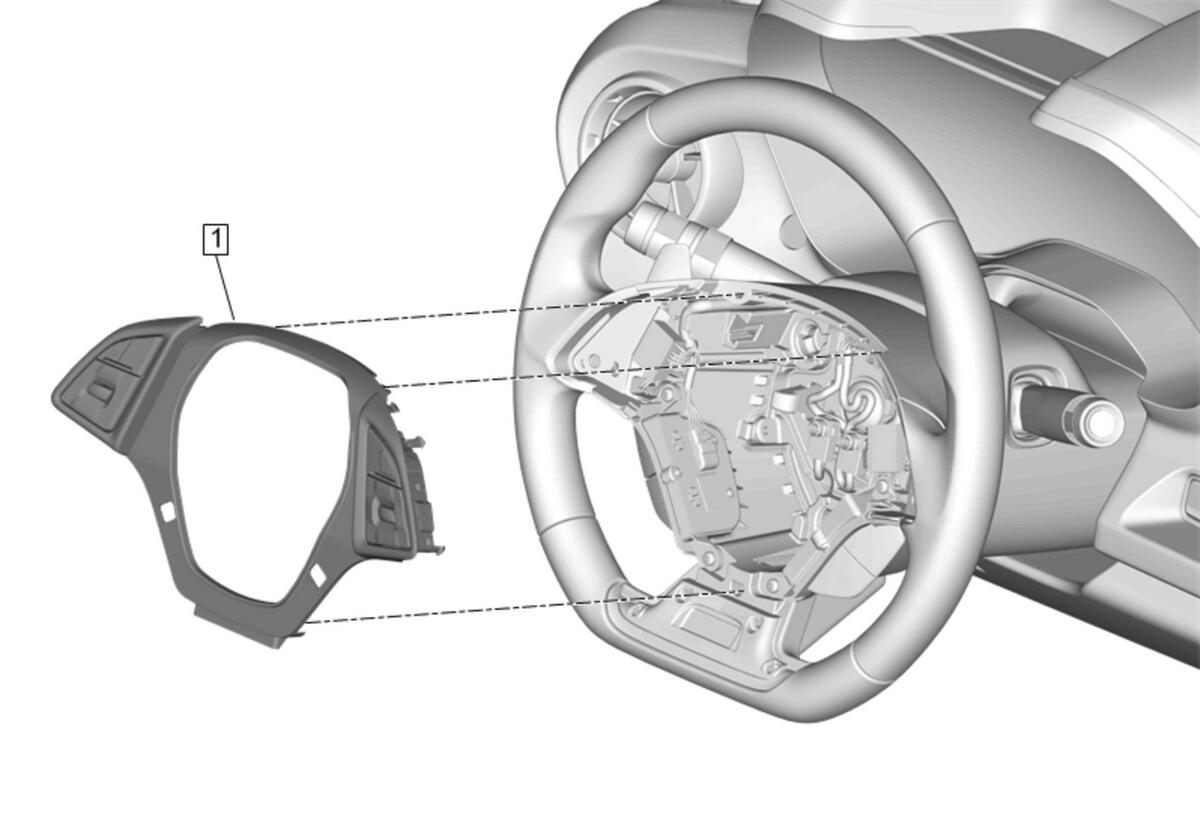

Callouts items in the following chart represent components shown in graphic above.
| Callout |
Component Name |
|
Preliminary Procedures
- Steering Wheel Airbag Replacement
- Steering Wheel Spoke Lower Cover Replacement
|
| 1 |
Steering Wheel Spoke Cover Procedure
- Use a flat bladed plastic tool to remove.
- Disconnect the electrical connectors.
- Transfer components as necessary.
|
