Seal Locations (3 of 3)
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|
NOTE:

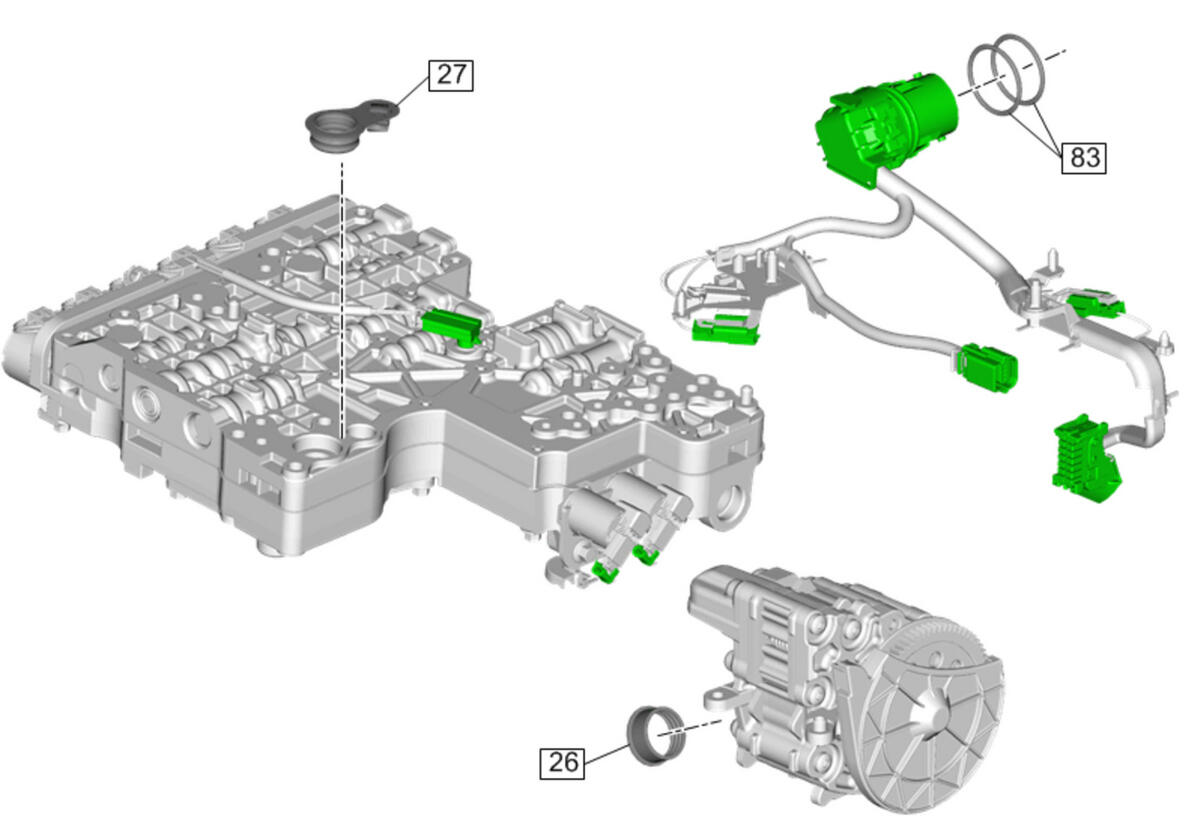

Callouts in the following chart represent components shown in graphic above.
| Callout |
Component Name |
| 26 |
Automatic Transmission Fluid Pump Seal |
| 27 |
Automatic Transmission Fluid Pump Seal |
| 83 |
Wiring Harness Connector Seal - O-Ring [2x] |
