1-2-3-4-6-7-8-10 Reverse and 4-5-6-7-8-9-10 Reverse Clutch Assembly
WARNING: This page is about a different variant/trim than selected.
NOTE:

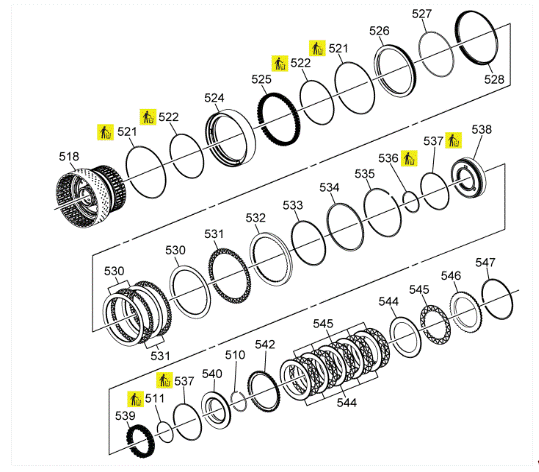

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 510 | 2-3-4-5-7-9-10 Clutch Piston Dam Retaining Ring |
| 511 | 2-3-4-5-7-9-10 Clutch Piston Seal- Inner |
| 518 | Triple Clutch Housing |
| 521 | 4-5-6-7-8-9-10-Reverse Clutch Piston Seal- Outer |
| 522 | 4-5-6-7-8-9-10-Reverse Clutch Piston Seal- Inner |
| 524 | 4-5-6-7-8-9-10-Reverse Clutch Piston |
| 525 | 4-5-6-7-8-9-10-Reverse Clutch Piston Return Spring |
| 526 | 4-5-6-7-8-9-10-Reverse Clutch Piston Dam |
| 527 | 4-5-6-7-8-9-10-Reverse Clutch Piston Dam Retaining Ring |
| 528 | 4-5-6-7-8-9-10-Reverse Clutch Apply Ring |
| 530 | 4-5-6-7-8-9-10-Reverse Steel Clutch Plate |
| 531 | 4-5-6-7-8-9-10-Reverse Fiber Clutch Plate |
| 532 | 4-5-6-7-8-9-10-Reverse Clutch Backing Plate |
| 533 | 4-5-6-7-8-9-10-Reverse Clutch Backing Plate Retaining Ring - Selective |
| 534 | 4-5-6-7-8-9-10-Reverse Clutch Retaining Ring Retainer |
| 535 | 4-5-6-7-8-9-10-Reverse Clutch Backing Plate Retaining Ring Retaining Ring |
| 536 | 1-2-3-4-6-7-8-10-Reverse Clutch Piston Seal- Inner |
| 537 | 1-2-3-4-6-7-8-10-Reverse Clutch Piston Seal- Outer |
| 538 | 1-2-3-4-6-7-8-10-Reverse Clutch Piston |
| 539 | 1-2-3-4-6-7-8-10-Reverse Clutch Piston Return Spring |
| 540 | 1-2-3-4-6-7-8-10-Reverse Clutch Piston Dam |
| 542 | 1-2-3-4-6-7-8-10-Reverse Clutch Apply Ring |
| 544 | 1-2-3-4-6-7-8-10-Reverse Steel Clutch Plate |
| 545 | 1-2-3-4-6-7-8-10-Reverse Fiber Clutch Plate |
| 546 | 1-2-3-4-6-7-8-10-Reverse Clutch Backing Plate |
| 547 | 1-2-3-4-6-7-8-10-Reverse Clutch Backing Plate Retaining Ring - Selective |
