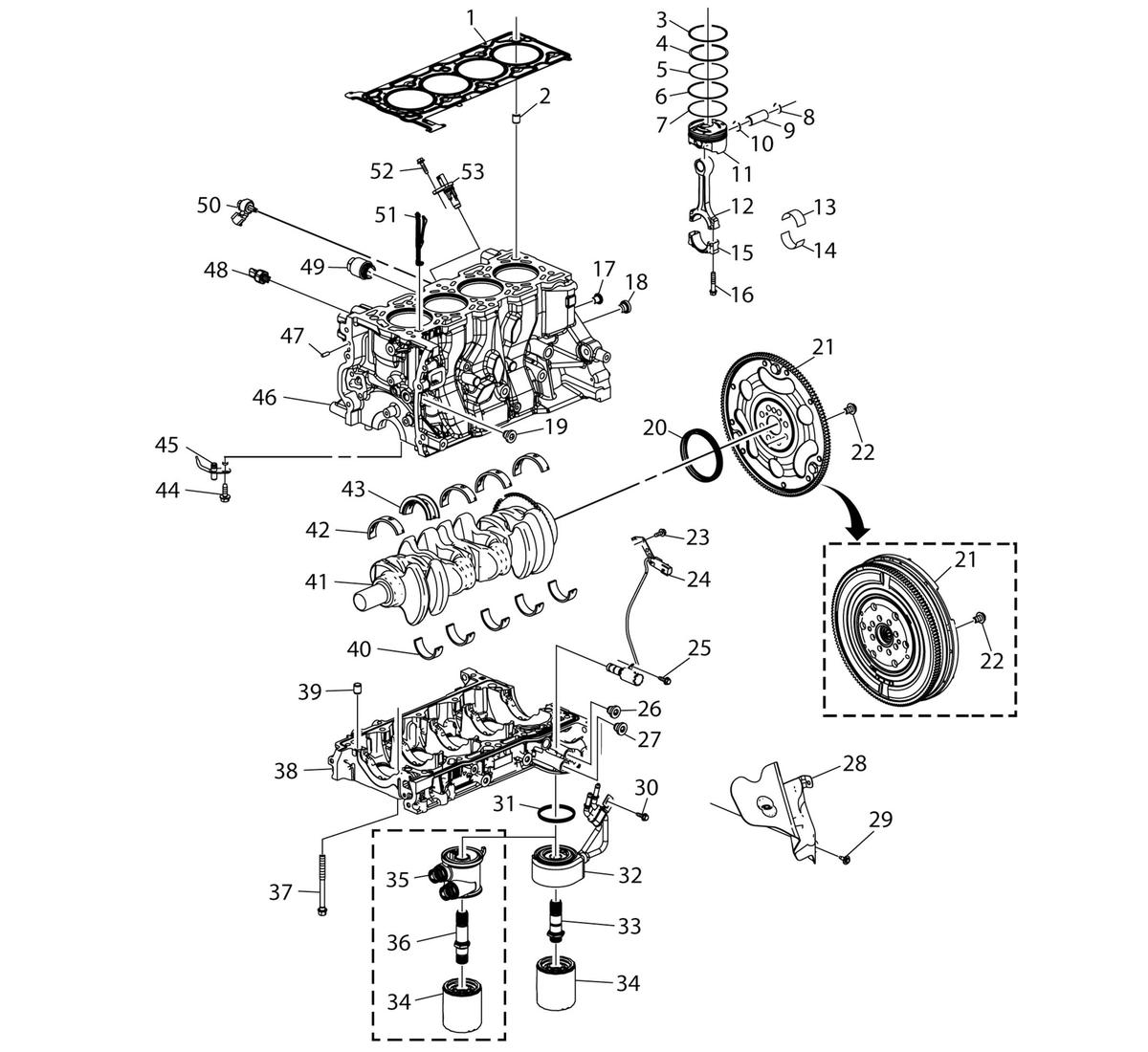

Engine Block and Components
WARNING: This page is about a different variant/trim than selected.
NOTE:
Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Cylinder Head Gasket |
| 2 | Cylinder Head Locating Pin[2x] |
| 3 | Piston Compression Upper Ring[4x] |
| 4 | Piston Compression Lower Ring[4x] |
| 5 | Piston Oil Ring Rail[4x] |
| 6 | Piston Oil Ring Rail Spacer[4x] |
| 7 | Piston Oil Ring Rail[4x] |
| 8 | Piston Pin Retainer[4x] |
| 9 | Piston Pin[4x] |
| 10 | Piston Pin Retainer[4x] |
| 11 | Piston[4x] |
| 12 | Connecting Rod[4x] |
| 13 | Connecting Rod Bearing[4x] |
| 14 | Connecting Rod Bearing[4x] |
| 15 | Connecting Rod Cap[4x] |
| 16 | Connecting Rod Bolt[8x] |
| 17 | Engine Block Oil Gallery Plug |
| 18 | Engine Block Oil Gallery Plug |
| 19 | Engine Block Oil Gallery Plug |
| 20 | Crankshaft Rear Oil Seal |
| 21 | Automatic Transmission Flex Plate - Model Dependent |
| 21 | Engine Flywheel - Model Dependent |
| 22 | Automatic Transmission Flex Plate Bolt[8x] - Model Dependent |
| 22 | Engine Flywheel Bolt[8x] - Model Dependent |
| 23 | Oil Pump Flow Control Valve Bolt |
| 24 | Oil Pump Flow Control Valve |
| 25 | Oil Pump Flow Control Valve Bolt |
| 26 | Engine Block Oil Gallery Plug |
| 27 | Engine Block Oil Gallery Plug |
| 28 | Oil Pump Flow Control Valve Heat Shield |
| 29 | Pump and Component Oil Heat Shield Bolt[2x] |
| 30 | Engine Oil Cooler Bolt |
| 31 | Engine Oil Cooler Seal |
| 32 | Engine Oil Cooler - Model Dependent |
| 33 | Engine Oil Cooler Connector - Model Dependent |
| 34 | Oil Filter |
| 35 | Engine Oil Cooler Adapter - Model Dependent |
| 36 | Oil Filter Fitting - Model Dependent |
| 37 | Lower Crankcase Bolt[10x] |
| 38 | Lower Crankcase |
| 39 | Lower Crankcase Locating Pin[4x] |
| 40 | Crankshaft Lower Bearing |
| 41 | Crankshaft |
| 42 | Crankshaft Upper Bearing |
| 43 | Crankshaft Thrust Upper Bearing |
| 44 | Piston Oil Nozzle Bolt |
| 45 | Piston Oil Nozzle[4x] |
| 46 | Engine Block |
| 47 | Engine Front Cover Locating Pin[2x] |
| 48 | Engine Oil Pressure Sensor |
| 49 | Engine Coolant Heater |
| 50 | Knock Sensor |
| 51 | Engine Block Coolant Baffle |
| 52 | Crankshaft Position Sensor Bolt |
| 53 | Crankshaft Position Sensor |
