Engine Verification Label

WARNING: This page is about a different variant/trim than selected.

The engine verification label is located in two places on the engine and consists of the broadcast code and bar code. This label is used in engine and vehicle assembly plants and is not intended to be permanent. If it is missing refer back to the engine block VIN pad for the permanent ID.

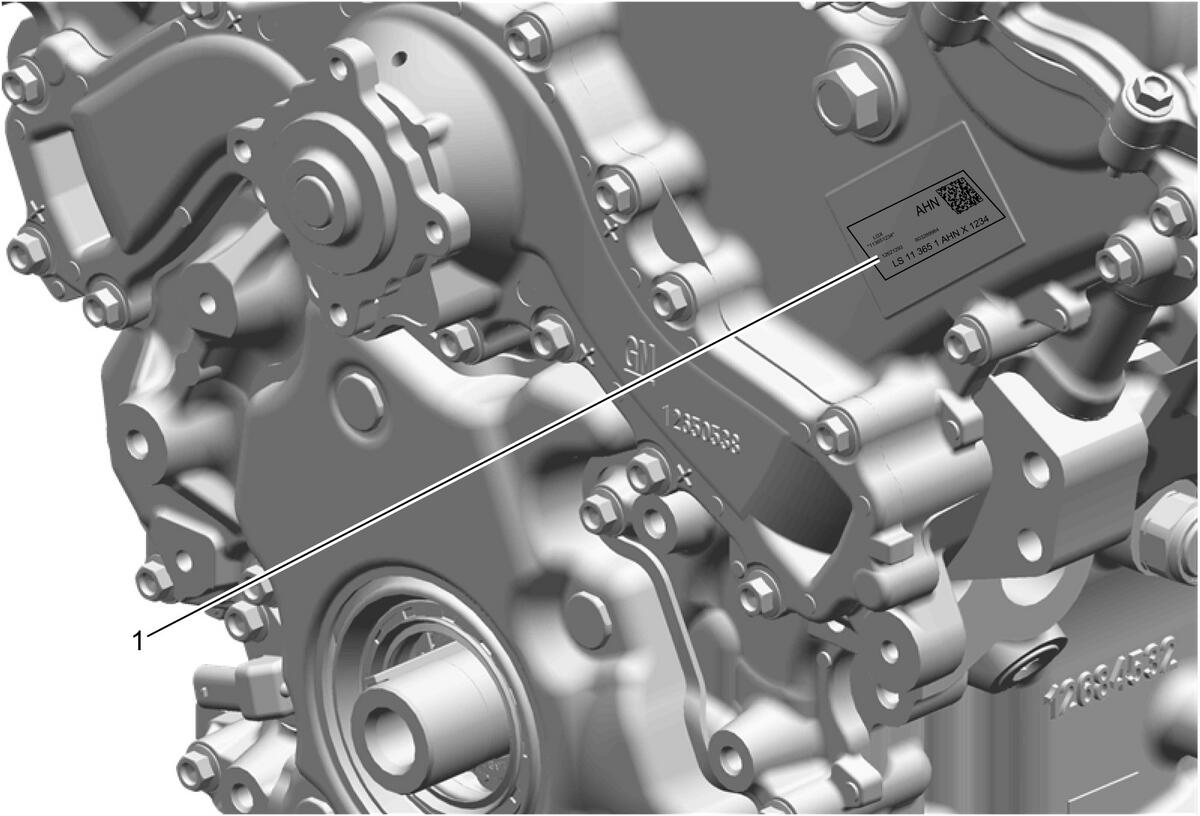

GM5072357Courtesy of GENERAL MOTORS COMPANY

One engine verification label (1) is located on the left side of the engine front cover below the exhaust camshaft position sensor. This label is used in engine and vehicle assembly plants and is not intended to be permanent. If it is missing refer back to the engine block VIN pad for the permanent ID.

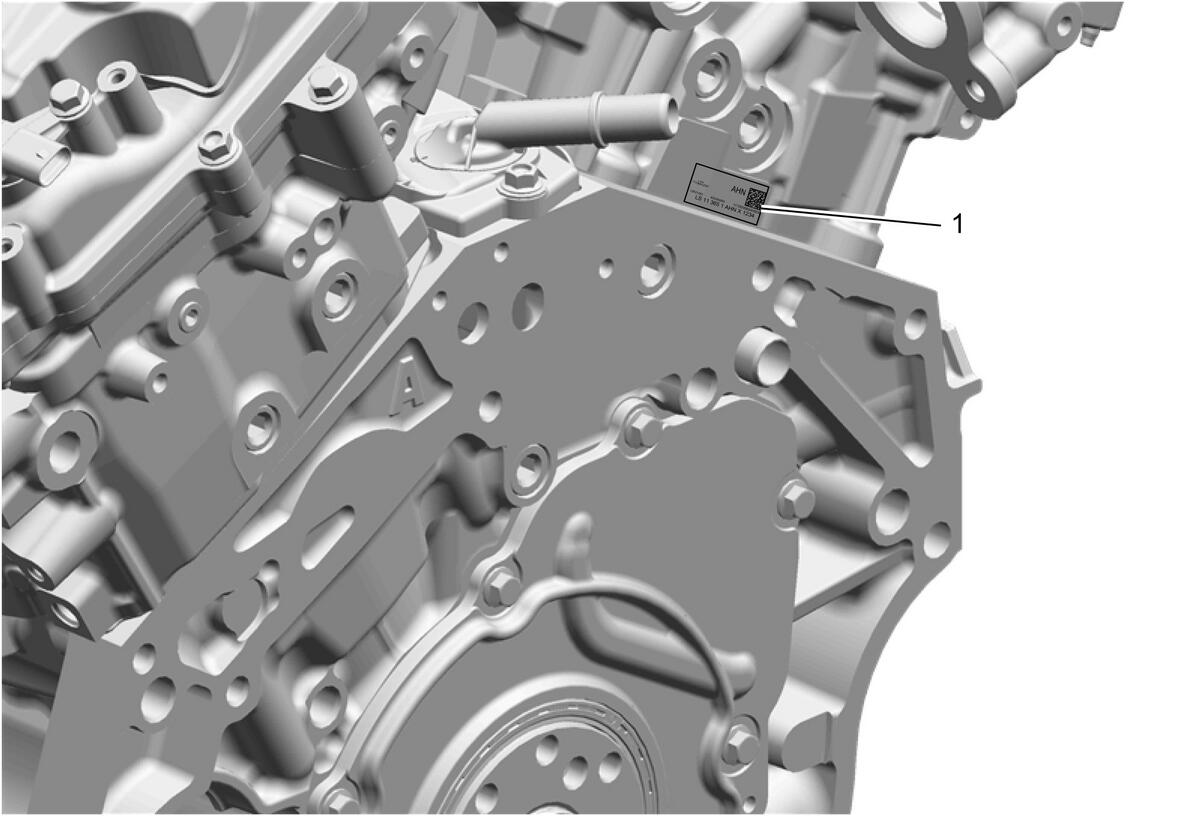

GM5072358Courtesy of GENERAL MOTORS COMPANY

Another engine verification label (1) is located on the rear of the right cylinder head. This label is used in engine and vehicle assembly plants and is not intended to be permanent. If it is missing refer back to the engine block VIN pad for the permanent ID.
