Engine Traceability Label

WARNING: This page is about a different variant/trim than selected.

The engine traceability label is located in two places on the engine and consists of the broadcast code, bar code and sequence number. This label is used in engine and vehicle assembly plants and is not intended to be permanent. If it is missing refer back to the engine block VIN pad for the permanent ID.

GM5072354Courtesy of GENERAL MOTORS COMPANY

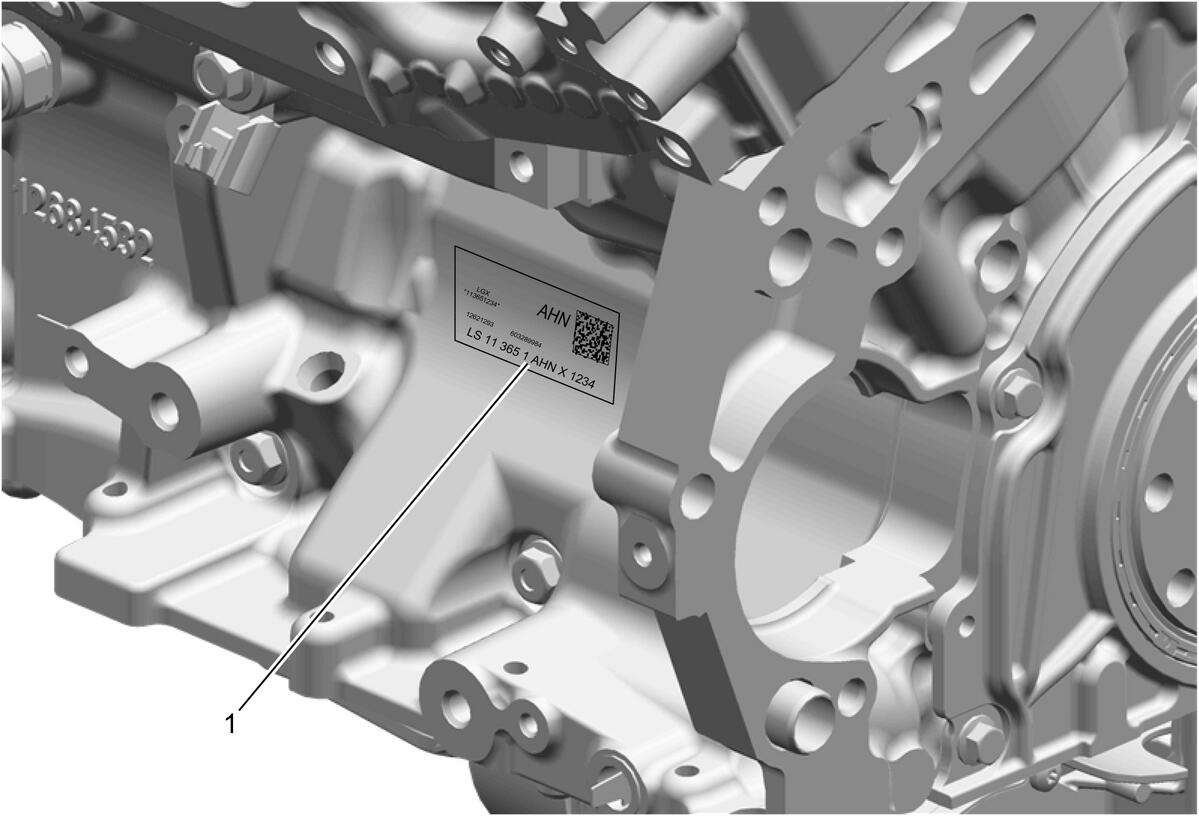

One engine traceability label (1) is located on the left rear side of the engine block. This label is used in engine and vehicle assembly plants and is not intended to be permanent. If it is missing refer back to the engine block VIN pad for the permanent ID.

GM5072356Courtesy of GENERAL MOTORS COMPANY

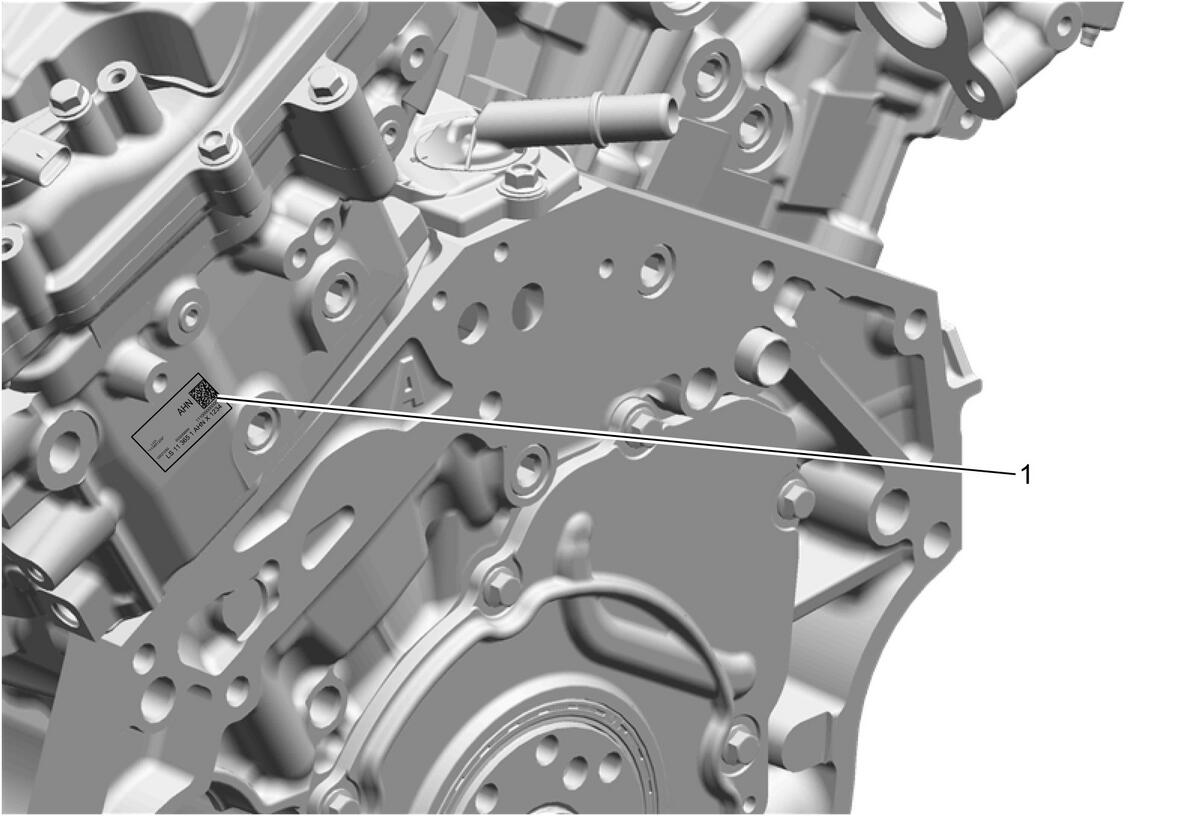

Another engine traceability label (1) is located on the rear of the left cylinder head. This label is used in engine and vehicle assembly plants and is not intended to be permanent. If it is missing refer back to the engine block VIN pad for the permanent ID.
